● Powered by a 11th-gen Intel Celeron Processor with Windows 11 OS;
● 17-inch 4:3 industrial display, compatible with professional applications;
● WIFI 5 and BT5.0; Supports 4G network connectivity;

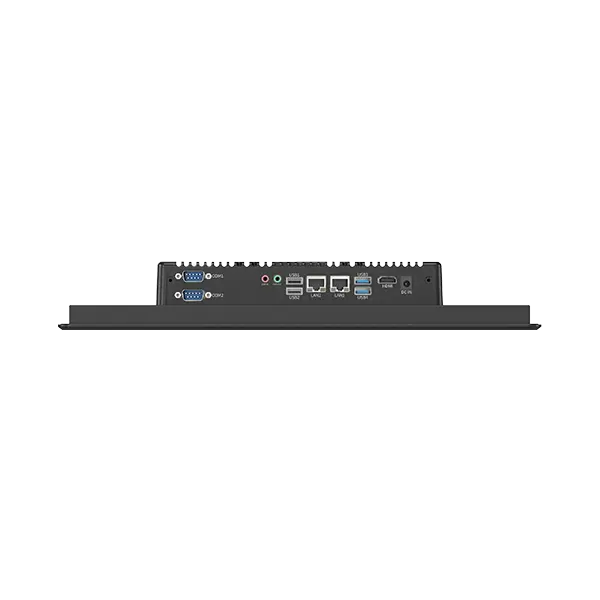

● Multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports;
● Standard PPC-hook assembly accessory; ● VESA holes for wall and desktop mounting;
● Wide voltage input range: 12V to 24V;
● Operational temperature range: -30°C to 70°C;
● Anti-electromagnetic interference; IP65-rated front panel.
N5100
windows 11
17 inch
500cd/㎡
wifi 6
Running 24/7 without
Rich interface extensions
IP65 ● Powered by a 11th-gen Intel Celeron Processor with Windows 11 OS;
● 17-inch 4:3 industrial display, compatible with professional applications;
● WIFI 5 and BT5.0; Supports 4G network connectivity;
● Multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports;
● Standard PPC-hook assembly accessory; ● VESA holes for wall and desktop mounting;
● Wide voltage input range: 12V to 24V;
● Operational temperature range: -30°C to 70°C;
● Anti-electromagnetic interference; IP65-rated front panel.
| industrial Panel pc | |
| Dimension | 401*332*57 mm |
| Weight | TBD |
| Product Color | Black |
| CPU | Intel® Celeron® Processor N5100 |
| GPU | Intel UHD |
| Memory | RAM 8GB onboard ROM 128GB |
| Operating System | Windows 11 Pro/IoT/Home |
| Display | Type: LCD Size: 17 inch 4:3 Resolution: 1280*1024 Brightness: 500 cd/㎡ |
| Touch Pannel | 10 PCAP |
| WIFI | WIFI 802.11(a/b/g/n/ac/ax ) 2.4G+5G , supports WIFI6 |
| Bluetooth | BT5.0 |
| 2G/3G/4G | Optional: M. 2 interfaces, USB&PCIE signal compatibility LTE-FDD:B1/3/5/7/8/20 LTE-TDD:B40 WCDMA:B1/5/8 GSM:900/1800 |
| I/O | Standard USB-A USB3.0*2+USB2.0* |
Power interface DC IN 12V-24V Power connector *1 | |
| ∮3.5mm Standard Earphone Jack *1 | |
| RJ45 *2 (10M/100M/1000M adaptive) | |
| DB9 PORT RS232 *2 | |
| HDMI 2.0 Type A *1 | |
| Power Adaptor | AC100V to 240V, 50Hz/60Hz output DC 12V/4A |
| Certification | IP65 Front Panel |
| Rugged Features | Working temperature: -30 °C to 70 °C |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
Various modules and accessories can be selected to meet customers' application in various industries.
