· Android 12/GMS OS and 8GB RAM＋128GB storage
· 8 inch IPS screen, 1920x1200 TFT, 550nits
· 5-point capacitive touch
· Upgrade BT 5.2, fast and more stable
· High speed 4G LTE and dual-band Wi-Fi 5
· Optional high performance 2D imager designed to data capture
· Front 5.0MP + Rear 13.0MP, autofocus with flashlight
· Symmetric speakers. More immersive, more clear
· User-friendly buttons designed for efficient action
· Enhanced rugged corners withstand shock and impact
· IP65 Waterproof and Dustproof, MIL-STD-810H certified

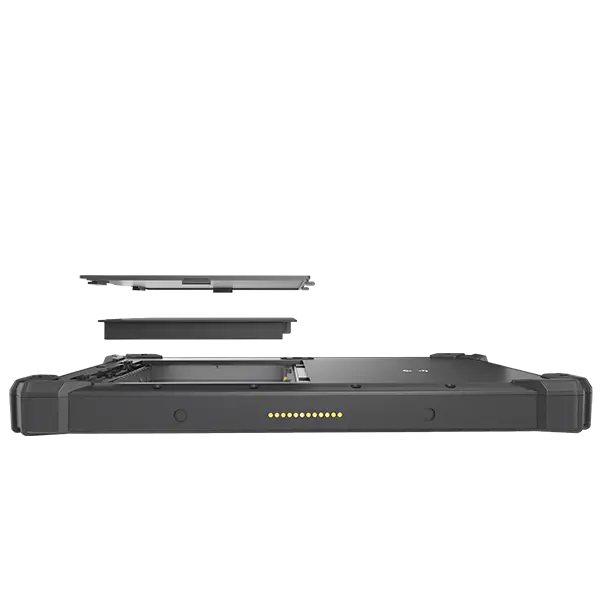

· Removable 10000mAh battery & New battery-free working mode
android
ip67
gps
high capacity
bluetooth
camera
3g4g
wifi
2d
nfc
| Tech Spec | |

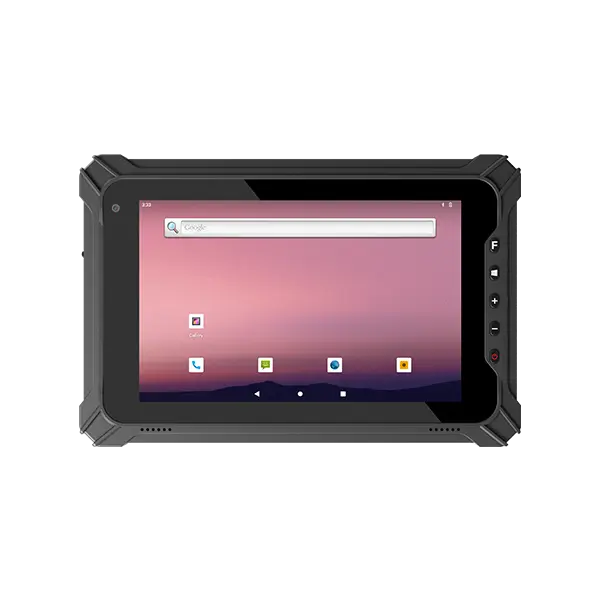

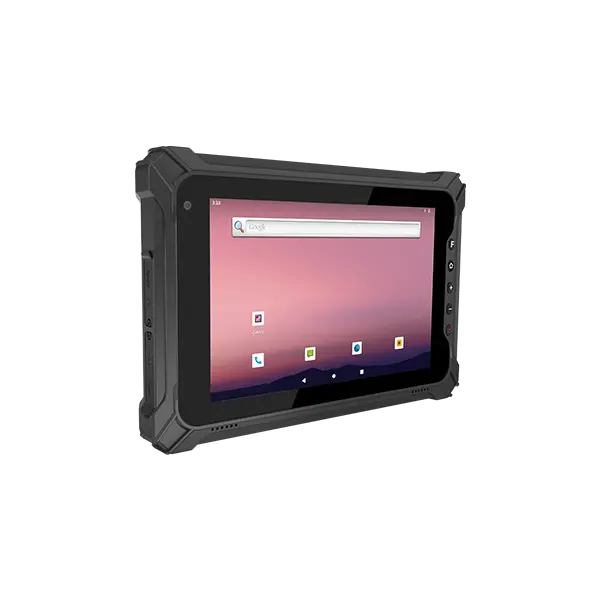

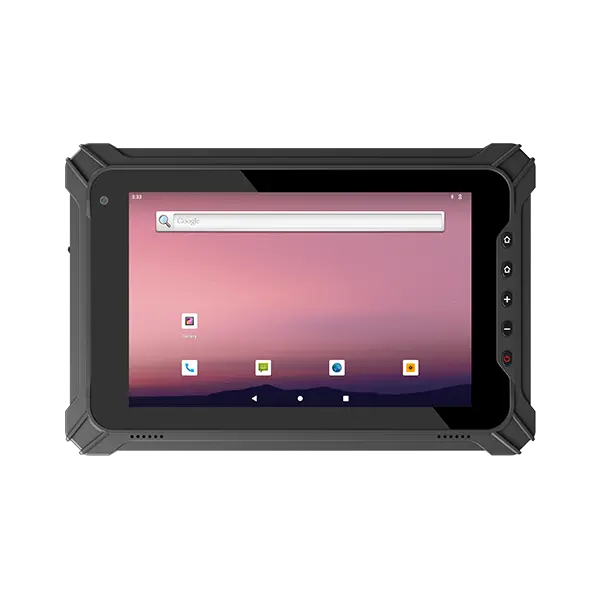

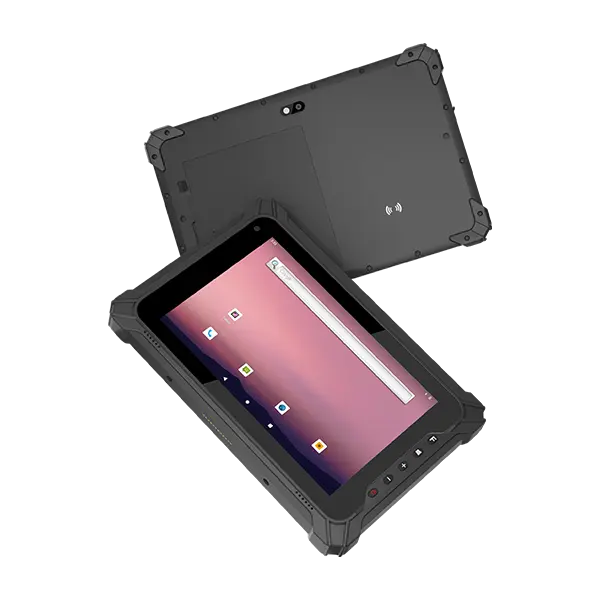

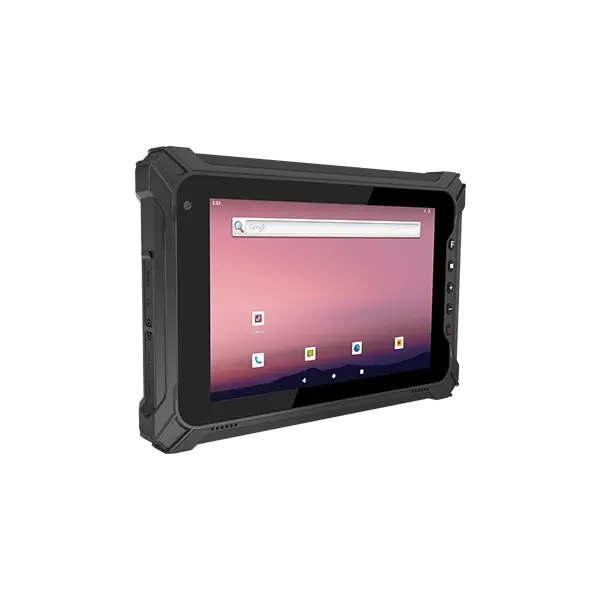

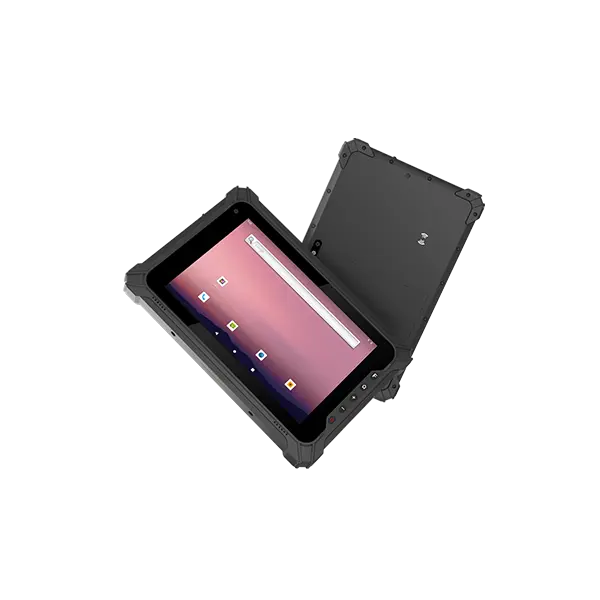

| Product Form | 8 inch Rugged Tablet |
| Dimension | 236.7*155.7*20mm |
| Weight | 910g |
| Product Color | Black |
| CPU | MT6789 octa-core, 2*A76 2.2GHz |
| GPU | ARM G57 MC2 |
| Memory | RAM 8GB LPDDR4 ROM 128GB Emmc |
| Operating System | Android 12 / GMS |
| Display | Type: TFT Size: 8 inch 16:10 Resolution: 1200*1920 Brightness: 550cd/㎡ |
| Touch Pannel | 5 points capacitive screen, G+G, hardness 7H |

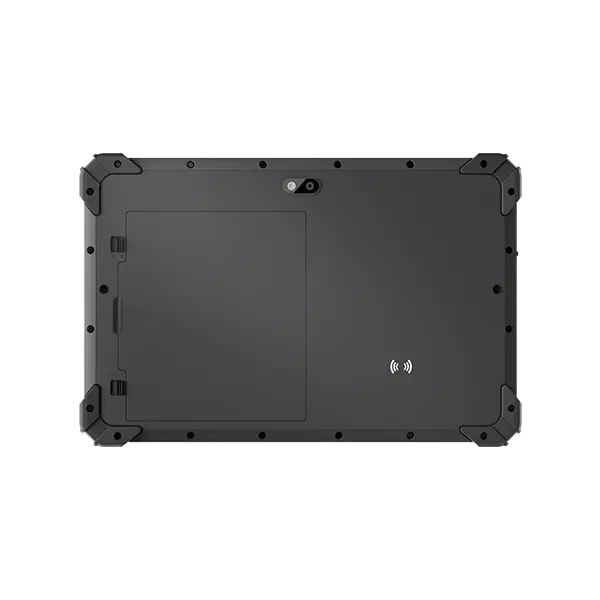

| Camera | Front 5.0MP Rear 13.0MP |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Customizable *1 (Barcode Scanning) Home Key*1 |
| Indicator | Indicator lights * 2, R/G dual-color lights. 1. During charging, they will be constantly red. 2. When fully charged, they will display a constant green light. 3. When the battery is low, the red light will flash. |
| Speaker | Built-in 8Ω/1W *2 dual speakers |
| Microphone | Single MIC |
| Sensors | G_sensor, Geomagnetic sensor (compass), Gyro Sensor, light sensor |

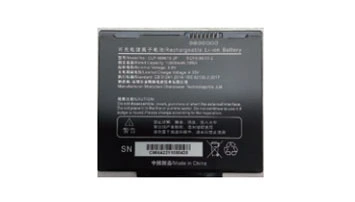

| Battery (Tablet) | Removable Lithium-ion polymer battery 10000mAh/3.8V 9 hours |
| RTC battery | Built-in rechargeable 3V/1mAh lithium-ion battery. |
| WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI |
| Bluetooth | Bluetooth BT5.1 (BLE) class1 |
| 4G | GSM: B2/3/5/8 WCDMA:B1/2/5/8 FDD:B1/2/3/4/5/7/8/17/20/28A/28B TDD:B38/39/40/41 |
| GPS | Support: GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS Cold start time:<60 seconds |

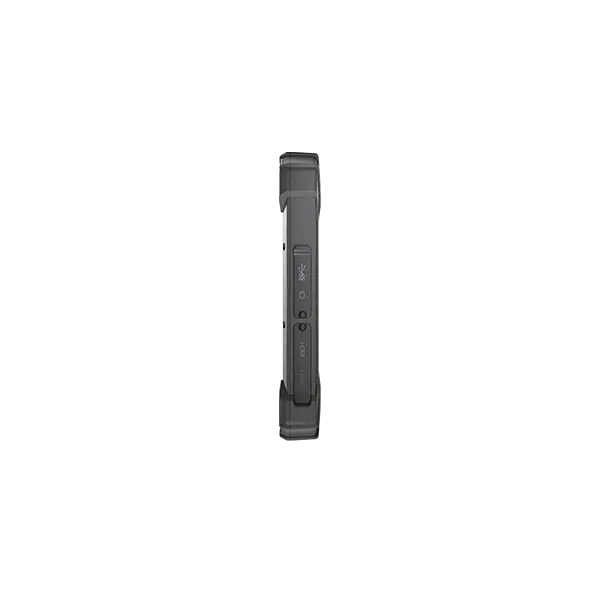

| I/O Interface | Standard USB 2.0 *1, Type C *1 (Data & Charing) |
| ∮3.5mm Standard earjack *1 | |
| SIM card *2 | |
| TF card *1，Max: 512GB | |

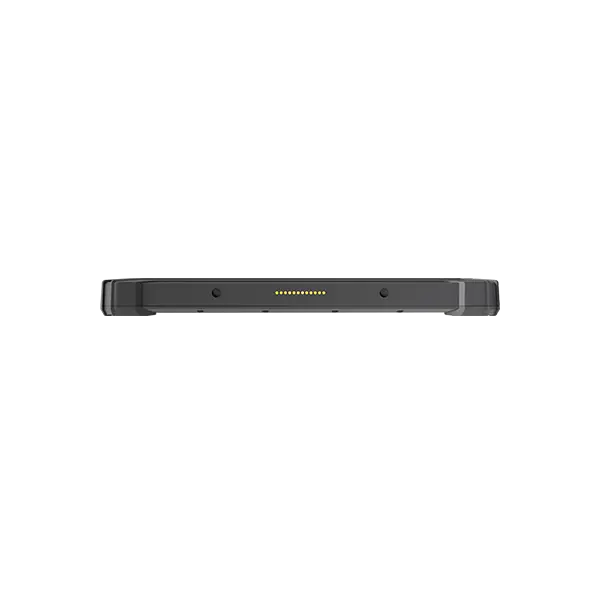

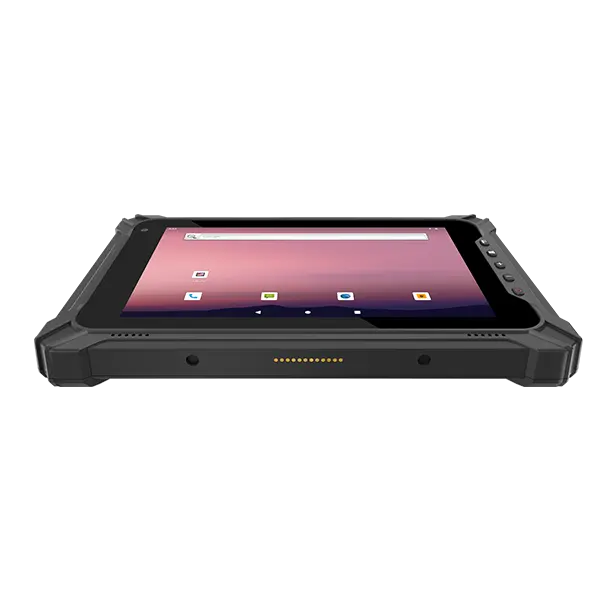

| 12PIN Pogo Pin *1 | |

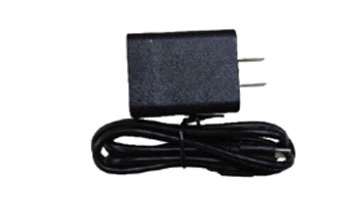

| Adapter | USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W, maximum 9V/2A, European standard, CE approval |
| Type-C cable | Type-C cable |
| Rugged Features | MIL-STD-810H: 1.22m drop |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE | |
| CCC | |
| MIL-STD-810H | |
| FCC | |
* Please be aware all technical data, specification and performance figures subject to change without notice.

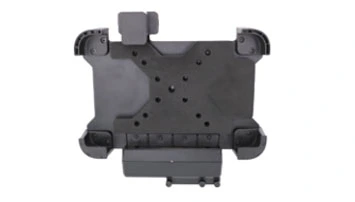

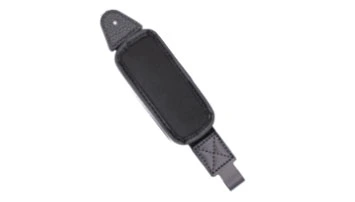

Various modules and accessories can be selected to meet customers' application in various industries.
Various modules and accessories can be selected to meet customers' application in various industries.
