● Equipped with Rockchip RK3568 Processor, low-power consumption;
● Android 12+ Linux dual systems, compatible with a variety of applications;
● Standard WIFI 5, BT5. 0, optional 4G and data radio communication modules;
● Peak brightness up to 700 nits, offering unparalleled clarity in bright outdoors;
● GPS/GLONASS/Beidou and RTK high-precision positioning systems are available;
● Multiple interface options covering AHD/TNC/SMA/Deutsch interfaces;
● Supports 6V to 36V wide voltage input, catering to diverse vehicle charging needs;
● IP65-rating, compliant with ISO16750 road vehicle performance testing standards.
RK3568
Android 12+Linux
10.1-inch
700cd/㎡
wifi 5
GPS/GLONASS/
Beidou/RTK
Rich interface
extensions
IP67 ● Equipped with Rockchip RK3568 Processor, low-power consumption;
● Android 12+ Linux dual systems, compatible with a variety of applications;
● Standard WIFI 5, BT5. 0, optional 4G and data radio communication modules;
● Peak brightness up to 700 nits, offering unparalleled clarity in bright outdoors;
● GPS/GLONASS/Beidou and RTK high-precision positioning systems are available;
● Multiple interface options covering AHD/TNC/SMA/Deutsch interfaces;
● Supports 6V to 36V wide voltage input, catering to diverse vehicle charging needs;
● IP65-rating, compliant with ISO16750 road vehicle performance testing standards.
| Tech Spec | |
| Dimension | 282*181*31mm |
| Weight | TBD |
| Product Color | Black |
| CPU | Standard RK3568 |
| GPU | Mali-G52-2EE |
| Memory | RAM 4GB ROM 64GB |
| Operating System | Android 12 / Debian 11 |

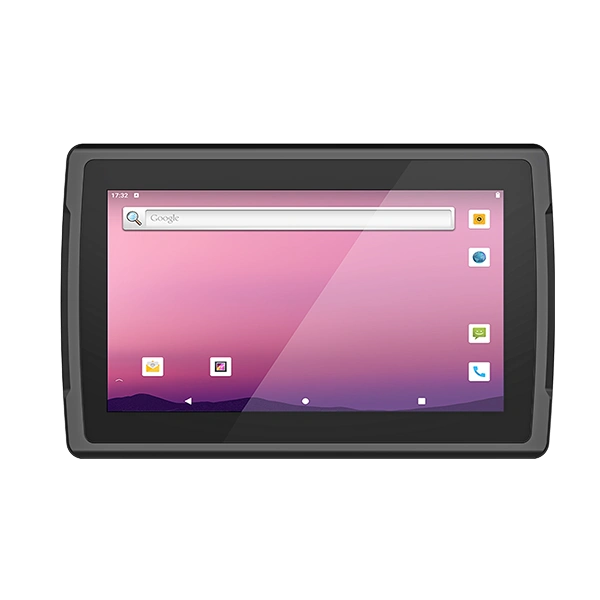

| Display | Type: HD Size: 10.1-inch 16:10 Resolution: 1280*800 IPS Brightness: 700cd/㎡ Optional： LVDS 10.1 Landscape screen ； Resolution：1024*600dpi ； Brightnes：750/㎡ |
| Touch Pannel | Asahi Glass Cover, 5-Point Capacitive Screen, Hardness of 7H |
| Buttons | Power *1 Customizable *1 (F1 Key) Customizable *1 (F2 Key) |
| Indicator Light (Optional) | Power-on indicator (No light when it is powered, turn red when it is booted up) |
| Wide-Voltage Power Supply | 6-36V (DC input, supports ignition detection) |
| ACC | Supports delayed power on/off switch |
| Speaker | 3W Single Speaker |
| Microphone | Single MIC |
| RTC | Built in 2032 RTC dry battery |
| G-Sensor | Built in |
| WIFI | Band: WIFI 802.11(a/b/g/n/ac) Frequency: 2.4G+5.0G (5.1G+5.8G) Dual-band WIFI Others: Supports AP seamless roaming |
| Bluetooth | BT 5.0 |
| 4G (Optional) | LTE Cat 4 WCDMA：B1+5+8 TDD：B38+40+41 FDD：B1+3+5+7+8+20+28 |
| GPS (Optional) | Supports GPS (L1 1.575GHz C/A code), BeiDou (B1 1.561GHz), GLONASS (L1 1.602GHz) |
| Data Radio (Optional) | Frequency range: 410-470MHz |

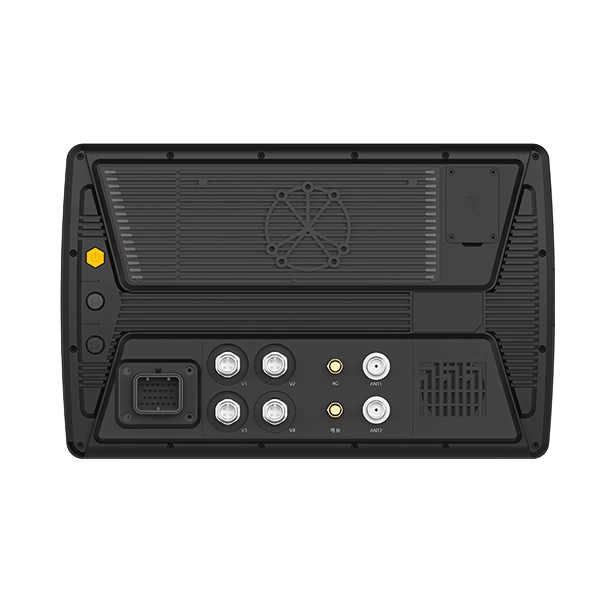

| Interfaces | SIM Card Slot MICRO-SIM x 1 |
| TF Card Slot MICRO-SIM x 1 | |
| Standard USB-A Port / Data Transfer USB 2.0*1, USB-A Port, HOST Data Transfer | |

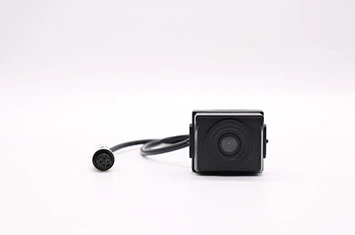

Video Input (Optional) AHD*4 GX12 4-Pin Connector*4 | |
| Antenna Interfaces (Optional) TNC*2 SM*2 | |
| 26-PIN Deutsch Interfaces (Optional in the Solution) | |
| Rugged Features | Working temperature: -20 °C to 60 °C)，Optional -30°C to 70°C(LVDS ) |
| Storage temperature: -30 °C to 70 °C，Optional -40 °C to 85 °C(LVDS) | |
| ±6kV contact discharge, ±10kV air discharge | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE | |
| CCC | |
| MIL-STD-810H | |
| FCC | |
| ISO16750 | |

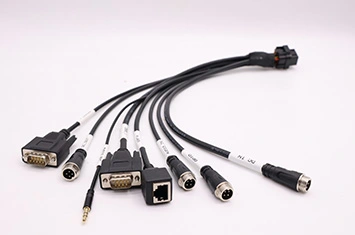

| Optional Accessories | 26-PIN Deutsch Interface Functional Bus (Customized according to the solution) |
| Bracket RAM 38*30mm ball head | |

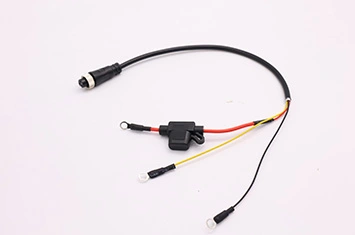

| ACC Power Cable | |
| DC Conversion Cable | |

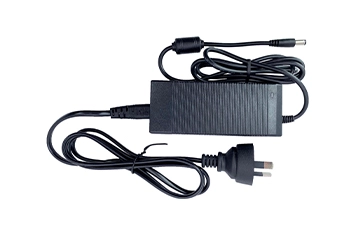

Power Adapter 12V4A DC φ4.0 adapter | |
| 4G External Suction Cup Antenna | |
| Data Radio External Suction Cup Antenna | |

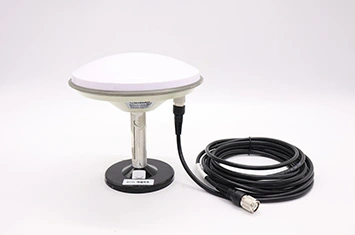

| RTK Mushroom Antenna (TNC Connector) | |
* Please be aware all technical data, specification and performance figures subject to change without notice.
Various modules and accessories can be selected to meet customers' application in various industries.
