●Powered by an 11th generation Intel Celeron processor, equipped with Ubuntu operating system;
●Full 10.1-inch HD display, the lP65-rated front panel protects against water and dustingress;
●Excellent environmental adaptability, anti-electromagnetic interferenceand anti-static capabilities;
●Fanless design, using large-area uniform heating fin, running 24/7 withoutaffecting reliability and service life;
●Rich interfaces, including multiple USB/LAN/HDMl and other l/0 ports,easily meet various scenario requirements;
●Dual-band Wi-Fi, Bluetooth 5.0, and expandable 4G (M.2 interface),multiple network connection modes,
●Wide voltage and temperature design, can operate normally even under externalvoltage fluctuations or in extremely hot or cold conditions;
●Standard PPC mounting hook component, easy to install and supports variousinstallation methods such as embedded and wall-mounted.
N5100
700cd/㎡
800*1280
wifi
Running 24/7 without
Rich interface extensions
storage expansion
IP65
10.1 inch.png ●Powered by an 11th generation Intel Celeron processor, equipped with Ubuntu operating system;
●Full 10.1-inch HD display, the lP65-rated front panel protects against water and dustingress;
●Excellent environmental adaptability, anti-electromagnetic interferenceand anti-static capabilities;
●Fanless design, using large-area uniform heating fin, running 24/7 withoutaffecting reliability and service life;
●Rich interfaces, including multiple USB/LAN/HDMl and other l/0 ports,easily meet various scenario requirements;
●Dual-band Wi-Fi, Bluetooth 5.0, and expandable 4G (M.2 interface),multiple network connection modes,
●Wide voltage and temperature design, can operate normally even under externalvoltage fluctuations or in extremely hot or cold conditions;
●Standard PPC mounting hook component, easy to install and supports variousinstallation methods such as embedded and wall-mounted.
| Embedded industrial PC | |
| CPU | Intel®Celeron N5100, up to 2.80GHz |
| Memory | RAM: 8GB ROM: 128GB (M.2 interface，SATA III signal) |
| USB | 2 x USB3.0, 2 x USB2.0 |
| OS support | Ubuntu22.04.4 |
| System Parameter | |
| CPU | Intel® Celeron N5100 CPU, up to 2.80GHz |
| Chipset | Intel UHD |
| RAM | 4GB/8GB/16GB |
| Storage | 64GB/128GB/256GB/512GB |
| I/O | Standard USB-A USB3.0*2 +USB2.0*2 Power interface DC IN 12V-24V Power connector *1" ∮3.5mm Standard Earphone Jack *1 RJ45 *2 DB9 PORT RS232 *2 HDMI 2.0a *1 DB9 PORT RS232 *2 (Can be changed through the jumper cap on the board：RS485*1，RS232*1) |
| Expansion Slot | Optional 1 x SATA, 1 x TPM |
| OS | Linux Ubuntu22.04.4 |
| Display | |
| Size | 10.1" LCD 10 : 16 |
| Resolution | 800 x 1280 |
| Brightness | 700cd/m2 |
| Touch Pane | 10 point capacitive touch screen |
| Power | |
| DC | AC100V ~ 240V, 50Hz/60Hz, DC 12V/4A |
| Product Form | |

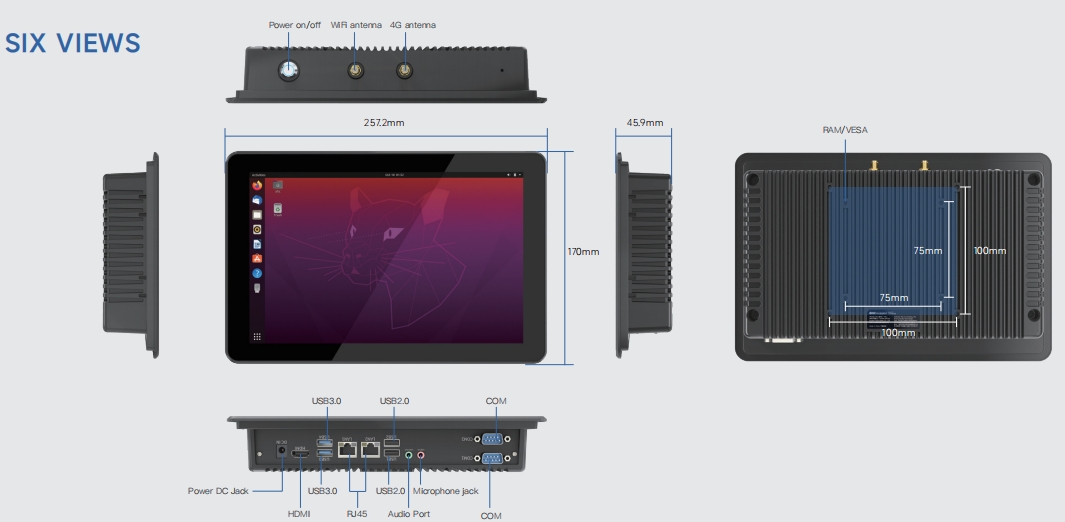

| Dimension | 257.2 x 170 x 45.95 mm |
| Device Color | black |
| Weight | 1.2Kg |
| Reliability | |
| IP Code | IP65 of front panel |
| Operate Temperature | -20℃ to 60℃ |
| Store Temperature | -30℃ to 70℃ |
| Humidity | 95% Non-Condensing |
Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
Various modules and accessories can be selected to meet customers' application in various industries.
