Intel Core i7-1255U 21.5 inch Windows industrial Panel pc P21A

Name: Intel Core i7-1255U 21.5 inch Windows industrial Panel pc P21A
Brand: Emdoor Information Co., Ltd.

● Powered by 12th-generation Intel® Core™ i5-1235U/i7-1255U Processors, equipped with Windows 11 operating system

● 21.5-inch flat capacitive touch panel with high impact resistance

● Wi-Fi 6, Bluetooth 5.1, and expandable 4G (M.2 interface), multiple network connection modes

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Rich interfaces, including multiple USB/RJ45/RS232/HDMI and other I/O ports, can easily meet various scenario requirements

● Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

Get A Quote PDF Download

i5-1235U/i7-1255U

windows 11

21.5 inch

250cd/㎡

1920*1080

wifi 6

Running 24/7 without

Rich interface extensions

storage expansion

IP65

Features of Intel Core i7-1255U windows 21.5 inch Industrial Panel PC P21A

● Powered by 12th-generation Intel® Core™ i5-1235U/i7-1255U Processors, equipped with Windows 11 operating system

● 21.5-inch flat capacitive touch panel with high impact resistance

● Wi-Fi 6, Bluetooth 5.1, and expandable 4G (M.2 interface), multiple network connection modes

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Rich interfaces, including multiple USB/RJ45/RS232/HDMI and other I/O ports, can easily meet various scenario requirements

● Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

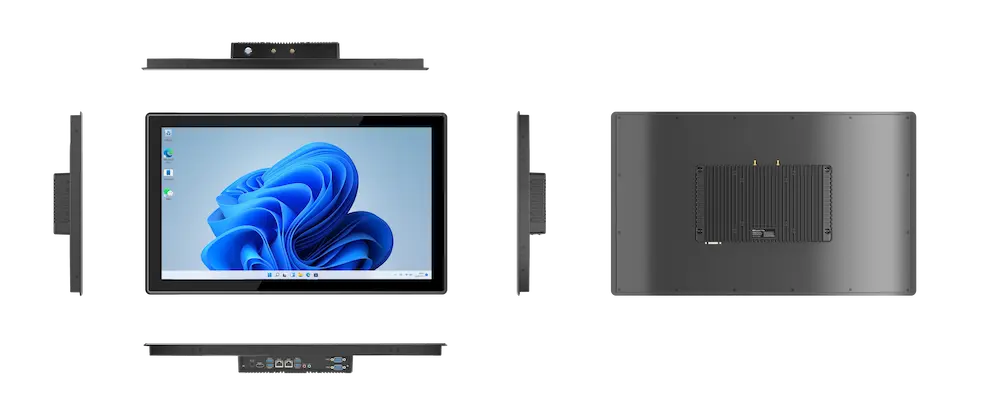

Six Views of Intel Core i7-1255U windows 21.5 inch Industrial Panel PC P21A

Industrial Panel PC

Specification of Intel Core i7-1255U windows 21.5 inch Industrial Panel PC P21A

Industrial Panel PC P21A
Dimension	537.02 x 324.02 x 57.60 mm
Weight	5.05 kg
Product Color	Black
CPU	i5-1235U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 0.9GHz~4.4GHz （Optional i7-1255U）
GPU	Intel® Iris® Xe Graphics eligible
Memory	RAM 8GB onboard ROM 128GB （Optional 256/512GB）
Operating System	Windows11（HOME PRO IOT)
Display	Type: LCD Size: 21.5 inch 16 : 9 Resolution: 1920x1080 Brightness: 250 cd/㎡
Touch Pannel	10 PCAP

WIFI	WIFI 802.11(a/b/g/n/ac/ax ) 2.4G+5G , support WIFI6
Bluetooth	BT5.1
2G/3G/4G	Optional：4G LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
I/O	Type A USB USB3.0*4
	Power interface DC 19V *1 （Support 12--24V）
	∮3.5mm Standard Earphone Jack *1
	RJ45 *2 (10M/100M/1000M adaptive)
	DB9 PORT RS232 *2
	HDMI *1
	M2 *1 M.2 2280 standard interface（Support SATAⅢ/PCIE3.0X4 signal）
Power Adaptor	AC100V ~ 240V、50Hz/60Hz output DC 19V/3.42A

Certification	IP65 Front Panel
Rugged Features	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing

*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
