EM-I88N: 8 inch Rugged Tablet PC

·Equipped with the latest Intel Alder Lake Processor N100

·Windows 10 OS, unleash robust production power

·Equipped with a 5MP front camera and an 8MP rear camera

·Standard GPS+Glonass, optional GPS+Beidou for accurate positioning

·Optional 2D barcode scanning engine supports efficient decoding

·Optional NFC module, supports mainstream NFC card reading applications

Rugged Tablet PC
Rugged Tablet PC
Rugged Tablet PC
Rugged Tablet PC
Rugged Tablet PC
Rugged Tablet PC
windows windows
IP65 IP65
GNSS
GNSS
Removable battery Removable battery
Bluetooth Bluetooth
2D(optional) 2D(optional)
NFC(optional) NFC(optional)
4G
4G
wifi wifi
camera camera

Features of EM-I88N: 8 inch Rugged Tablet PC Intel Alder Lake N100 Windows 10


·Equipped with the latest Intel Alder Lake Processor N100

·Windows 10 OS, unleash robust production power

·Support 5-point capacitive touch and stylus functionality

·Built-in 2.4GHz and 5.8GHz dual-band Wi-Fi 6

·Bluetooth 5.2 with wider range and faster transfer speeds

·Equipped with 3G/4G module, outdoor signal is still stable

·With USB 3.0, Type-C, and HDMI ports,connect various peripherals

·Equipped with a 5MP front camera and an 8MP rear camera

·Standard GPS+Glonass, optional GPS+Beidou for accurate positioning

·Optional 2D barcode scanning engine supports efficient decoding

·Optional NFC module, supports mainstream NFC card reading applications

·Featured a back panel made of PC material with a TPU frame

·Brand-new cooling system with thermal conductive materials

·IP65-rated dust and water resistance,MIL-STD-810H certified

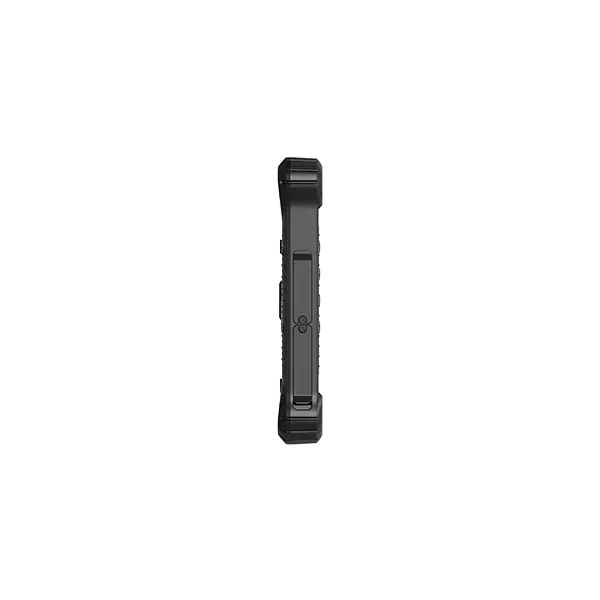

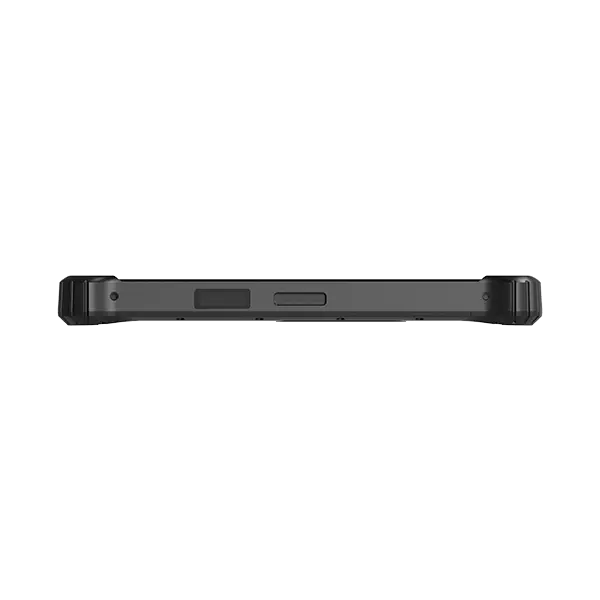

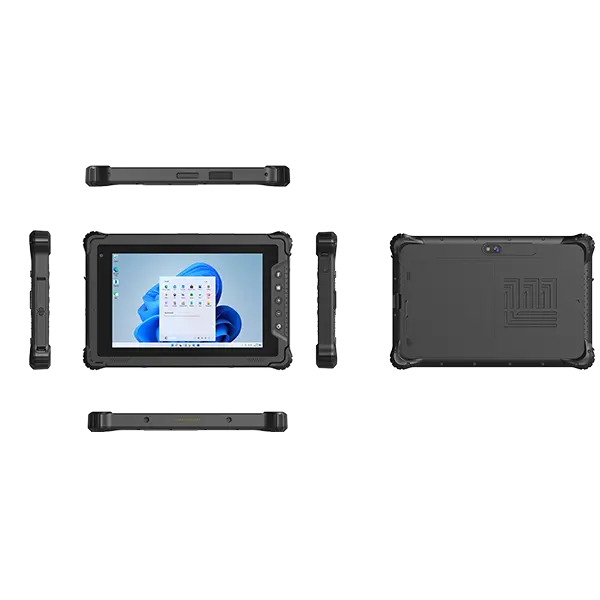

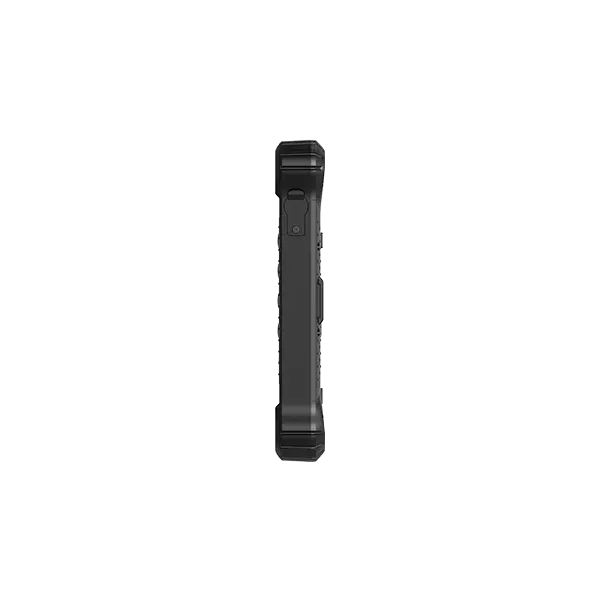

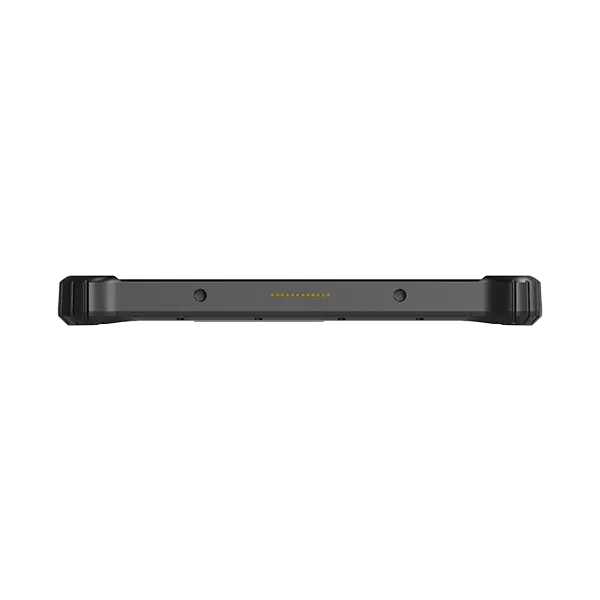

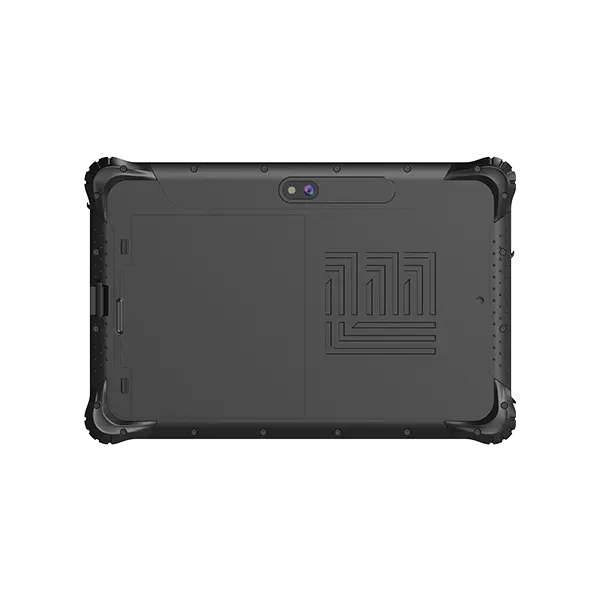

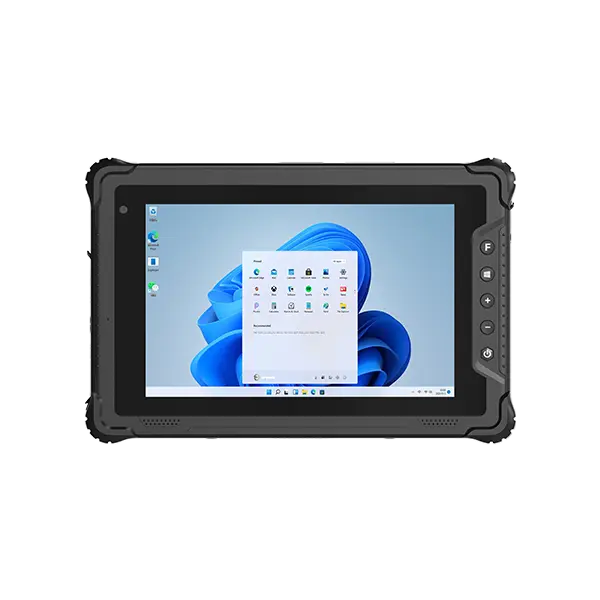

Six Views of EM-I88N: 8 inch Rugged Tablet PC Intel Alder Lake N100 Windows 10


Rugged Tablet PC

Specification of EM-I88N: 8 inch Rugged Tablet PC Intel Alder Lake N100 Windows 10


Tech Spec
Product Form8-inch Vehicle PC
MaterialPC+TPU
Dimensions236.7*155.7*20.8mm
Weight
Product ColorCaesious
CPUIntel Alder LAKE N100
GPUIntel® UHD Graphics
MemoryRAM 8GB
ROM 128GB
Operating SystemWindows 10 Home
DisplayType: IPS
Size: 8 inch   16:10
Resolution: 1200*1920
Brightness: 550cd/㎡
Touch Pannel5-Point Capacitive Screen
CameraFront 5.0MP
Rear  8.0MP
ButtonsPower *1 (Yellow)
Volume + Key *1
Volume - Key *1
P1 Key *1 (HOME Key)
F Key *1 (Barcode Scanning, Connected to GPIO)
SpeakerBuilt in 8Ω/1W Waterproof Speaker *2
MicrophoneSensitivity: -42dB, Output Impedance: 2.2kΩ
BatteryRemovable Polymer Lithium-ion Battery
7.6V/5000mAh
hrs (Default 50% Volume, Default 50% Volume Brightness, Play 1080P HD Video)
 RTC3V 1mAH Rechargeable Surface-Mount
G-SensorG-Sensor
WIFIWIFI6 802.11(a/b/g/n/acR2/ax 1x1)  Frequency: 2.4G+5.8G Dual-band WIFI
蓝牙BT5.2
2GNA
3GWCDMA: B1/5/8
4GEURO:
LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD B38/B40/B41
GPSSupports GPS, Glonass; Capture Sensitivity: -140 dBm; Cold Start Time:<50 seconds, Hot Sstart Time: <5 seconds; GPS Frequency: 1575.42MHz
Optional: GPS + BeiDou
2DOptional: Honeywell N3680  Hardware Decoding
Optical Resolution: 5mil
Scanning Speed: 50 scans/s
Supported Barcode Types: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse
NFCOptional: NXP300/NFC 13.56MHz

I/O InterfacesUSB 3.0 *1 (Type A)
Type C *1 (Data & Charing)
∮3.5mm Standard Earphone Jack *1
TF *1
SIM Card *1
DC 12V 4A Power Port  x1 (Male Plug outer diameter 5.5mm)
HDMI 2.0 mini *1
12PIN Pogo Pin *1

AdapterAC100V to 240V, 50Hz/60Hz output DC 12V/4A wall plug
European Standard, with CE Certification
Optional: US Standard, Chinese Standard, UK Standard

Rugged FeaturesMIL-STD-810H: 1.22m drop resistance
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing

CertificationsIP65
CE NB
FCC
RoHS
CCC
MIL-STD-810H
China Energy Conservation Certification
Battery: UN38.3, MSDS, Air and Maritime Reports, IEC62133




*Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.
