10.1'' Linux Ubuntu22.04.4: EM-I17J Rugged Rugged PC

Intel Jasper Lake processor Celeron N5100, Ubuntu OS
10.1 inch IPS screen, 1920x1200 TFT
10-point capacitive touch Communication
Extension interface (3 choose 1, RJ45, DB9, USB Type-A)
Optional high-performance 2D imager designed to data capture
Enhanced rugged corners withstand shock and impact
IP65 Waterproof and Dustproof, MIL-STD-810G certified
Removable 5000mAh battery & New battery-free working mode
Approved ATEX 2/22 Zone explosion-proof certification for use in potentially explosive and hazardous environments
Certified by CECP, significantly improving the energy efficiency ratio and energy saving performance.

Get A Quote PDF Download

bluetooth

high capacity


Features of 10.1'' Linux Ubuntu22.04.4: EM-I17J Rugged Rugged PC

Intel Jasper Lake processor Celeron N5100, Ubuntu OS
10.1 inch IPS screen, 1920x1200 TFT
10-point capacitive touch Communication
Extension interface (3 choose 1, RJ45, DB9, USB Type-A)
Optional high-performance 2D imager designed to data capture
Enhanced rugged corners withstand shock and impact
IP65 Waterproof and Dustproof, MIL-STD-810G certified
Removable 5000mAh battery & New battery-free working mode
Approved ATEX 2/22 Zone explosion-proof certification for use in potentially explosive and hazardous environments
Certified by CECP, significantly improving the energy efficiency ratio and energy saving performance.

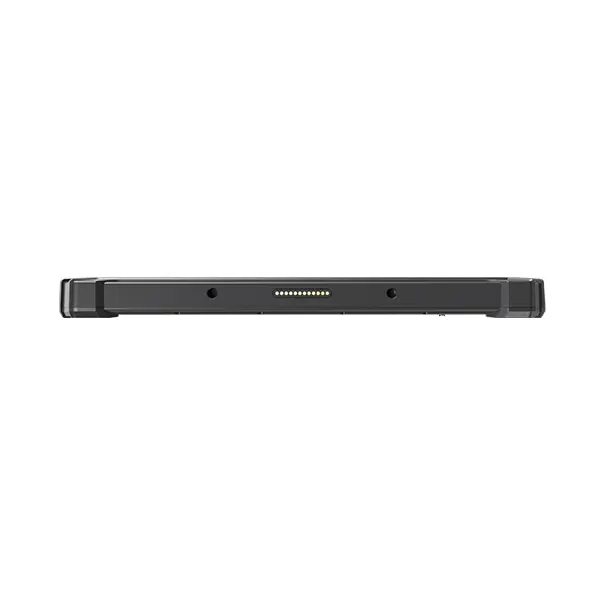

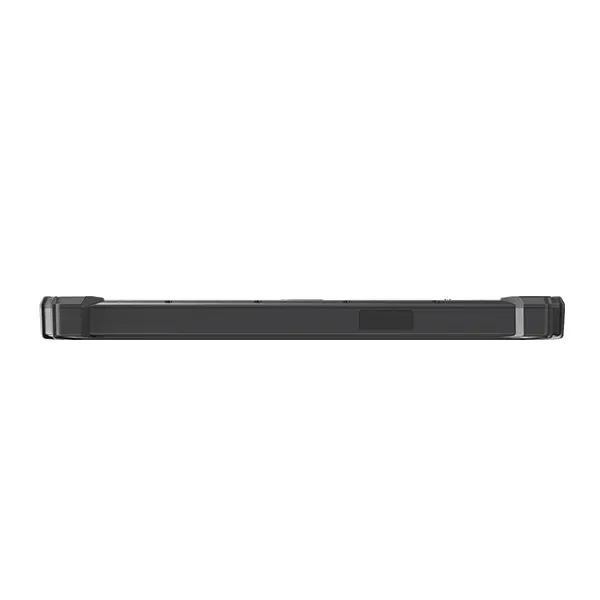

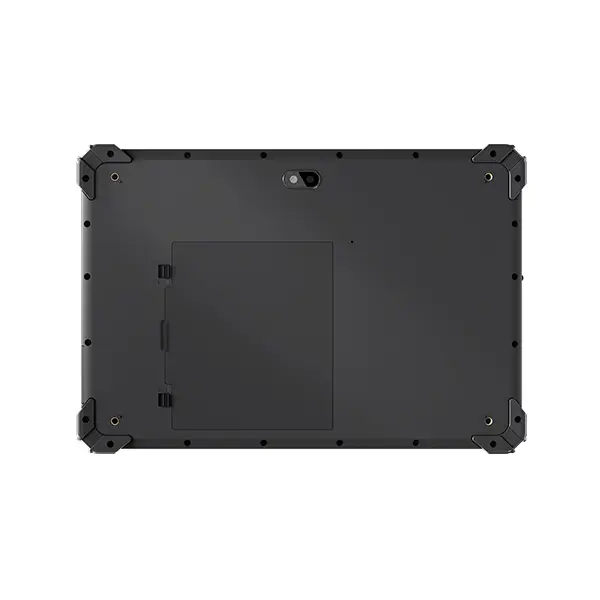

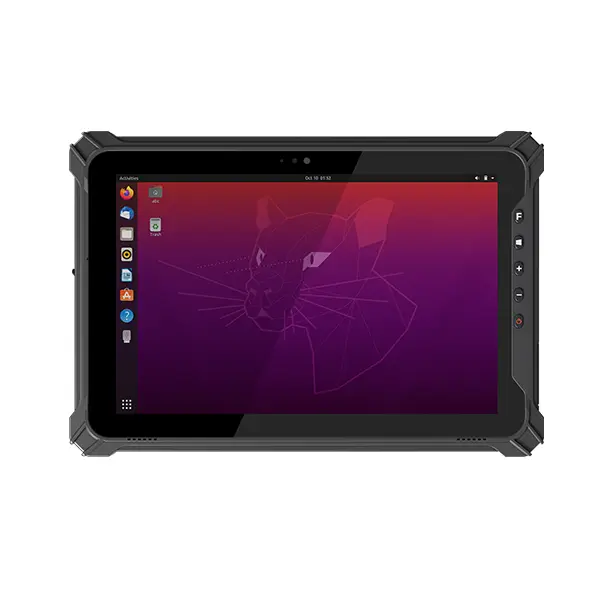

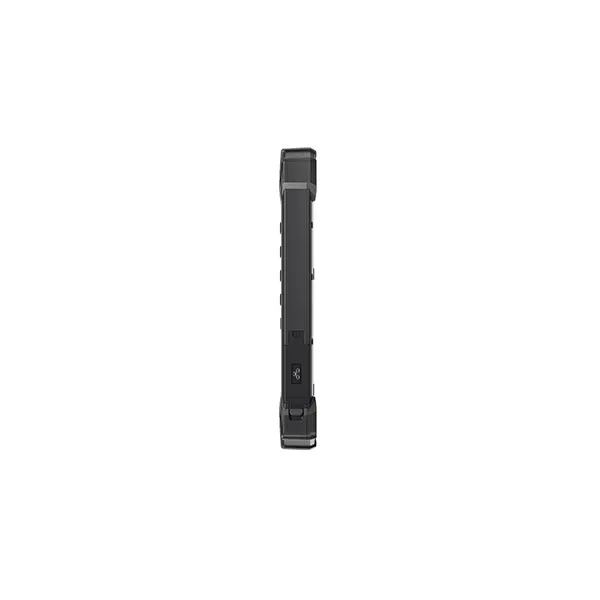

Six views of 10.1'' Linux Ubuntu22.04.4: EM-I17J Rugged Rugged PC

Specifications of 10.1'' Linux Ubuntu22.04.4: EM-I17J Rugged Rugged PC

Basic parameters

Battery

Dimension

274.9 x 188.7 x 23.1mm

Capacity

5000mAh/7.6V

Weight

Device unit 1140g

Type

Removable Li-polymer battery

Device Color

Black

Endurance

8hrs ( 50% volume sounds, 50% screen brightness,
1080P HD video display by default )

LCD

10.1 inch FHD 16:10, 1920×1200, 400 nits，
Optional, HD 16:10, 1280×800, 700 nits

Network connections

Touch Panel

10 point capacitive touch screen

WIFI

802.11 a/b/g/n/ac (2.4G+5.8G)

RTC

Built in polymer lithium ion battery, with capacity of 3V/1mAh

Bluetooth

BT5.0
Transmission distance: 10m

I/O

USB 3.0 Type-A x 1, USB Type-C 3.1 x 1,
Three in one card holder (Micro SD card, up to 512GB; Nano SIM *1),
HDMI 2.0a Mini x 1,
12PIN Pogo Pin x 1,
Φ3.5mm standard earphone jack x 1

LTE FDD: B1/B3/B7/B8/B20, LTE-TDD: B40
WCDMA: B1/B5/B8, GSM: B3/B8

GNSS

Support GPS, Glonass

Extension
interface
(3 choose 1)

RJ45 (10/100M) x 1,
DB9 (RS232) x 1,
USB 2.0 Type-A x 1

Reliability

Operate
Temperature

-20 °C ~ 60 °C

Power

AC100V ~ 240V, 50Hz/60Hz,
Output Type-C 19V/3.42A

Store
Temperature

-30 °C ~ 70 °C
