EM-X15M: 15.6 inch Rugged AI PC Intel windows+AI

Name: EM-X15M: 15.6 inch Rugged AI PC Intel windows+AI
Brand: Emdoor Information Co., Ltd.

Intel Core Ultra Processor The Intel® Core™ Ultra processor With a dedicated AI engine (NPU) Delivering efficient AI power

Intel® Arc™ Graphics Intel® Arc™ integrated graphics With Xe LPG architecture Dedicated-level performance

Windows + AI Windows 11 OS Dual Memory/Dual Storage Slots Unleash seamless productivity

Thunderbolt 4 Interface High-speed Thunderbolt 4 interface HDMI 2.0, USB, RJ45, RS232,etc. Seamless integration of multiple devices

High-Capacity Dual-Battery 56Wh + 14.4Wh dual battery Large battery is removable Switchable Modes for Versatility

Get A Quote

windows

wifi

4850mah

ip65

gps

fingerprint

nfc

Bluetooth

camera

Features of EM-X15M: 15.6 inch Rugged AI PC Intel windows+AI

Intel Core Ultra Processor The Intel® Core™ Ultra processor With a dedicated AI engine (NPU) Delivering efficient AI power

Intel® Arc™ Graphics Intel® Arc™ integrated graphics With Xe LPG architecture Dedicated-level performance

Windows + AI Windows 11 OS Dual Memory/Dual Storage Slots Unleash seamless productivity

Thunderbolt 4 Interface High-speed Thunderbolt 4 interface HDMI 2.0, USB, RJ45, RS232,etc. Seamless integration of multiple devices

High-Capacity Dual-Battery 56Wh + 14.4Wh dual battery Large battery is removable Switchable Modes for Versatility

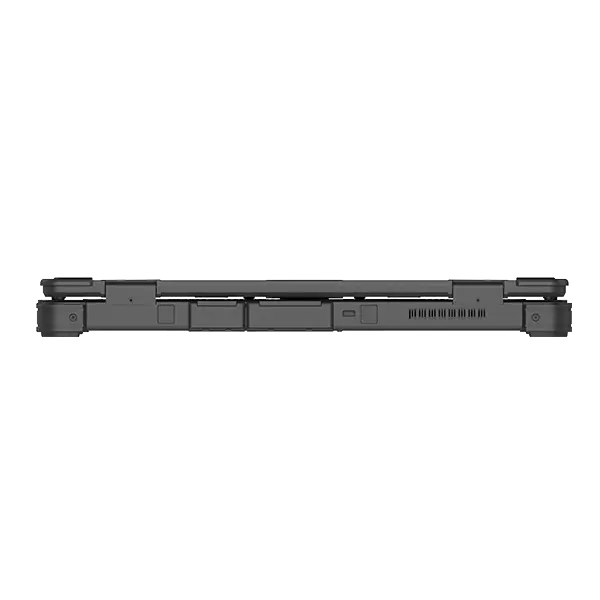

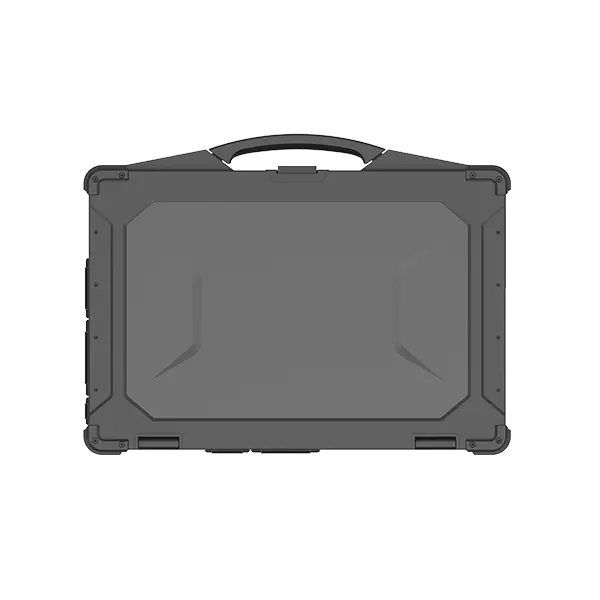

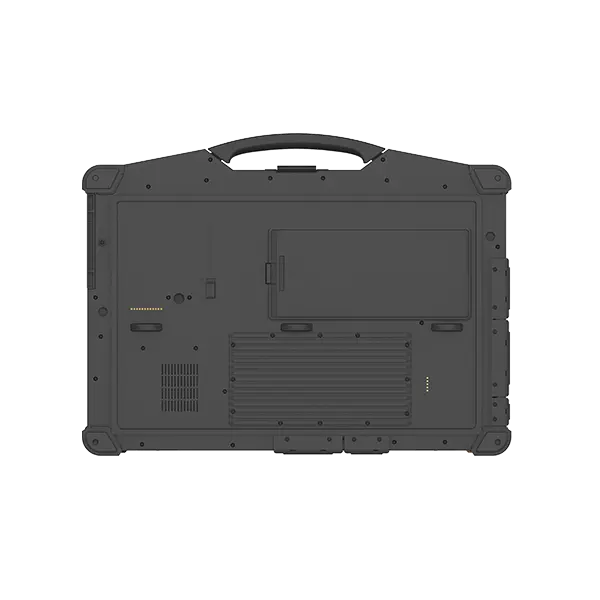

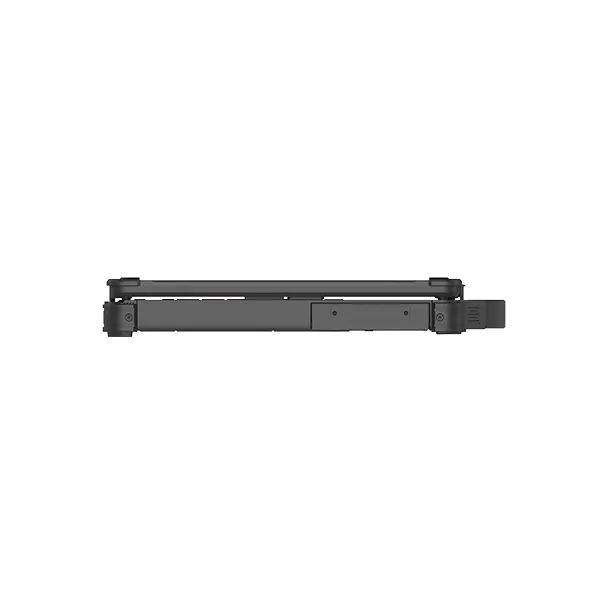

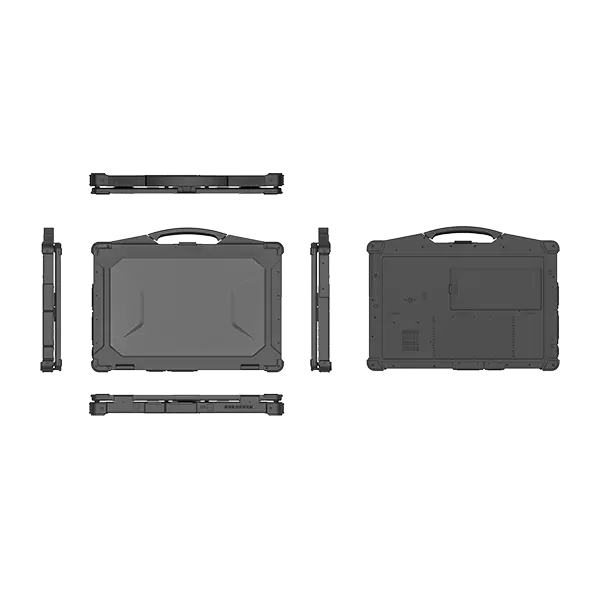

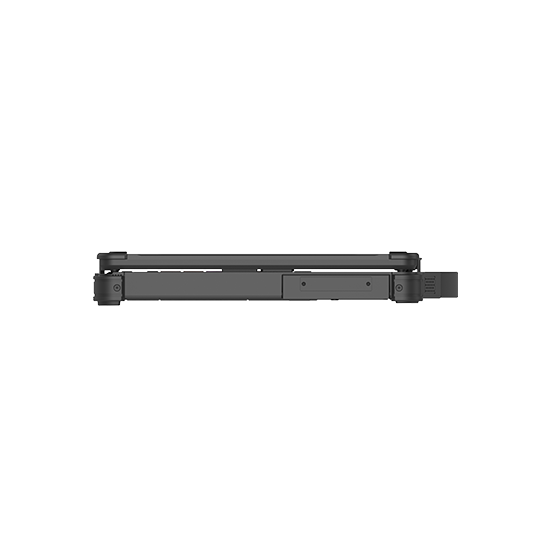

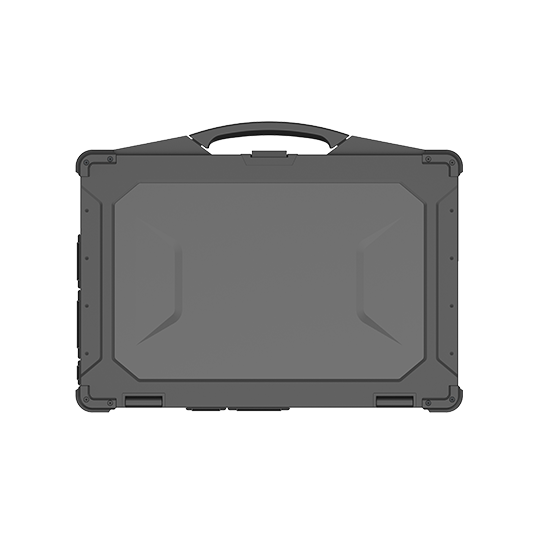

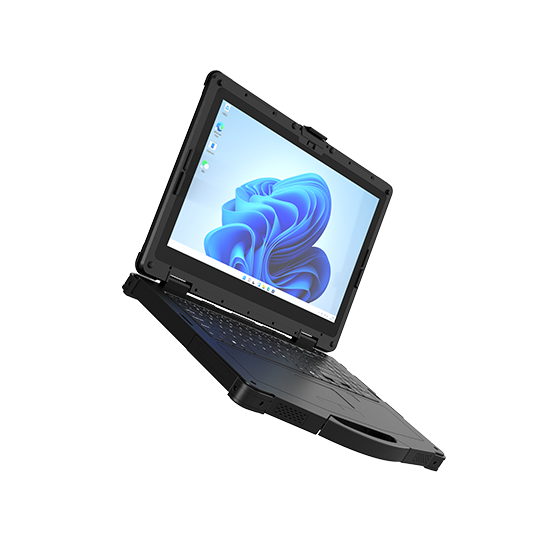

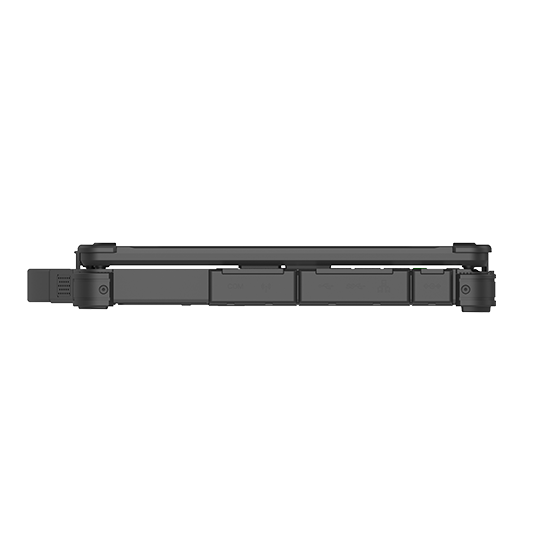

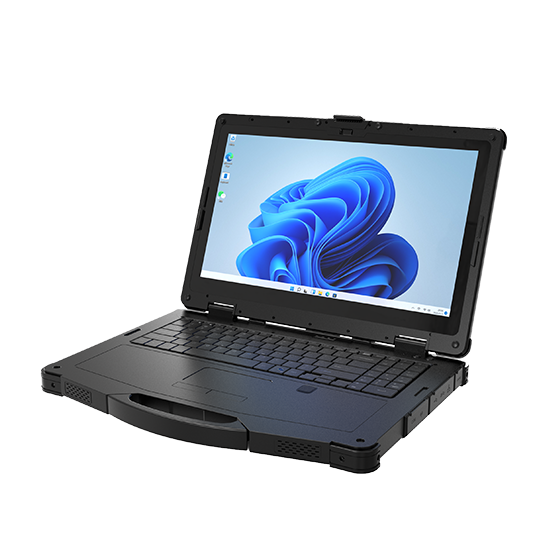

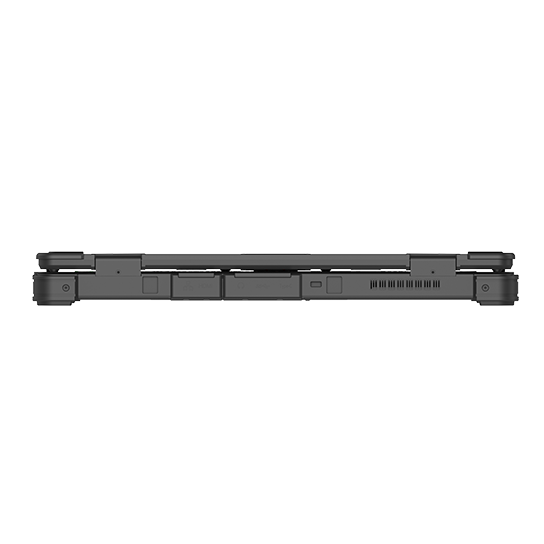

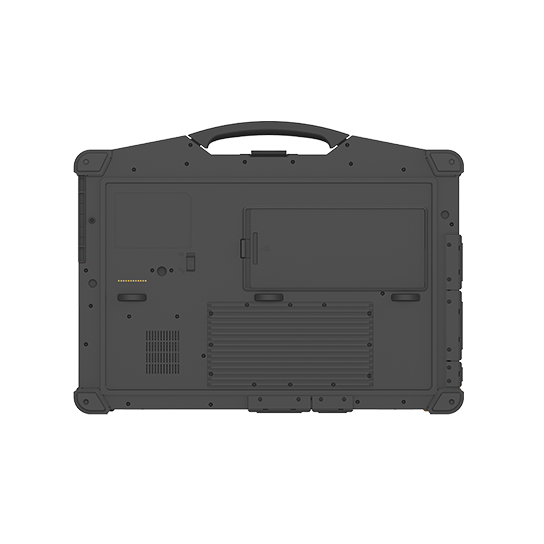

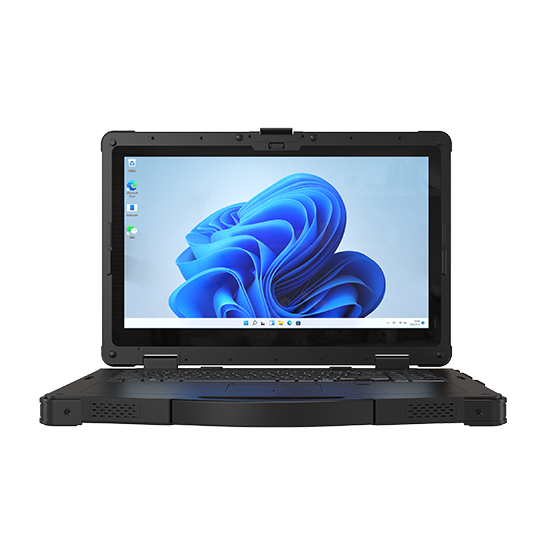

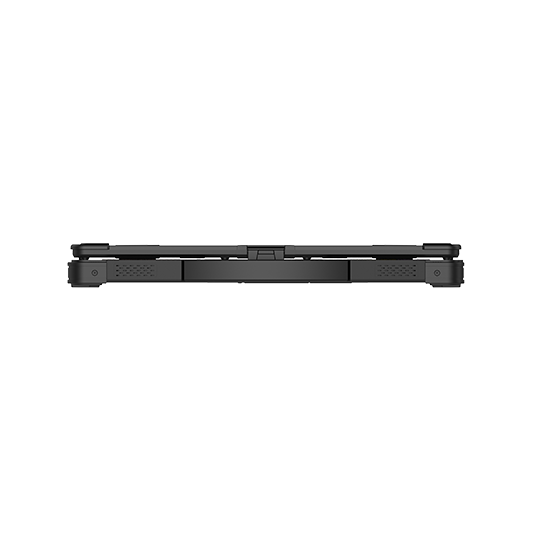

Six Views of EM-X15M: 15.6 inch Rugged AI PC Intel windows+AI

Rugged AI PC

Specification of EM-X15M: 15.6 inch Rugged AI PC Intel windows+AI

Tech Spec
Product Form	15.6-inch Rugged Notebook
Material	ABS+PC
Dimensions	407305.845.5mm
Weight	TBD
Product Color	Black

CPU	Intel Meteor Lake-H I5 125H Optional: Intel Meteor Lake-H i7 155H processor with 16 cores and 22 threads, up to 4.80 GHz, integrated 24 MB SmartCache, TDP 28W
GPU	iGfx/dGfx (Intel Xe LPG Graphics)
Memory	RAM 16GB DDR5 Optional: 32GB DDR5 ROM 256GB SSD
SSD	Optional: 1*SSD (Expansion Slot)
TPM	Built in TPM2.0
Hall	Hall

Operating System	Windows 11 Pro Optional: Windows 11 Home Windows 10 IOT

Display	Type: FHD Size: 15.6-inch 16:9 Resolution: 1920*1080 Brightness: 1000cd/㎡
Touch Pannel	Optional 10-Point Capacitive Screen, G+G, Corning Gorilla Glass; Hardness above 7H; Scratch-resistant; Supports glove touch

Camera	Front 5.0MP

Buttons	Power Button 1 P Key 1 (one-click screen off/on) RF *1 (toggle switch, enable/disable wireless functions)

Speaker	Built in 4Ω/3W *2
Microphone	Internal MIC *1
Battery (Built in)	Built-in Polymer Lithium-ion Battery, Non-removable 1300mah/11.1V (14.4WH) 1.5hrs (Default 50% volume, 200 lumens brightness, playing 1080P HD video)
Battery (Hot-swappable)	Removable Polymer Lithium-ion Battery, Hot-swappable 4850mah/11.55V（56WH） 8hrs (Playing 1080P HD video, Conditions: System in balance mode, 30% brightness, 320 lumens, 30% volume (70 dB at 10cm), WiFi and Bluetooth turned off.)

WIFI	Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
Bluetooth	BT5.1 (BLE) class 1; Transmission Distance: 10m
2G/3G/4G	4G (Optional M.2 European standard) LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41
5G	5G Optional M.2 5G NR NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79/ SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 LTE LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 LAA B46 UMTS WCDMA B1/ 2/ 4/ 5/ 8/ 19
GPS	Supports single GPS or single glonass, default GPS

NFC	Optional, NXP300
Fingerprint	Built in, ×1 SPI Fingerprint (Power-On Login)
Keyboard	US Layout Keyboard with Backlight

I/O Interfaces	USB3.2 1, USB3.0 1, USB2.0 *1
	TYPE-C, Supports Thunderbolt 4
	∮3.5mm Standard Earphone Jack *1
	HDMI 2.0a mini x1
	SIM *1
	TF *1
	RJ451 10M/100M/1000M adaptive RJ451 10M/100M/1000M adaptive, Supports Gigabit Protocol
	RS232 *1, 9 fully functional lines
	DC 19V 4.73AA ∮5.5mm Power port *1
	12PIN Pogo Pin (USB & Charging) *1
	Anti-theft Lock Slot *1
	Right-side Cooling Vent *1
	Left-side expansion slot, optional M.2-2280 PCIe interface 1, supports SSD; Optional: M.2 E-KEY interface 1 for custom modules.

Adapter	DC input 100-240VAC0.5A50/60Hz 19V/4.73A 90W American Standard Optional: European Standard

Rugged Features	MIL-STD-810H: 1.2m drop resistance
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing

Certifications	IP65
	CE, UN3803, Optional FCC, CCC
	MIL-STD-810H
