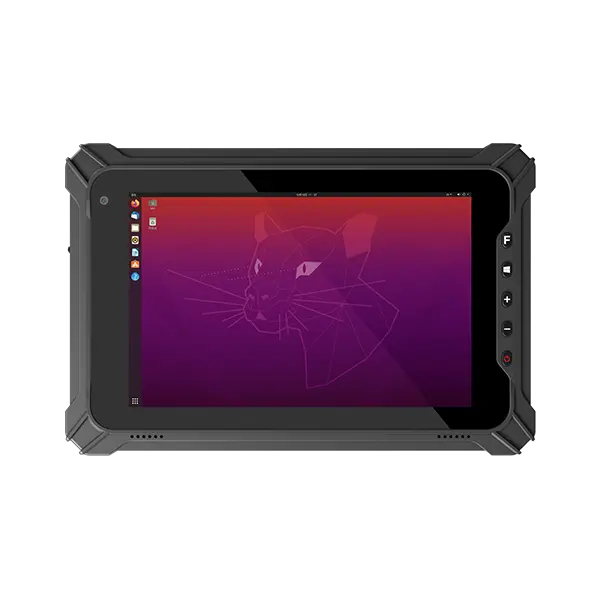

·Intel Jasper Lake processor Celeron N5100
·8 inch IPS screen, 1920x1200 FHD, 550nits
·5-point capacitive touch
·High speed communication as 2.4G/5.8G WIFI, 4G LTE, BT5.0 and etc.
·Efficient file transfer rely on advanced USB Type-A/Type-C 3.0/3.1, I/O port
·Optional high performance 2D imager designed to data capture
·Front 5.0MP + Rear 8.0MP, autofocus with flashlight
·Symmetric speakers. More immersive, more clear
·User-friendly buttons designed for efficient action
·Enhanced rugged corners withstand shock and impact
·IP65 Waterproof and Dustproof, MIL-STD-810G certified
·Removable 5000mAh battery & New battery-free working mode
Ubuntu
IP65
GPS
High capacity
Bluetooth
Camera
4G
WIFI
2D
NFC
* All technical data, specification and performance figures subject to change without notice.
| Tech Spec | |

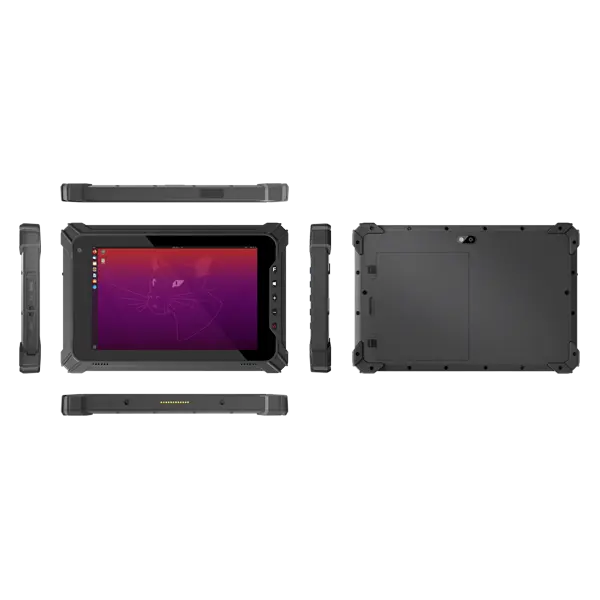

| Product Form | 8 inch Rugged Tablet |
| Material | PC+TPU |

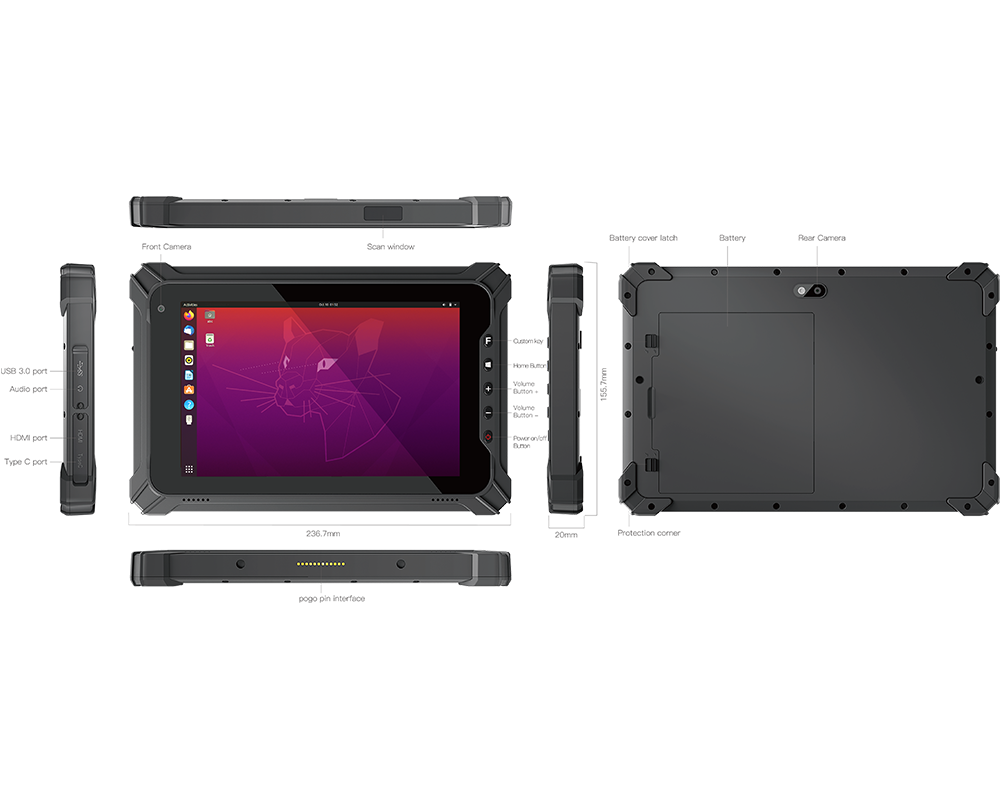

| Dimension | 236.7*155.7*20 mm |
| Weight | 910g |
| Product Color | Black |
| CPU | Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, Maximum dominant frequency 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory | RAM 8GB DDR ROM 128GB Emmc |
| Operating System | Ubuntu22.04.4 |
| Display | Type: TFT Optional: Type: TFT Size: 8 inch 16:10 Size: 8 inch 16:10 Resolution: 1200*1920 Resolution: 800*1280 Brightness: 550cd/㎡ Brightness: 700cd/㎡ |
| Touch Pannel | 5 points tempered glass capacitive screen G+G, hardness 7H |
| Camera | Front 5.0MP Rear 8.0MP, support auto focus, with flashlight function |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Key *1 (Barcode Scanning), When there is no scanning function, it can be customized Home Key *1 |
| Speaker | 8Ω/1W Speaker *2 |
| Microphone | Single MIC, Sensitivity: -42db, Output Impedance 2.2kΩ |
| Senssors | G_sensor |
| RTC | Built in polymer lithium ion battery, with capacity of 3V/1mAh |
| Battery (Tablet) | Removable Li-polyment Battery 5000mAh/7.6V 7 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI |
| Bluetooth | BT5.0 (BLE) class1 Transmited distance：10m |
| 4G | Eurasian: LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: 900/1800 Optional, EC25-AF, 750-VA, 750-VSA |
| GPS | Support GPS (L1 1.575GHz C/A code), GLONASS (L1 1.602GHz), Cold start time is not more than 60s |

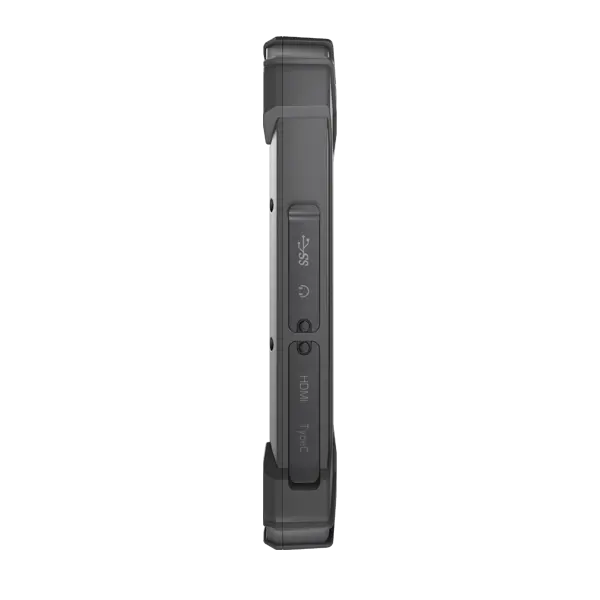

| I/O Interface | USB3.0 *1 (USB A port, HOST data transmission), Type C 3.1 *1 (Charging and Data transmission, Full function Type-C) |
| ∮3.5mm Standard earjack *1 | |
| HDMI 2.0a mini *1 | |
| Three in one card holder (Micro SD card, up to 512GB; Nano SIM *1) | |

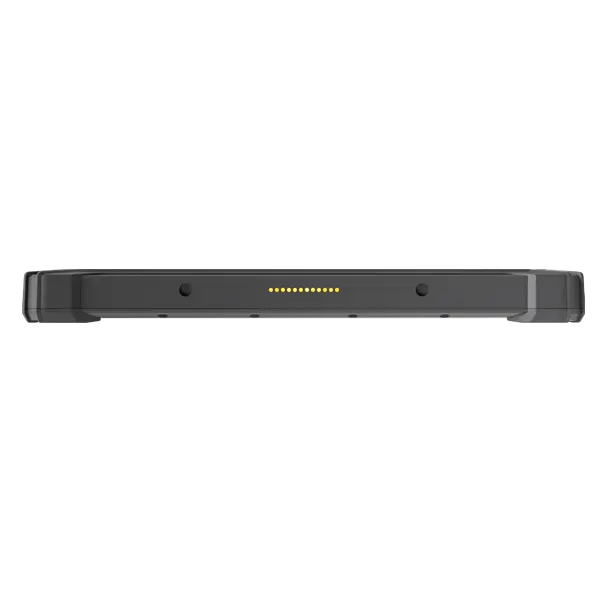

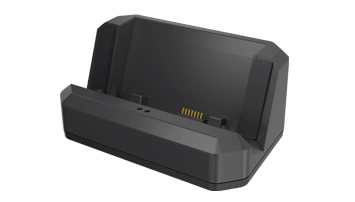

| 12PIN Pogo Pin *1 (Charging interface, USB signal connection base) | |
| Adapter | AC100V ~ 240V 50Hz/60Hz Output TYPE-C 19V 3.42A European Standard adapter |
| Indicator Light | Blue indicator *1 (Blue light is always on when the machine is turned on, and off when the machine is turned off) R&G two-color lamp *1 (Low power red flickers, red is always on when charging, green is always on when full) |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE | |
| FCC | |
| CCC | |
| MIL-STD-810G | |

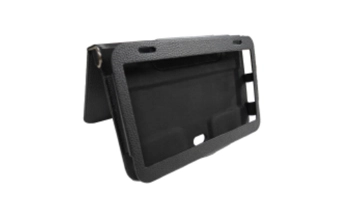

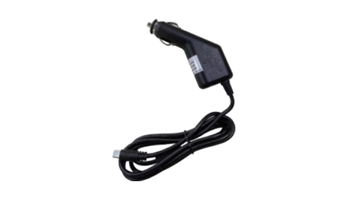

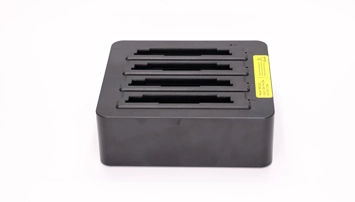

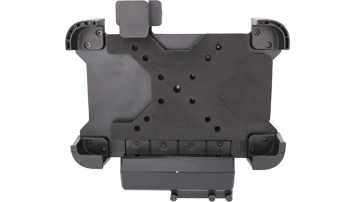

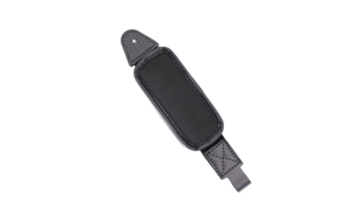

Various modules and accessories can be selected to meet customers' application in various industries.
