·Powered by the AIoT-specific ARM architecture octa-core processor and the latest Android 14 OS
·With 8GB of RAM and 128GB of ROM, multitasking is a breeze
·Built in 9500mAh battery, provides up to 12 hours of use on a single charge
·Barcode Scanning + NFC for diverse data collection needs
·Dual-Band Wi-Fi 5 for higher speed transmissions
·BT 5.1 with greater range and higher speed
·4G mobile network with high quality communication level
·All-in-one design with IML technology for scratch resistance and durability
·Undergoes IP65 protection level testing and multiple quality tests
·Stable operation in extreme temperatures of -10°C to 50°C
Android
IP65
GPS
High-capacity
Camera
NFC
4G
WiFi
Bluetooth
2D
| Tech Spec | |

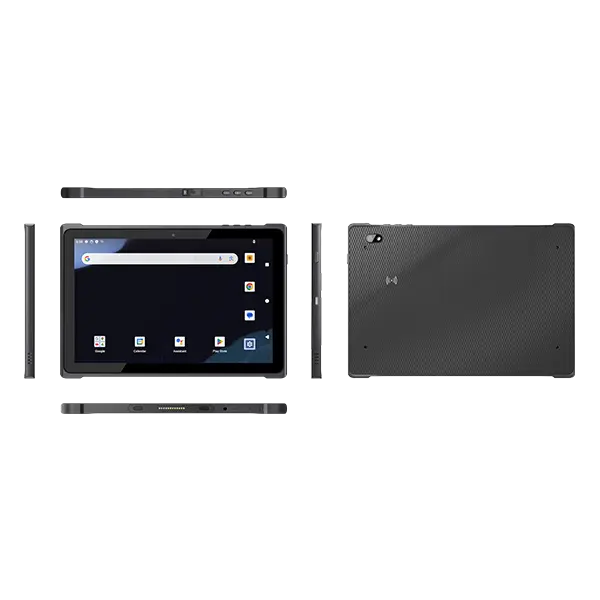

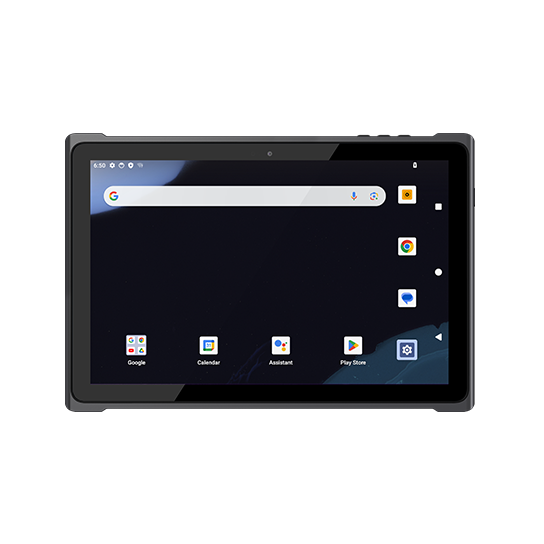

| Product Form | 10.1 inch Rugged Tablet |
| Dimension | 263*177*10.5 mm |
| Weight | 650g |
| Product Color | Black |
| CPU | MT8781 OCTA Core |
| GPU | ARM G57 MC2 |
| Memory | RAM 8GB LPDDR4X ROM 128GB |
| Operating System | Android 14 GMS |

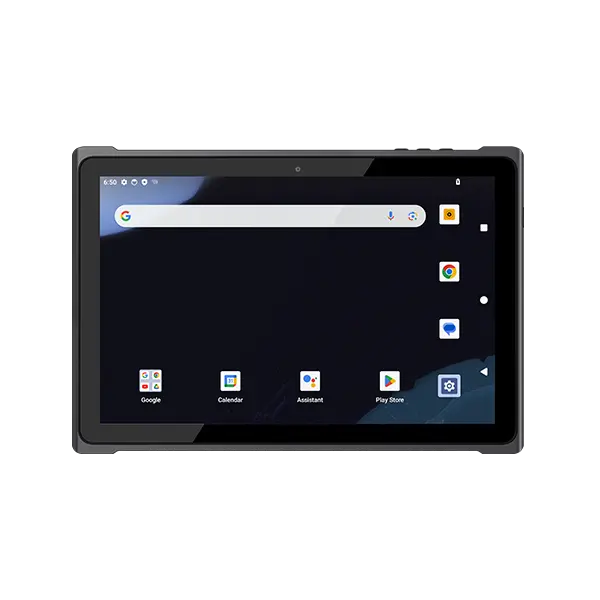

| Display | Type: IPS Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 400cd/㎡ |
| Touch Pannel | 10 point G+G capacitive touch screen |

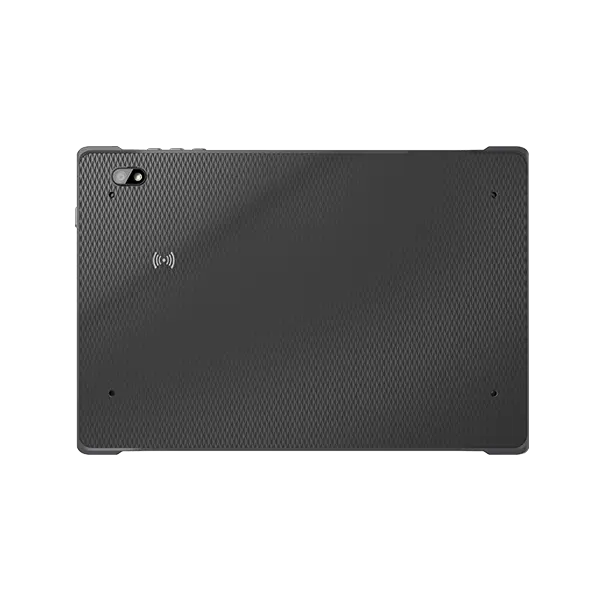

| Camera | Front 5.0MP, with Light sensor Rear 13.0MP, Autofocus, Single flash |
| Charging Indicator | Specification: red green dual color lamp Logic: no breathing effect (low battery 0%~20% red light flashes, charging red light stays on, and green light stays on after 90% battery) |

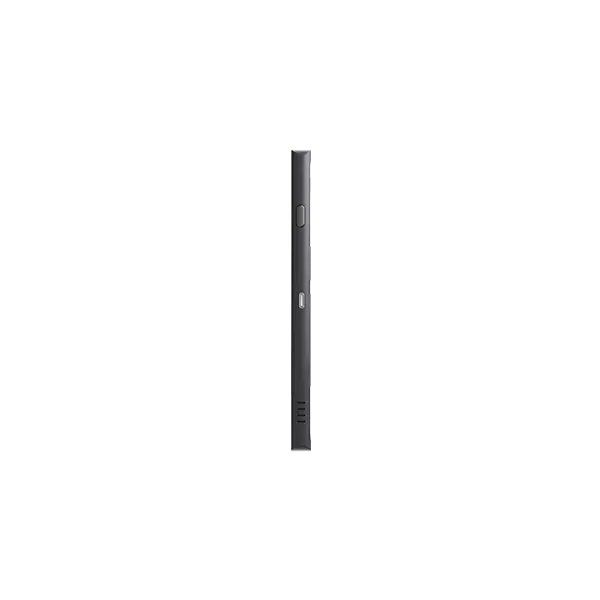

| Buttons | Power *1 Volume Key + *1 Volume Key - *1 Scanning Key *1 |

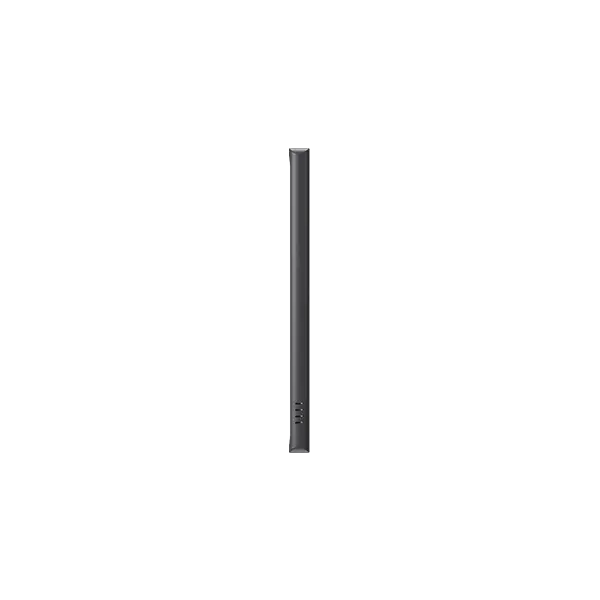

| Speaker | Built in 8Ω/1W Waterproof Speaker *2 |
| Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
| Senssors | G_sensor, Geomagnetic sensor (compass), Gyro Sensor |
| Battery | Built-in Li-polyment Battery 9500mAh/3.8V 12 hrs(50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11 b/g/n/a/ac frequency2.4G+5.0G (5.1G+5.8G) Dual-band WIFI |
| Bluetooth | BT5.1 (BLE) class1 Transmission distance：10m |
| 2G/3G/4G | GSM: B2/3/5/8 WCDMA:B1/2/5/8 FDD:B1/2/3/4/5/7/8/17/20/28A/28B TDD:B38/39/40/41 |
| GPS | Support GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS |
| I/O Interface | Type C *1 ( USB2.0/OTG/Fast charging PE+2.0 18W) |
| TF card *1，Max: 512GB SIM card *2 Two out of three card holders (Micro Sim+TF or Micro Sim+Nano Sim) | |

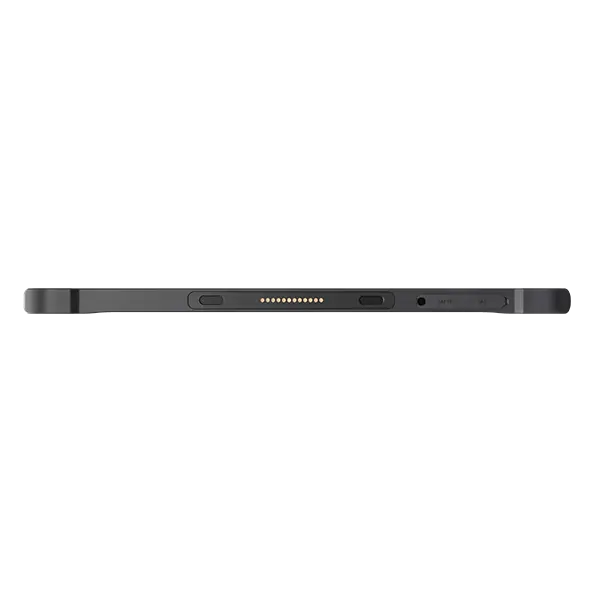

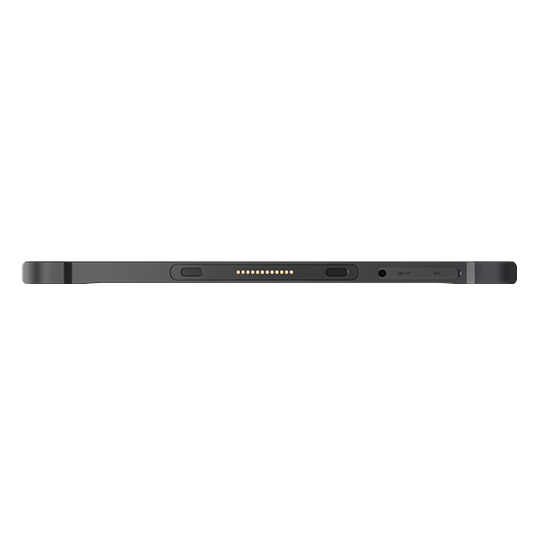

| 12PIN Pogo Pin *1 | |
| Power Adapter | USB Type-C interface, supporting fast charging PE+2.0, maximum power 18W, maximum 9V/2A |
| Rugged Features | EOS：VBUS 300/80us VBAT 300v/20us |
| Electrostatic discharge (ESD): ± 15kV air discharge, ± 8kV contact discharge | |
| 1m drop | |
| Working temperature: -10 °C to 50 °C | |
| Storage temperature: -20 °C to 60 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE，CCC，UN3803 | |
| Data Collection | QR Code Scanner |
| NFC | |
* Please be aware all technical data, specifications and performance figures are subject to change without notice.
Various modules and accessories can be selected to meet customers' application in various industries.
