ARM 5G CPU with up to 2.0 GHz
Android 11 OS and 4GB RAM + 64GB ROM storage
10.1 inch IPS full HD screen with 10-point capacitive touch
4G/3G/2G, dual-band Wi-Fi 5 and BT 5.1
The professional 2D scan engine multi-function NFC
GPS, BDS, GLONASS, Galileo, NavIC (IRNSS), multi-satellite navigation system
IP65 Waterproof and Dustproof , In accordance with MIL-STD-810G
Android
IP65
GPS
High-capacity
Bluetooth
2D
NFC
WiFi
5G support Android 11 system

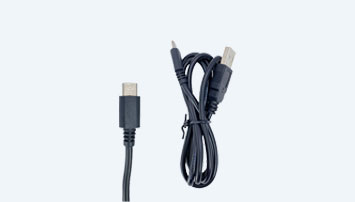

support standard USB port

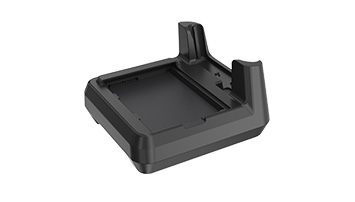

support charging docking
support NXP NFC(13.56M）
support GPS navigation
support 2D barcode scanner
rugged IP65 protection grade
support hand/shoulder/back strap
| Basic parameters | Performance parameter | |||||||||||||

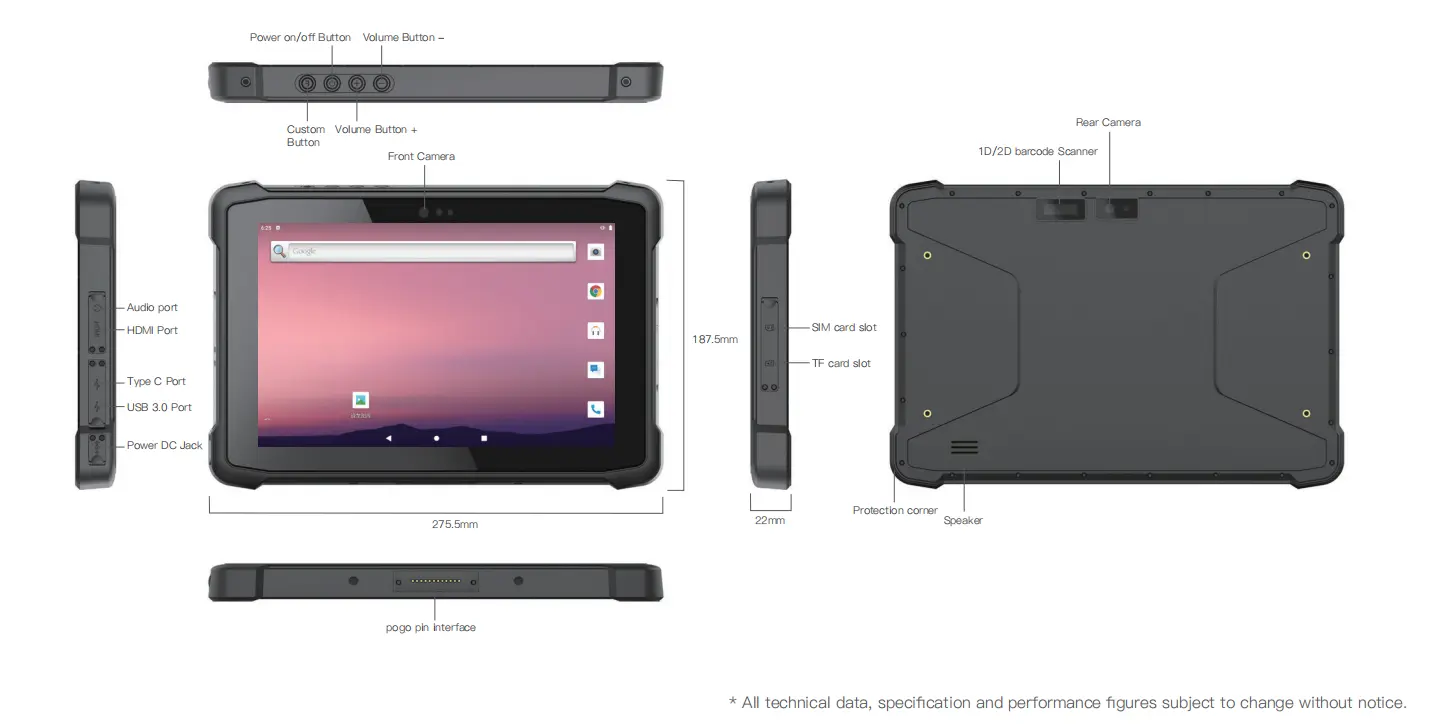

| Dimension | 275.7 x 187.5 x 24.5mm | CPU | ARM (OCTA Core), 2.0GHz | |||||||||||
| Weight | Device unit 1000g | OS | Android 11 | |||||||||||
| Device Color | Black | RAM | 4GB | |||||||||||
| LCD | 10.1 inch IPS 16:10, 1200x1920, 400nits | ROM | 64GB | |||||||||||
| Touch Panel | 10 point G+G capacitive touch screen | Battery | ||||||||||||
| Camera | Front 5.0MP Rear 13.0MP | Capacity | 3.7V/8000mAh | |||||||||||
| I/O | USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, HDMI 1.4a x 1, 12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1, Φ3.5mm DC jack x 1 | Type | Built-in Li-polymer battery | |||||||||||
| Endurance | 5.5hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) | |||||||||||||
| Data Collection | ||||||||||||||

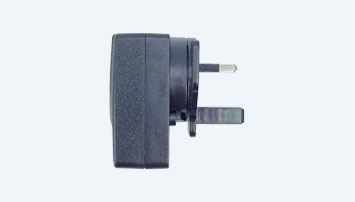

| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A | NFC | Built-in, 13.56MHz, Support ISO/IEC 14443A protocol Card reading distance: 3-5cm | |||||||||||
| Communication | ||||||||||||||
| WIFI | WIFI 802.11 b/g/n/a/ac Dual frequency 2.4G+5G | 2D | Optional, Optical resolution: 5mil/ scan speed: 50 times/s | |||||||||||
| Bluetooth | BT5.1 Transmission distance: 10m | |||||||||||||
| Reliability | ||||||||||||||
| 2G/3G/4G/5G (Optional) | 5G(N1/N28/N41/N78/N79/NSA/SA) TDD-LTE: B34/38/39/40/41 FDD-LTE: B1/3/5/7/8 WCDMA: B1/5/8 | |||||||||||||
| Operate Temperature | -10 °C ~ 50 °C | |||||||||||||
| Store Temperature | -20 °C ~ 60 °C | |||||||||||||
| GNSS | Support GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS | Humidity | 95% Non-Condensing | |||||||||||
Feature | IP65 certified, MIL-STD-810G certified | |||||||||||||
| Drop Height | 1.22m | |||||||||||||
* Please be aware all technical data, specification and performance figures subject to change without notice.
Various modules and accessories can be selected to meet customers' applications in various industries.
Various modules and accessories can be selected to meet customers' applications in various industries.
