Intel Core i5-1235U 17 inch industrial Panel pc windows P17A

Name: Intel Core i5-1235U 17 inch industrial Panel pc windows P17A
Brand: Emdoor Information Co., Ltd.

● Powered by a 12th-gen Intel Core Processor with Windows 11 OS;

● 17-inch 4:3 industrial display, compatible with professional applications;

● Wi-Fi 6 and BT 5.1; Supports 4G network connectivity;

● Multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports;

● Standard PPC-hook assembly accessory;

● VESA holes for wall and desktop mounting;

● Wide voltage input range: 12V to 24V;

● Operational temperature range: -30°C to 70°C;

● Anti-electromagnetic interference; IP65-rated front panel.

Get A Quote PDF Download

i5-1235U

windows 11

17 inch

500cd/㎡

wifi 6

Running 24/7 without

Rich interface extensions

IP65

Features of Intel Core i5-1235U 17 inch industrial Panel pc windows P17A

● Powered by a 12th-gen Intel Core Processor with Windows 11 OS;

● 17-inch 4:3 industrial display, compatible with professional applications;

● Wi-Fi 6 and BT 5.1; Supports 4G network connectivity;

● Multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports;

● Standard PPC-hook assembly accessory;

● VESA holes for wall and desktop mounting;

● Wide voltage input range: 12V to 24V;

● Operational temperature range: -30°C to 70°C;

● Anti-electromagnetic interference; IP65-rated front panel.

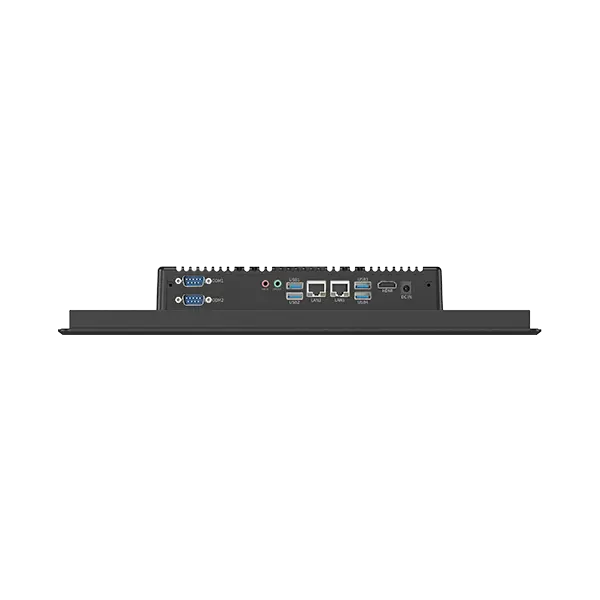

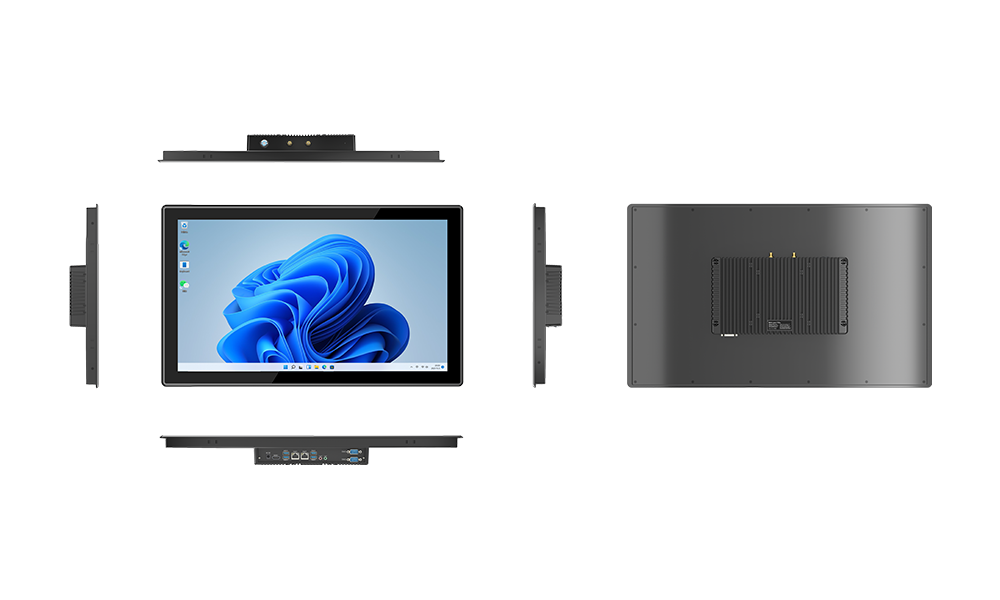

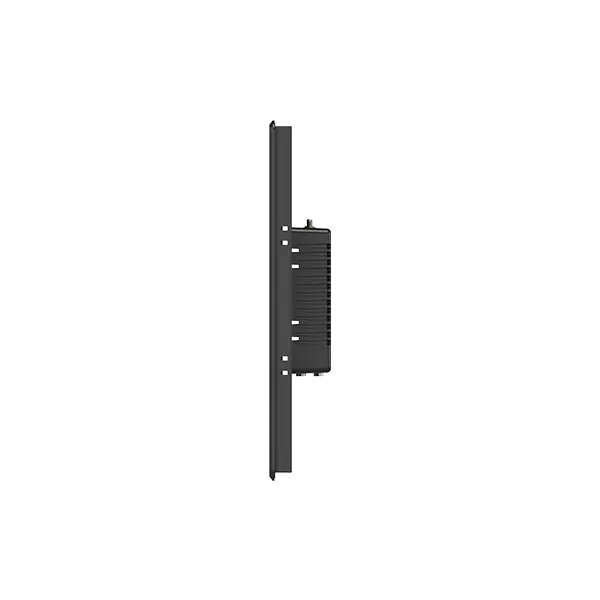

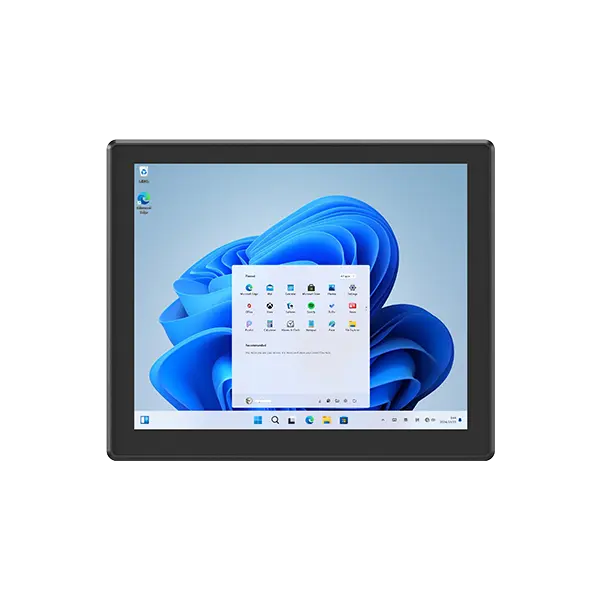

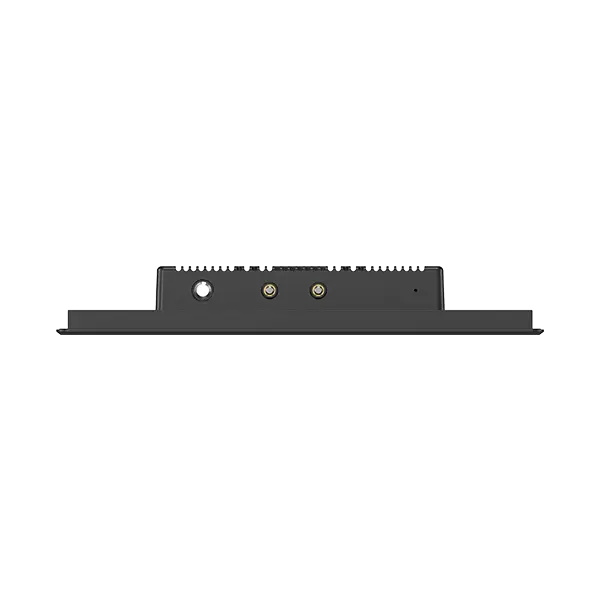

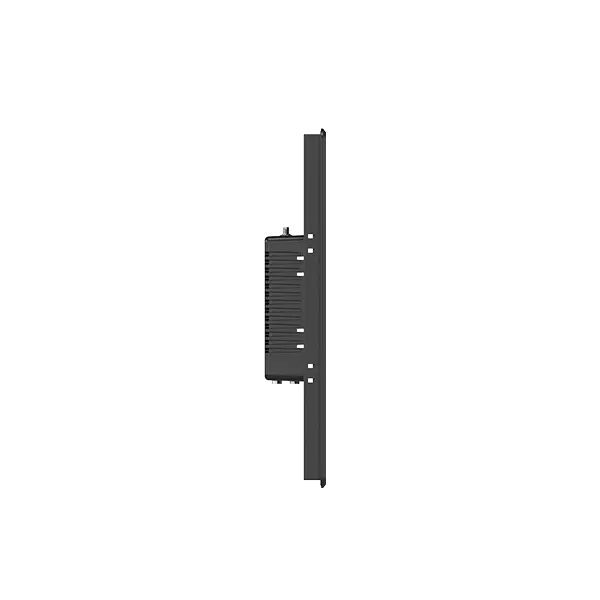

Six Views of Intel Core i5-1235U 17 inch industrial Panel pc windows P17A

Industrial PC

Specification of Intel Core i5-1235U 17 inch industrial Panel pc windows P17A

industrial Panel pc
Dimension	40133257 mm
Weight	TBD
Product Color	Black
CPU	i5-1235U, TDP15W,2P-Cores,8E-Cores
GPU	Intel® Iris® Xe Graphics eligible
Memory	RAM 8GB onboard ROM 128GB
Operating System	Windows 11 Pro/IoT/Home
Display	Type: LCD Size: 17 inch 4:3 Resolution: 1280*1024 Brightness: 500 cd/㎡
Touch Pannel	10 PCAP
WIFI	WIFI 802.11(a/b/g/n/ac/ax ) 2.4G+5G , supports WIFI6
Bluetooth	BT5.1
2G/3G/4G	Optional：4G LTE-FDD:B1/3/5/7/8/20 LTE-TDD:B40 WCDMA:B1/5/8 GSM:900/1800
I/O	Type A USB USB3.0*4
	Power interface DC 19V *1 （Support 12--24V）
	∮3.5mm Standard Earphone Jack *1
	RJ45 *2 (10M/100M/1000M adaptive)
	DB9 PORT RS232 *2
	HDMI *1
	M2 *1 M.2 2280 standard interface（Support SATAⅢ/PCIE3.0X4 signal）
Power Adaptor	AC100V ~ 240V、50Hz/60Hz output DC 19V/3.42A

Certification	IP65 Front Panel
Rugged Features	Working temperature: -30 °C to 70 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing

*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
