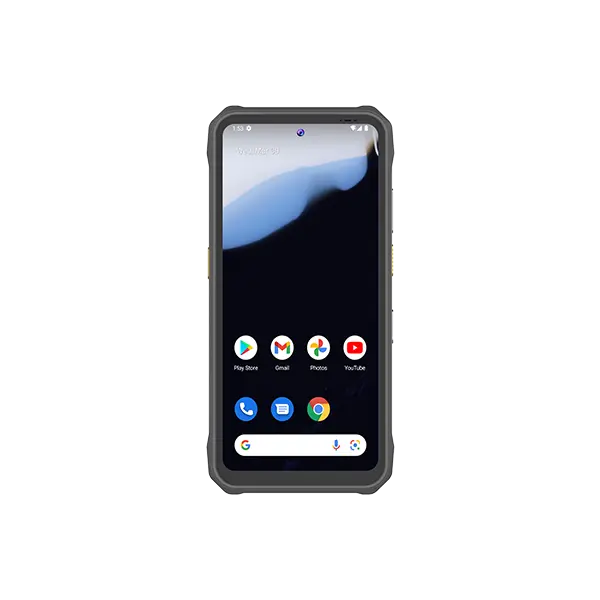

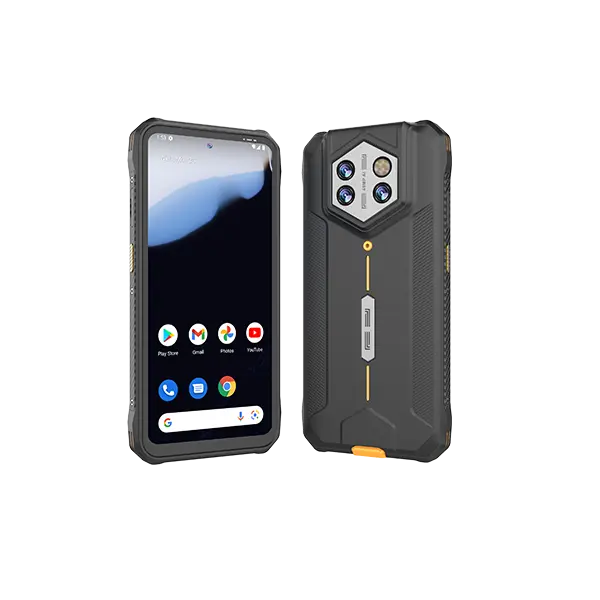

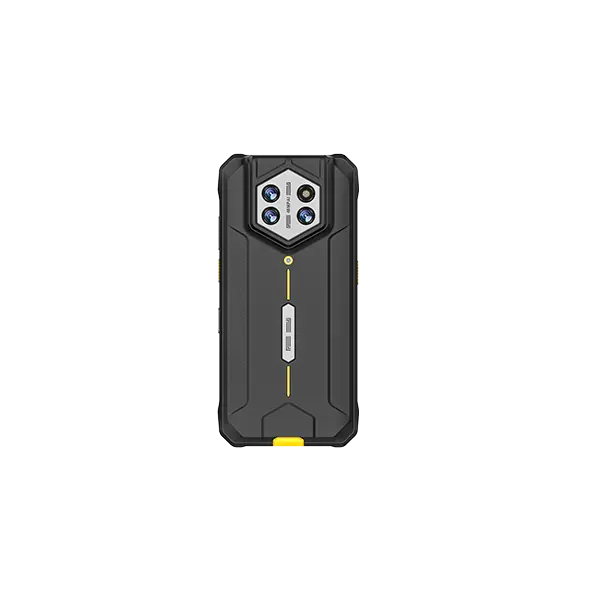

EM-H68T: MT6789 Octa-core 6.56 inch Rugged Android Handheld

Name: EM-H68T: MT6789 Octa-core 6.56 inch Rugged Android Handheld
Brand: Emdoor Information Co., Ltd.

● Helio G99 octa-core CPU Running on the latest Android 14 OS;

● 6.56”incell screen, supports wet hand and glove touch;

● Front 32MP Ultra HD lens, 48MP Samsung Main Camera;

● Professional 1D/2D scanning engine, reading distance up to 10 meters;

● 5800mAh battery, supports reverse charging mode;

● Powerful speakers with Smart PA technology, perfect for outdoor use;

● IP68 Rating, drop resistance up to 1.5 meters.

Get A Quote PDF Download

octa-core ARM

Android 14

6.56 inch

670cd/㎡

5800mAh

32MP+48MP

GPS

IP68

Features of EM-H68T: MT6789 Octa-core 6.56 inch Rugged Android Handheld

● Helio G99 octa-core CPU Running on the latest Android 14 OS;

● 6.56”incell screen, supports wet hand and glove touch;

● Front 32MP Ultra HD lens, 48MP Samsung Main Camera;

● Professional 1D/2D scanning engine, reading distance up to 10 meters;

● 5800mAh battery, supports reverse charging mode;

● Powerful speakers with Smart PA technology, perfect for outdoor use;

● IP68 Rating, drop resistance up to 1.5 meters.

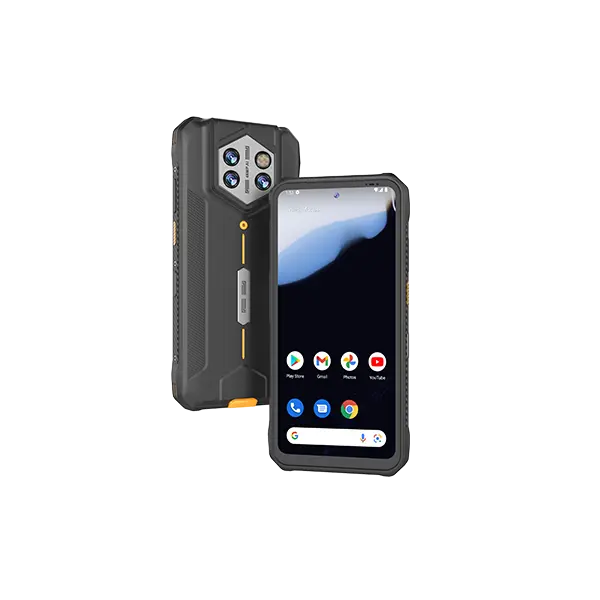

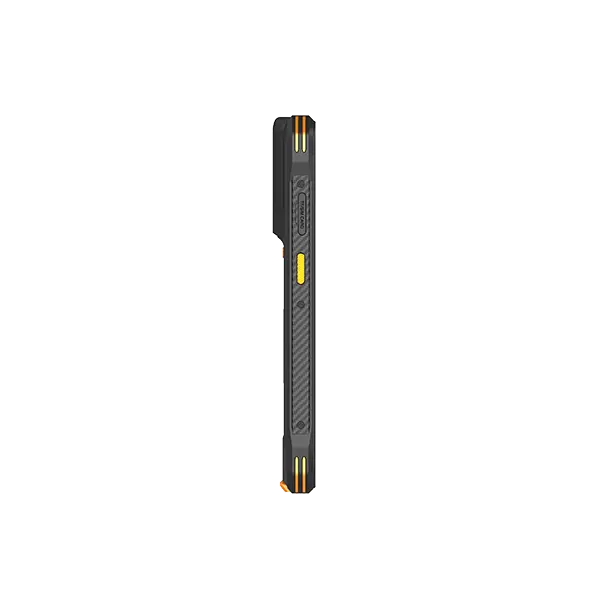

Six Views of EM-H68T: MT6789 Octa-core 6.56 inch Rugged Android Handheld

Rugged Android Handheld

Specification of EM-H68T: MT6789 Octa-core 6.56 inch Rugged Android Handheld

Tech Spec
Product Form	PDA Terminal
Material	ABS+PC
Dimension	170.280.714mm
Weight	About 311g
Product Color	Black+Orange

CPU	MT6789 Octa-core, two cores of 2.2GHz + six cores of 2.0GHz
GPU	ARM G57 MC2
Memory	RAM 8GB LPDDR4X ROM 128GB UFS2.2 (Optional 8+256GB for batch order)

Operating System	Android 14/ GMS

Display	Type: TFT Size: 6.56-inch 20:9 Resolution: 720*1612 Brightness: 670 Nit Support wet hand and glove touch
Touch Pannel	PolyRainbow Cover, 5-point capacitive screen, Hardness above 7H, Scratch-resistant.

Camera	Front 32MP, Fixed Focus Rear Main Camera 48MP, Autofocus, Supports PDAF Rear Secondary Camera 8MP Wide-angle
Flashlight	True Flash

Buttons	Power & Fingerprint 1 Volume + Key 1 Volume - Key 1 Barcode Scanning Key 2 (Barcode scanning by default)

Indicator Light	Indicator light *1, R/G dual-color light: Red constant when charging, green constant when fully charged (above 90%), red flashing when low battery (0-15%), off when discharging.

Audio	Speaker1 7Ω/1.5W Earphone1 Dual-MIC Motor*1 Audio SMART PA
Sensor	Light Sensor Proximity Sensor 3D Accelerometer Geomagnetic Sensor Gyroscope Gravity Sensor
Battery	Built-in Polymer Lithium-ion Battery 3.85V/5800mAh Charging Power: 33W/PD 3.0 PPS Protocol Battery Life: About 17h24min (Default 70dB volume; Default 300nits screen brightness; Playing 1080P HD video) Charging Time: About 1h50min

WIFI	WIFI 802.11(a/b/g/n/ac)
Bluetooth	BT5.1
4G	GSM(B2/3/5/8)+WCDMA(B1/2/4/5/8)+TDD(B34/38/39/40/41)+FDD(B1/2/3/4/5/7/8/12/13/17/18/19/20//25/26/28A/28B/30/66)
GPS	Supports GPS/Beidou/Galileo/GLONASS Supports AGPS Cold Start Time:<60 seconds

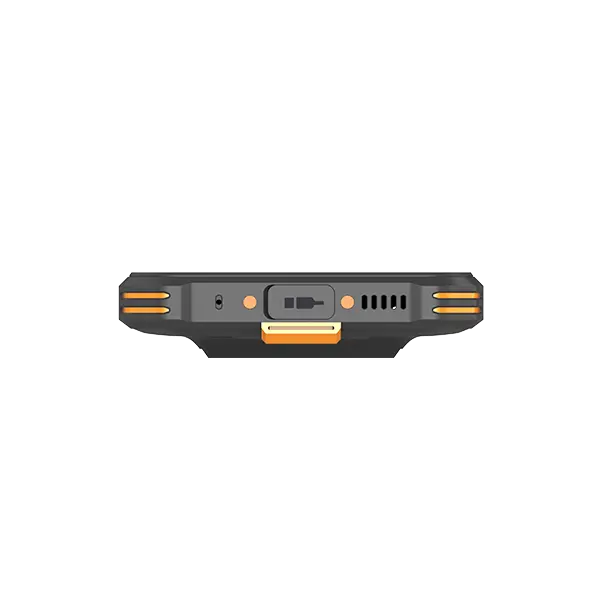

I/O Interfaces	Type C *1 (Charging/Data/Earphone/Reverse Charging 6W)
	TF Card1 SIM Card 2 2 of 3 card slot (Micro Sim+TF or Micro Sim+Nano Sim)

	Pogo Pin (Charging) *1

Power Adapter	33W Fast Charge Adapter
Type-C Cable	Type-C Data Cable（1m）

Rugged Features	Drop Height: Withstands drops from 1.5 meters onto composite wood flooring, while powered on.
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing
	Electrostatic Discharge: Contact Discharge ±8KV, Air Discharge ±12KV
	OVP: Threshold 12V
	EOS: VBUS 300/80us VBAT 300v/20us

Certifications	IP68
	CE
	CCC
	FCC
	MIL-STD-810H

Data Collection	Fingerprint Power On/Off & Fingerprint 2-in-1
	QR Code Standard Zebra 4710, Compatible with Newland CM60 and Honeywell 6803FR (long-range scanner).
	NFC

*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
