EM-I14M 14 inch Rugged AI Tablet PC Windows 11

Name: EM-I14M 14 inch Rugged AI Tablet PC Windows 11
Brand: Emdoor Information Co., Ltd.

·Experience the all-new Intel® Core™ Ultra processor, built on Intel's 4 process technology and advanced 3D hybrid architecture

·Newly added NPU dedicated AI acceleration engine,wuth highspeed operation of local AI laege language models and AI applications

·Standard 16+256GB, with dual memory and dual storage slots allow for easy upgrades and expansion

·14-inch ultra-large display with 1000 Nit peak brightness and glove touch support for outdoor scenes

·WiFi 6 technology, offering high speed connections up to 2000Mbps

·4G communication with optional 5G,supports Sub-6 GHz Frequencies

·BT5.1, low-latency anti-interference, high-speed data transmission

Get A Quote PDF Download

windows

IP65

GPS

high-capacity

Bluetooth

Fingerprint

$4G\5G$ 4G\5G

wifi

camera

Features of EM-I14M: 14 inch Rugged AI Tablet PC Windows 11

·Experience the all-new Intel® Core™ Ultra processor, built on Intel's 4 process technology and advanced 3D hybrid architecture

·Newly added NPU dedicated AI acceleration engine,wuth highspeed operation of local AI laege language models and AI applications

·Standard 16+256GB, with dual memory and dual storage slots allow for easy upgrades and expansion

·14-inch ultra-large display with 1000 Nit peak brightness and glove touch support for outdoor scenes

·WiFi 6 technology, offering high speed connections up to 2000Mbps

·4G communication with optional 5G,supports Sub-6 GHz Frequencies

·BT5.1, low-latency anti-interference, high-speed data transmission

·With the power of Thunderbolt 4, enjoy blazing speeds of up to 40Gbps for faster and more stable data transfer

·With a massive 56Wh removable battery and a 14.4Wh builtin battery

·Coupled with advanced performance optimization and a new fan cooling system

·Pre-installed self-developed control center software, can be customized key functions

·Optional 2D barcode scanning, supports expansion of customized PCIe cards

·PC/GF material, lightweight and strong body, reinforced design is more sturdy

·IP65 dustproof and waterproof protection level, no fear of harsh environments

·Passed MIL-STD-810H military standard test, 1.22m drop resistance

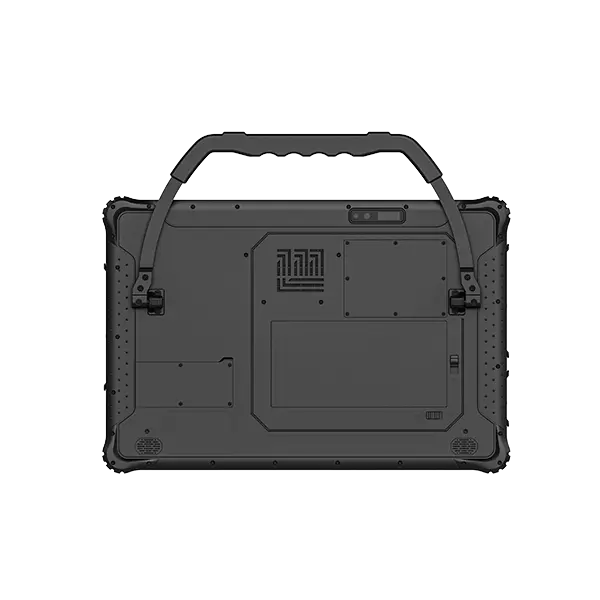

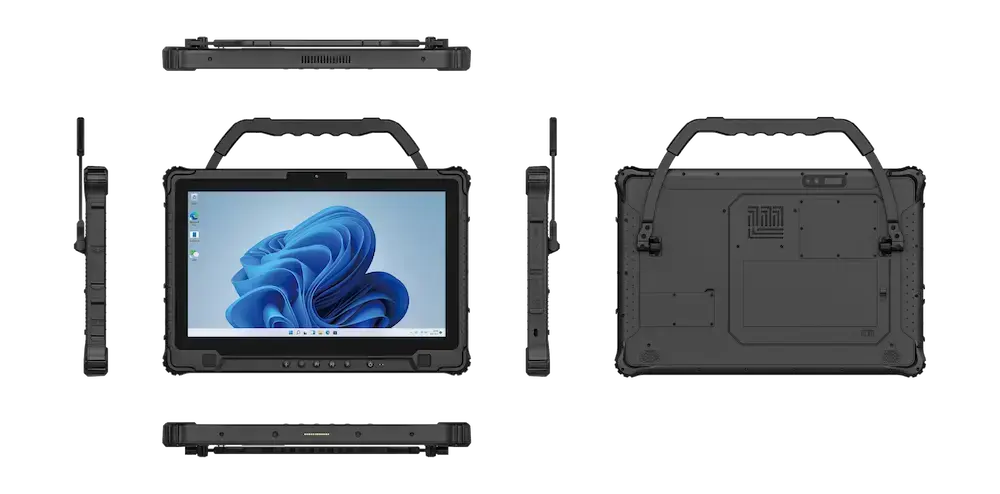

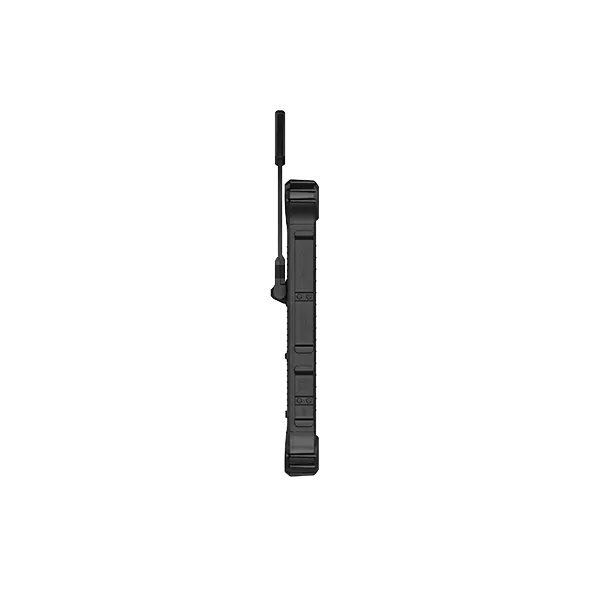

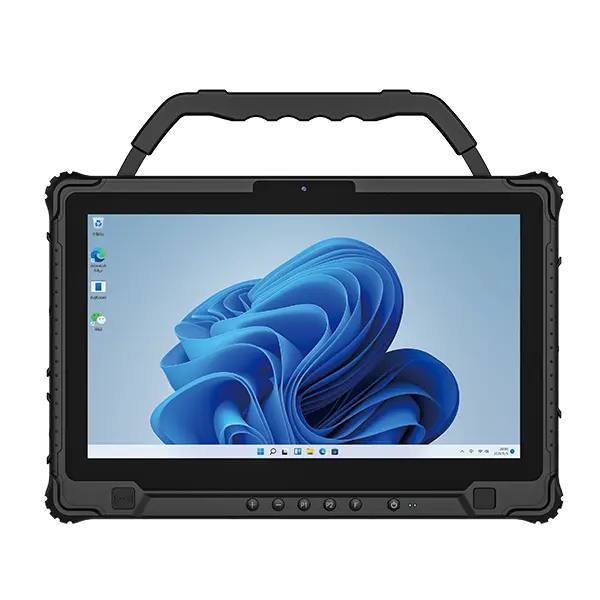

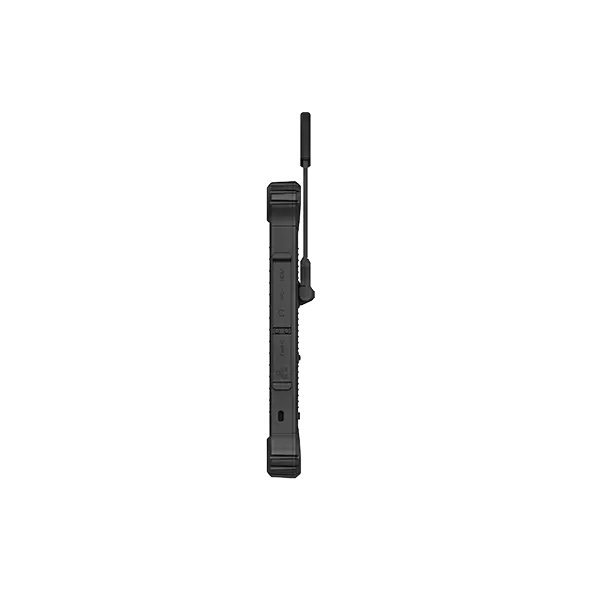

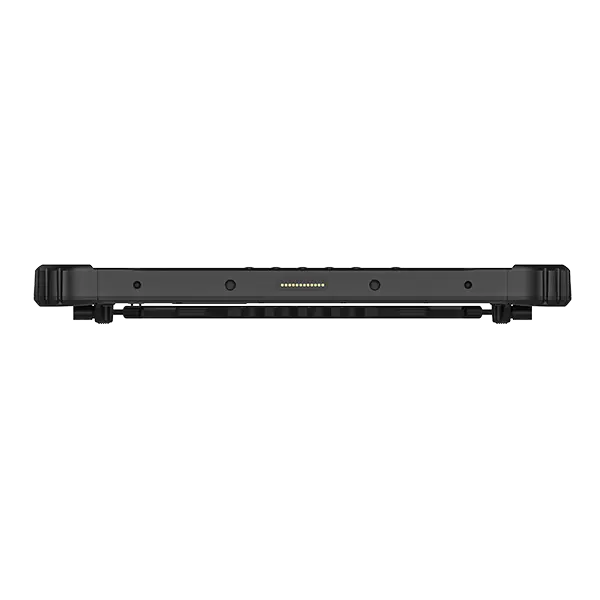

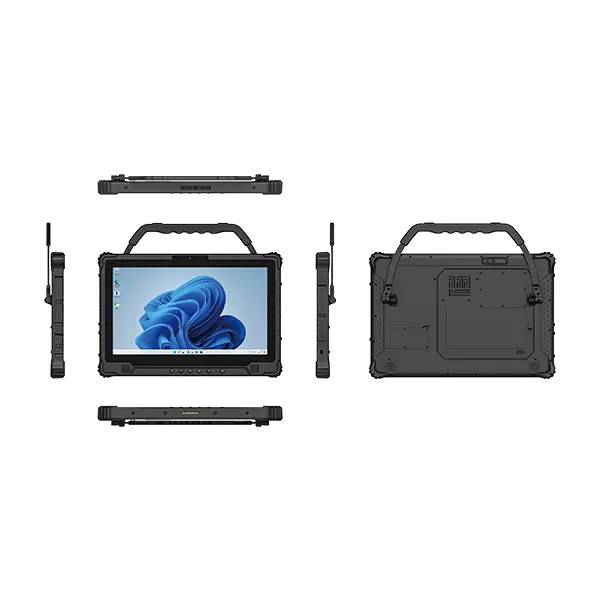

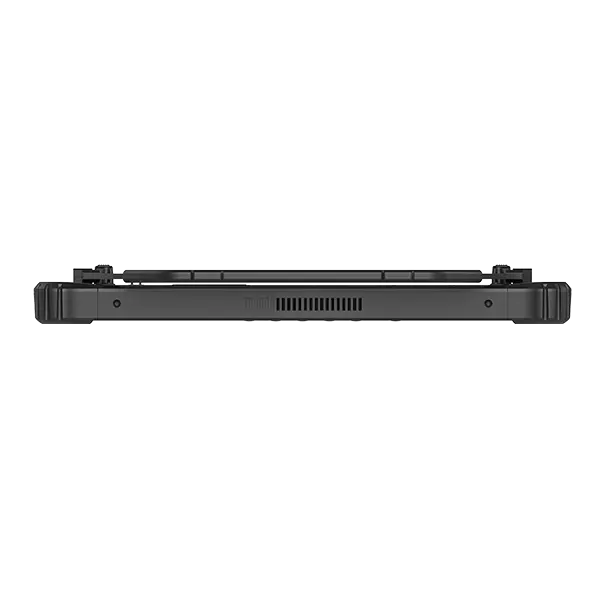

Six Views of EM-I14M: 14 inch Rugged AI Tablet PC Windows 11

Rugged AI PC

Specification of EM-I14M: 14 inch Rugged AI Tablet PC Windows 11

Tech Spec
Product Form	14-inch Rugged Tablet
Dimensions	366.2mmx246.9mmx24.8mm
Weight	TBD
Product Color	Black

CPU	Intel® Core™ Ultra 5 processor 125H 14 cores and 18 threads, up to 4.50 GHz, integrated 18 MB SmartCache, TDP 28W Optional: Intel® Core™ Ultra 7 processor 155H processor with 16 cores and 22 threads, up to 4.80 GHz, integrated 24 MB SmartCache, TDP 28W
GPU	iGfx/dGfx (Intel Xe LPG Graphics)
Memory	RAM 16GB DDR5 Optional: 32GB DDR5 ROM 256GB SSD

操作系统	Windows 11 PRO（HOME, IOT） 64bit Default Language: English Optional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit

Operating System	Type: LCD Size: 14-inch 16:9 Resolution: 1920*1080 Brightness: 1000cd/㎡
Touch Pannel	10-Point Capacitive Screen, G+G; Hardness above 7H; Scratch-resistant; Supports glove touch

Camera	Front 5.0MP (USB) Rear 13.0MP (mipi)

Buttons	Power Button 1 Volumn + key 1 Volumn - key 1 Customized key 2 F key *1 (Code scanning key. User-defined if there is no barcode)

Speaker	Built in 4Ω/3W waterproof speaker *2
Microphone	-44dB±3DB
Sensor	G-Sensor
Fan	IPX5 fan *1
RTC Battery	3.0V/220MAH
Small Battery	Built-in Polymer Lithium-ion Battery, Non-removable 1300mah/11.1V (14.4WH) Mins (Default 50% volume, 200 lumens brightness, playing 1080P HD video)
Large Battery	Removable Polymer Lithium-ion Battery, Hot-swappable 4850mah/11.55V（56WH） hrs (Default 50% Volume, Default 50% Volume Brightness, Playing 1080P HD Video)

WIFI	AX200 bands: Supports Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Frequency: 2.4G+5.8G Dual-band WIFI
Bluetooth	BT5.1 (BLE)
4G	LTE-FDD: B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 WCDMA: B1/8 Optional MeiG North and South America module
5G	5G Optional NSA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 SA n1/2/3/5/7/8/12/13/14/ 18/20/25/26/28/29/30/38/ 40/41/48/66/70/71/75/ 76/77/78/79 LTE LTE-FDD B1/2/3/4/5/7/8/ 12/13/14/17/18/19/20/ 25/26/28/29/30/32/66/71 LTE-TDD B34/38/39/40/ 41/42/43/48
GPS	Supports single GPS or single glonass, default GPS Optional U-BLOX M8Q module, supports GPS, Beidou, glonass

I/O Interfaces	USB3.2 1, USB3.0 1, USB2.0 *1
	TYPE-C, Supports Thunderbolt 4
	∮3.5mm Standard Earphone Jack *1
	HDMI 2.0a mini x1
	SIM card *1
	TF card *1
	RJ451 10M/100M/1000M adaptive RJ451 10M/100M/1000M adaptive, Supports Gigabit Protocol
	RS232 *1, 9 fully functional lines
	DC 19V 4.73A ∮5.5mm Power port *1
	12PIN Pogo Pin (USB & Charging) *1

Power Adapter	100~240V Input 19V4.73A/90W Output American Standard CE Certified Optional: European Standard/British Standard
Power Indicator Light	1. Power On: Power indicator remains solid. 2. Power Off: Power indicator turns off. 3. Sleep Mode: Power indicator blinks.
Baterry Indicator Light	1. Charging: Charging indicator remains solid (red). 2. Fully Charged: Charging indicator remains solid (green). 3. Large Battery Not Connected: Charging indicator flashes quickly (red). 4. Low Battery (10%) Without Adapter Connected: Charging indicator flashes quickly (red)

Rugged Features	MIL-STD-810G: 1.22m drop resistance
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Electrostatic Discharge: ±8kV contact discharge, ±15kV air discharge
	Humidity: 95% Non-Condensing

Certifications	IP65
	CE
	CCC
	MIL-STD-810H
	Battery: UN3803, MSDS, IEC62133, Aviation, Shipping Report

*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
