Intel Core i7-1255U 10.1 inch industrial Panel pc windows P10A

● Powered by 12th-generation Intel® Core™ i5-1235U/i7-1255U Processors, equipped with Windows 11 operating system

● 10.1-inch flat capacitive touch panel is impact-resistant, 700 nits high brightness screen

● Wi-Fi 6, Bluetooth 5.1, and expandable 4G (M.2 interface), multiple network connection modes

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Rich interfaces, including multiple USB/RJ45/DB9/HDMI and other I/O ports, easily meet various scenario requirements

● Wide voltage and temperature design, IP65-rated dustproof and waterproof

industrial Panel pc windows
industrial Panel pc windows
industrial Panel pc windows
industrial Panel pc windows
industrial Panel pc windows
i5-1235U/i7-1255U i5-1235U/i7-1255U
windows 11 windows 11
15.6 inch 15.6 inch
220cd/㎡ 220cd/㎡
1920*1080 1920*1080
wifi 6 wifi 6
Running 24/7 without Running 24/7 without
Rich interface extensions Rich interface extensions
storage expansion storage expansion
IP65 IP65

Features of Intel Core i7-1255U 10.1 inch industrial Panel pc windows P10A


● Powered by 12th-generation Intel® Core™ i5-1235U/i7-1255U Processors, equipped with Windows 11 operating system

● 10.1-inch flat capacitive touch panel is impact-resistant, 700 nits high brightness screen

● Wi-Fi 6, Bluetooth 5.1, and expandable 4G (M.2 interface), multiple network connection modes

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Rich interfaces, including multiple USB/RJ45/DB9/HDMI and other I/O ports, easily meet various scenario requirements

● Wide voltage and temperature design, IP65-rated dustproof and waterproof

● Standard PPC mounting hook component, easy to install and supports various installation methods such as embedded and wall-mounted

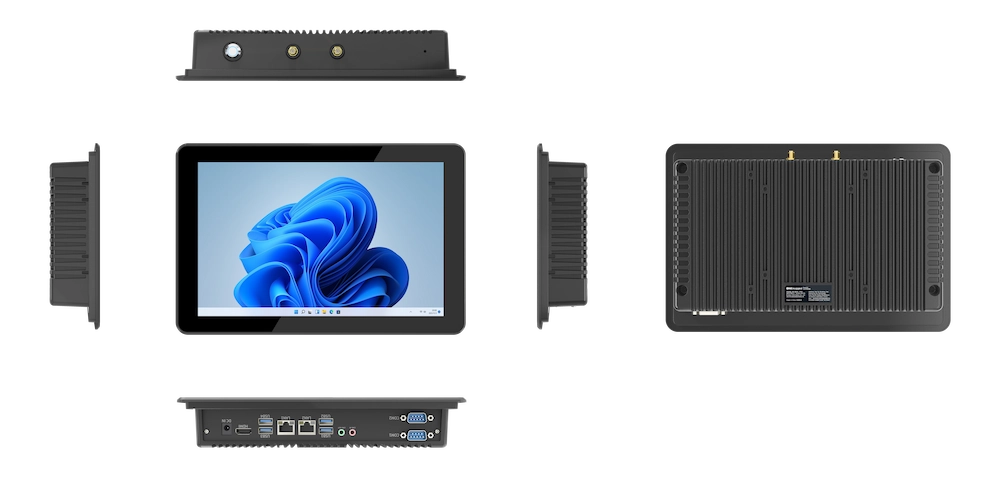

Six Views of Intel Core i7-1255U 10.1 inch industrial Panel pc windows P10A


industrial Panel pc windows






Specification of Intel Core i7-1255U 10.1 inch industrial Panel pc windows P10A


industrial Panel pc
Dimension257.2*170*45.95mm
Weight1.2kg
Product ColorBlack
CPUi5-1235U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 0.9GHz~4.4GHz (Optional i7-1255U)
GPUIntel® Iris® Xe Graphics eligible
MemoryRAM 8GB   onboard                      ROM  128GB (Optional 256/512GB)
Operating SystemWindows 11(HOME PRO IOT)
DisplayType: LCD
Size: 10.1 inch   16 :10
Resolution:  800×1280
Brightness:700 cd/㎡
Touch Pannel10 PCAP
WIFI WIFI 802.11(a/b/g/n/ac/ax ) 2.4G+5G , support WIFI6
BluetoothBT5.1
2G/3G/4GOptional:4G
LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8

Type A USB
USB3.0*4
Power interface
DC 19V *1 (Support 12--24V)
∮3.5mm Standard Earphone Jack  *1
RJ45 *2 (10M/100M/1000M adaptive)
DB9 PORT  RS232  *2
HDMI  *1
M2 *1  M.2 2280 standard interface(Support SATAⅢ/PCIE3.0X4 signal)
Power AdaptorAC100V ~ 240V、50Hz/60Hz output DC 19V/3.42A

CertificationIP65 Front Panel
Rugged FeaturesWorking temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing




*Product specifications, pictures, and other information are for reference only.  The appearance is subject to the material object. This instruction is subject to change without notice.
