· ARM octa-core processor, Android 11 OS, 8GB+128GB memory
· 10.1-inch IPS screen with resolution of 1920×1200 ·
· 10-point capacitive screen with an active stylus optional
· Lightweight design, the shell is made of medical-specific material
· Integrated 2D scanner & NFC
· Various accessory: hand-strap, docking charger, keyboard
· Dual-band WiFi 5, supports seamless AP roaming
· Supports BT5.1 & 5G
· Passed the IP65 standard and 1-meter drop test
· Passed the IEC60601-1 of the international standard for medical electrical equipment
· Supports safe contact discharge ±8kV and air discharge ±15kV
Android
IP65
GPS
High-capacity
NFC
2D
WiFi
Bluetooth
5G
Camera
| Basic parameters | |

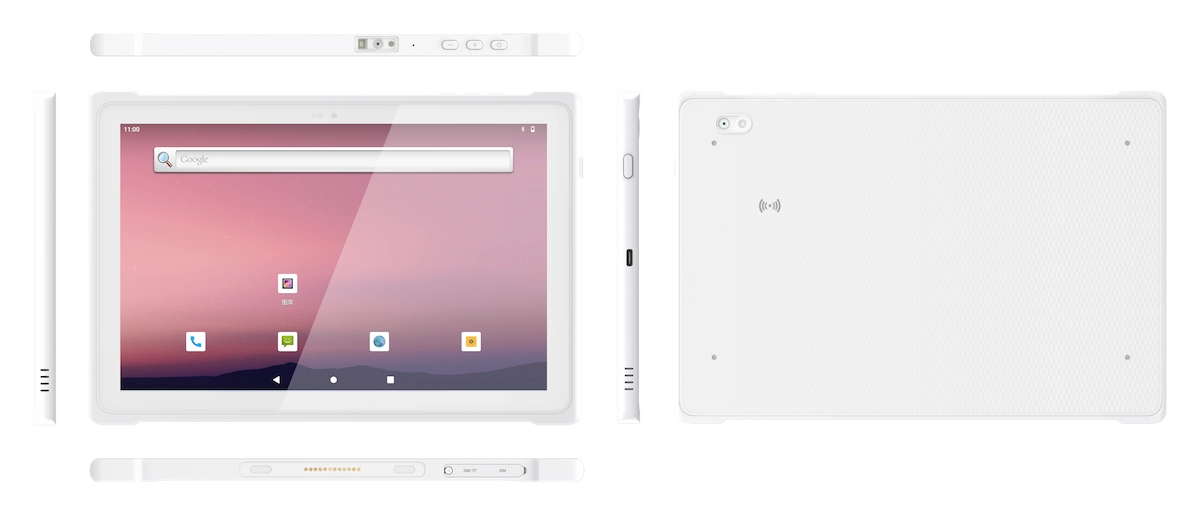

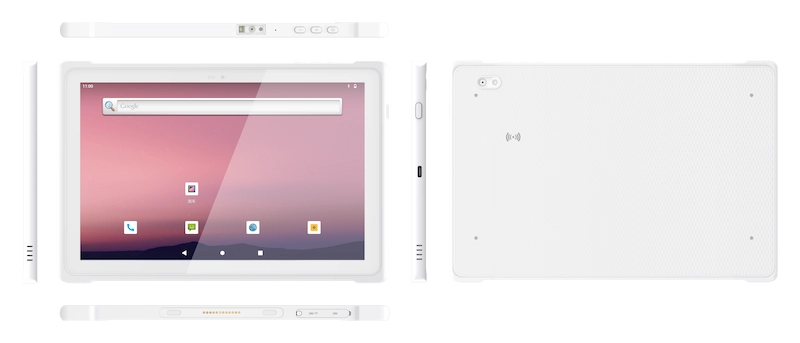

| Dimension | 263 x 177 x 10.5mm |
| Weight | 650g |
| Color | White |

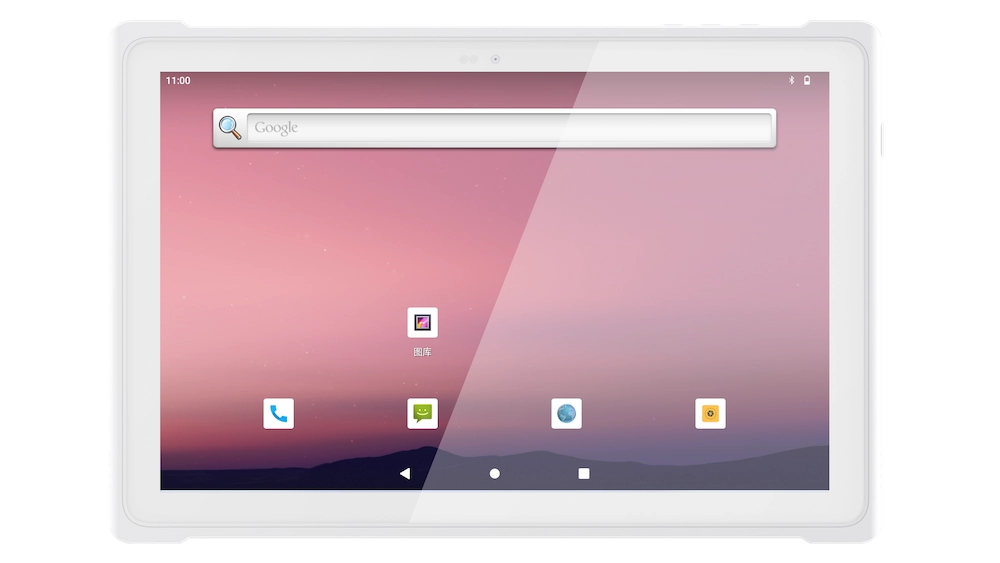

| LCD | 10.1 inch IPS 16:10, 1200x1920, 400nits |
| Touch Panel | 10 point G+G capacitive touch screen |

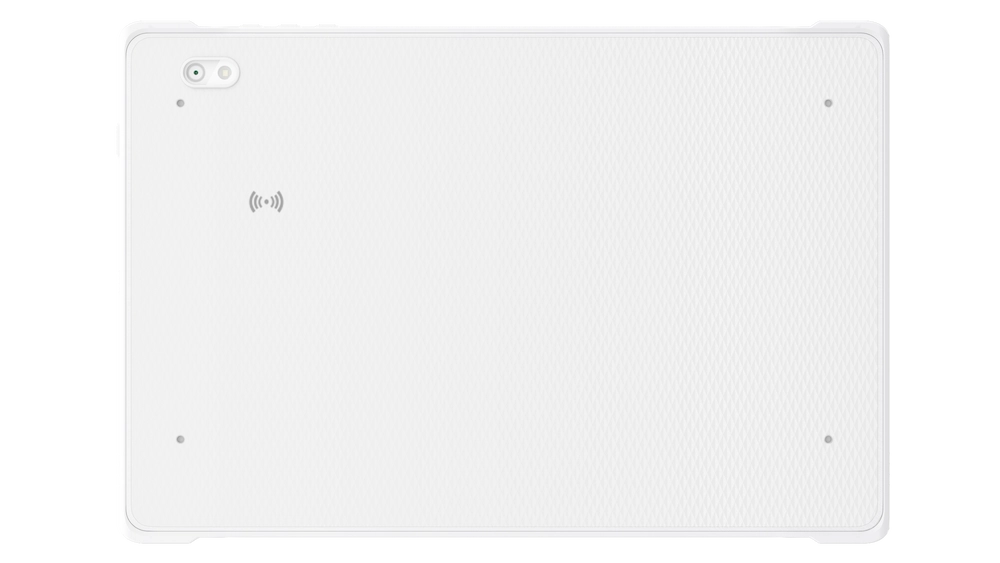

| Camera | Front 5.0MP Rear 13.0MP |
| I/O | USB Type-C x 1, SIM Card x 2, TF Card x 1, (Two out of three Cato) 12pins Pogo Pin x 1 |
| Power | USB Type-C interface, support fast charging PE + 2.0, Maximum Power 18W, Maximum 9V/2A. |
| Performance parameter | |
| CPU | ARM (5G-C) (OCTA Core) |
| OS | Android 11/GMS |
| RAM | 8GB |
| Storage | 128GB |
| Communication | |
| WIFI | WiFi 802.11 a/b/g/n/ac (2.4G+5.0G or 5.1G+5.8G) |
| Bluetooth | BT5.1 Transmission distance: 10m |
| 2G/3G/4G/5G (Optional) | GSM：B2/B3/B5/B8 WCDMA：B1/B2/B5/B8 TDD：B34/B38/B39/B40/B41 FDD：B1/B2/B3/B4/B5/B7/B8/B17/B20/B28a/B28b 5G：N1/N3/N5/N28/N38/N41/N77/N78/N79 |
| GNSS | Support GPS/Galileo/GLONASS/BeiDou(G+G+G+B) |
| Reliability | |
| Operate Temperature | -10 °C ~ 50 °C |
| Store Temperature | -20 °C ~ 60 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified |
| Drop Height | 1m |
| Battery | |
| Capacity | 3.8V/9500mAh |
| Type | Built-in Li-polymer battery |
| Endurance | 13hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
* Please be aware all technical data, specifications and performance figures are subject to change without notice.
Various modules and accessories can be selected to meet customers' application in various industries.
