Intel Core N5100 18.5 inch industrial Panel pc windows P18J

Name: Intel Core N5100 18.5 inch industrial Panel pc windows P18J
Brand: Emdoor Information Co., Ltd.

● Powered by a 11th-gen Intel Celeron Processor with Windows 11 OS;

● Large 18.5-inch immersive display with 10-point capacitive touch;

● WIFI 5 and BT5.0; Supports 4G network connectivity;

● Multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports;

● Standard PPC-hook assembly accessory;

● VESA holes for wall and desktop mounting;

● Wide voltage input range: 12V to 24V;

● Operational temperature range: -20°C to 60°C;

● Anti-electromagnetic interference; IP65-rated front panel

Get A Quote PDF Download

N5100

windows 11

18.5 inch

250cd/㎡

wifi 5

Running 24/7 without

Rich interface extensions

IP65

Features of Intel Core N5100 17 inch industrial Panel pc windows P18J

● Powered by a 11th-gen Intel Celeron Processor with Windows 11 OS;

● Large 18.5-inch immersive display with 10-point capacitive touch;

● WIFI 5 and BT5.0; Supports 4G network connectivity;

● Multiple interfaces: USB, RS232, RJ45, HDMI, and audio ports;

● Standard PPC-hook assembly accessory;

● VESA holes for wall and desktop mounting;

● Wide voltage input range: 12V to 24V;

● Operational temperature range: -20°C to 60°C;

● Anti-electromagnetic interference; IP65-rated front panel

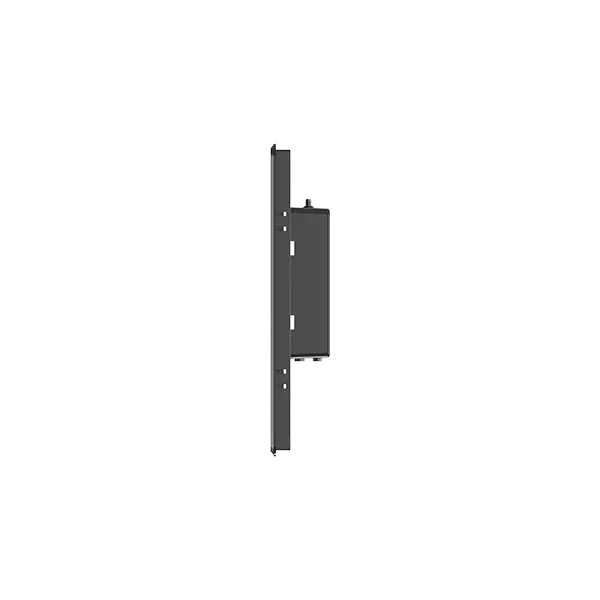

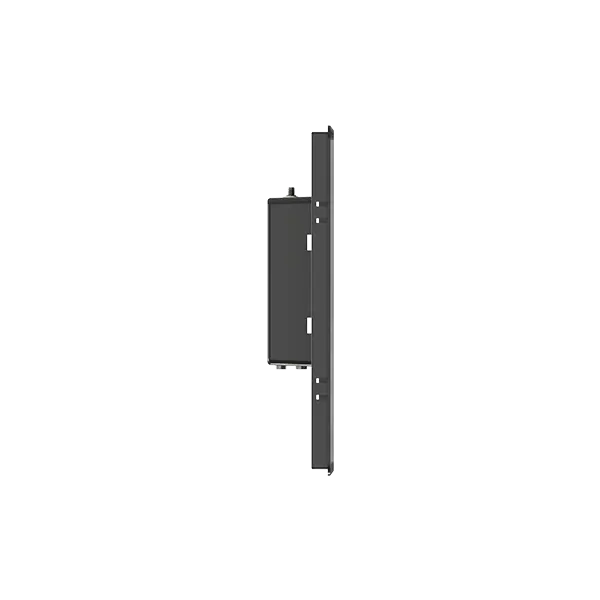

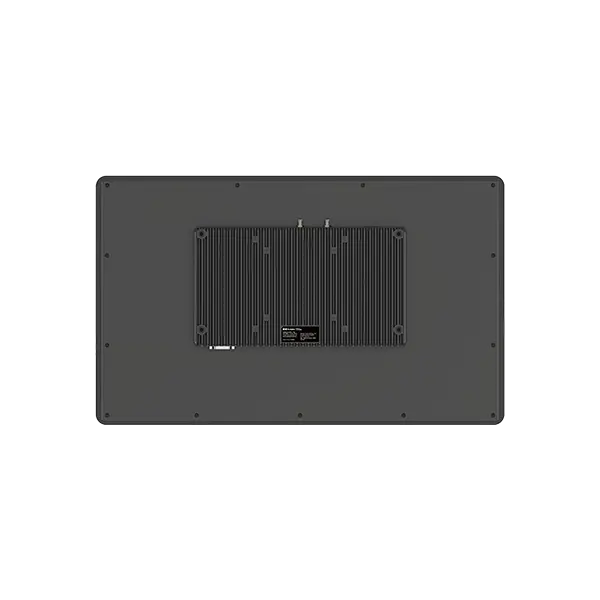

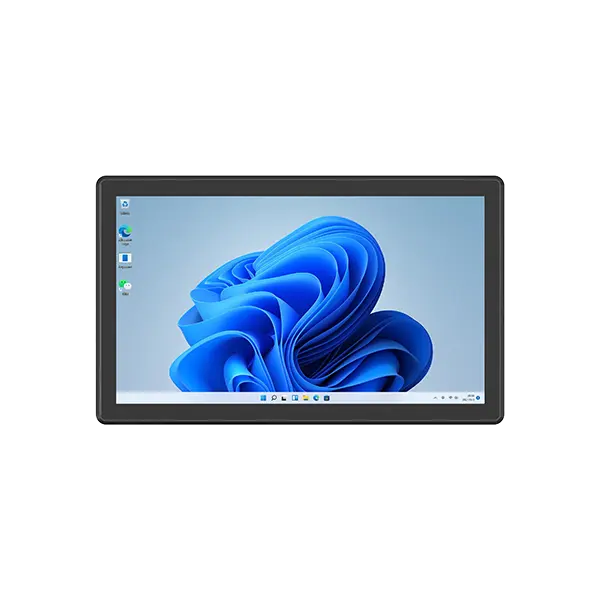

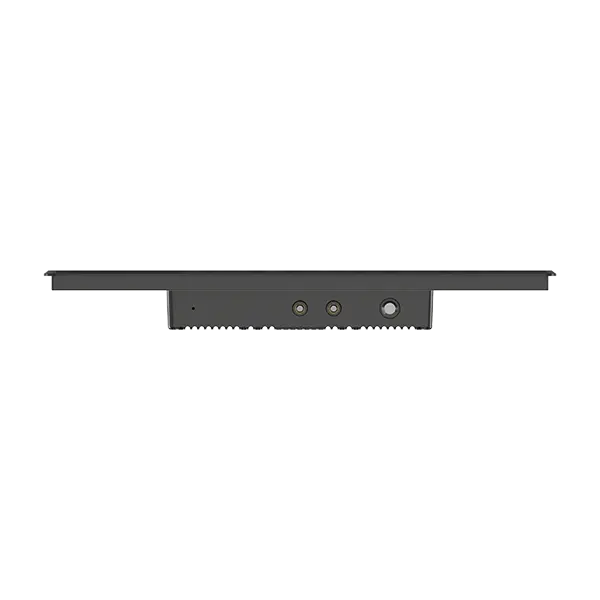

Six Views of Intel Core N5100 17 inch industrial Panel pc windows P18J

Industrial PC

Specification of Intel Core N5100 17 inch industrial Panel pc windows P17J

industrial Panel pc
Dimension	45727954mm
Weight	TBD
Product Color	Black
CPU	Intel® Celeron® Processor N5100
GPU	Intel UHD
Memory	RAM 8GB onboard ROM 128GB
Operating System	Windows 11 Pro/IoT/Home
Display	Type: LCD Size: 18.5 inch 16：9 Resolution: 1920*1080 Brightness: 250 cd/㎡
Touch Pannel	10 PCAP
WIFI	WIFI 802.11(a/b/g/n/ac/ax ) 2.4G+5G , supports WIFI5
Bluetooth	BT5.0
2G/3G/4G	Optional: M. 2 interfaces, USB&PCIE signal compatibility LTE-FDD:B1/3/5/7/8/20 LTE-TDD:B40 WCDMA:B1/5/8 GSM:900/1800

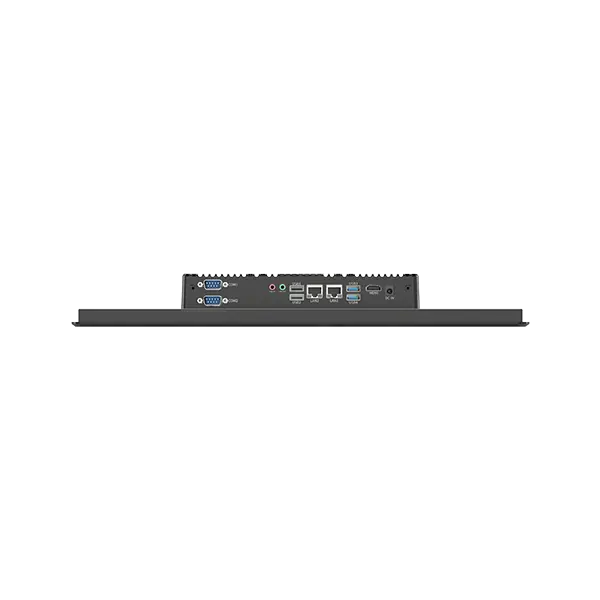

I/O	Standard USB-A USB3.02+USB2.0
	Power interface DC IN 12V-24V Power connector *1
	∮3.5mm Standard Earphone Jack *1
	RJ45 *2 (10M/100M/1000M adaptive)
	DB9 PORT RS232 *2
	HDMI 2.0 Type A *1
Power Adaptor	AC100V to 240V, 50Hz/60Hz output DC 12V/4A

Certification	IP65 Front Panel
Rugged Features	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing

*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
