·Intel Jasper Lake processor Celeron N5100
·10.1 inch FHD screen, 1920x1200
·10-point capacitive touch
·2.4G/5.8G Dual band WIF
·High speed 4G LTE
·BT 5.1 fast transmission
·Front 5.0MP + Rear 8.0MP, autofocus with flashlight
·Support GPS and GLONASS

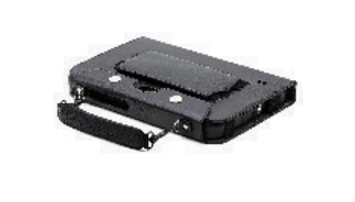

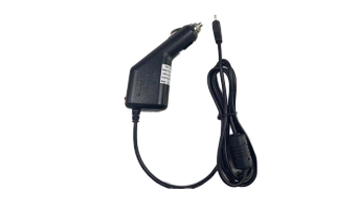

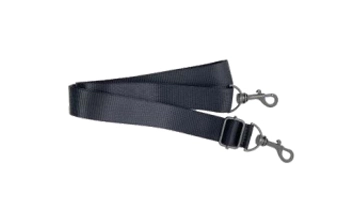

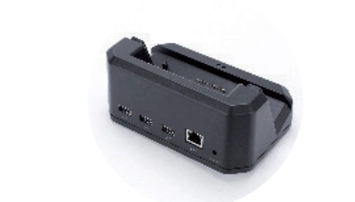

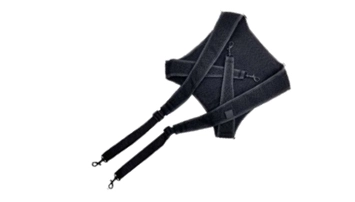

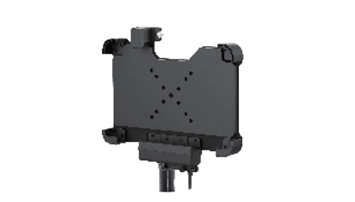

·Equipped with multiple accessories, like docking charger,hand-strap, vehicle mount, car charge, carry handle
·IP65 Waterproof and Dustproof
·Vibration & 1.2m drop resistant
·MIL-STD-810G certified

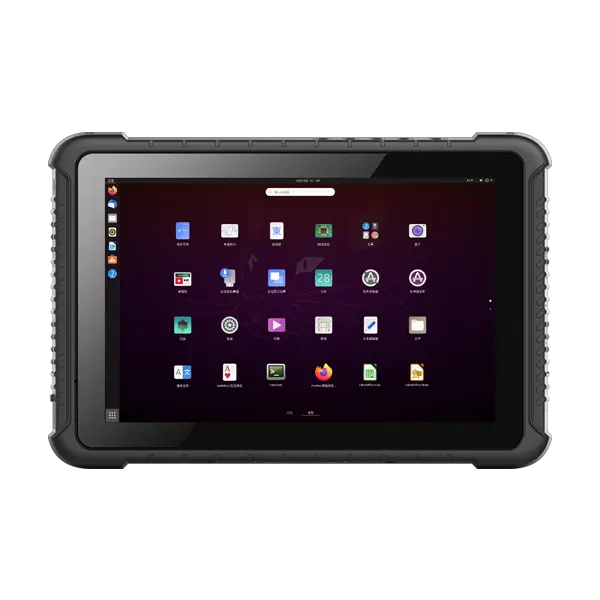

Ubuntu
IP65
GPS
High capacity
Bluetooth
Camera
4G
WIFI
2D
NFC
* All technical data, specification and performance figures subject to change without notice.
| Tech Spec | |

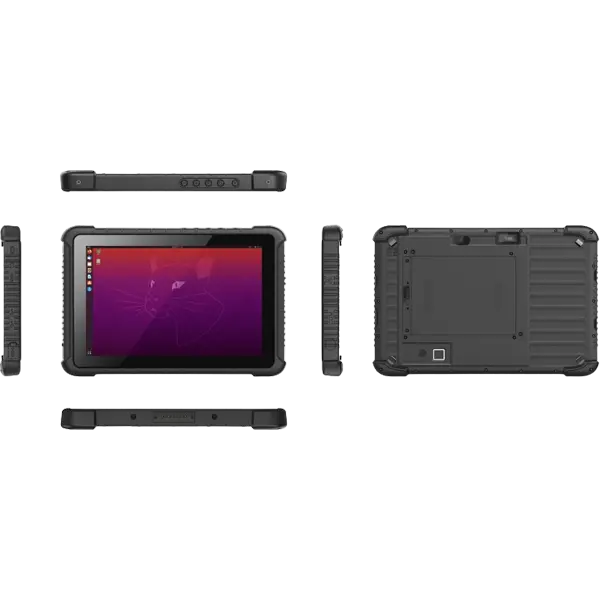

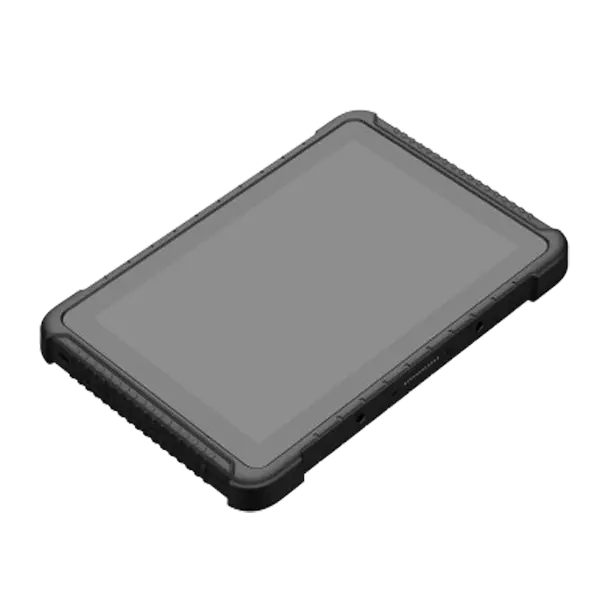

| Product Form | 10.1 inch Rugged Tablet |
| Material | PC+ABS |

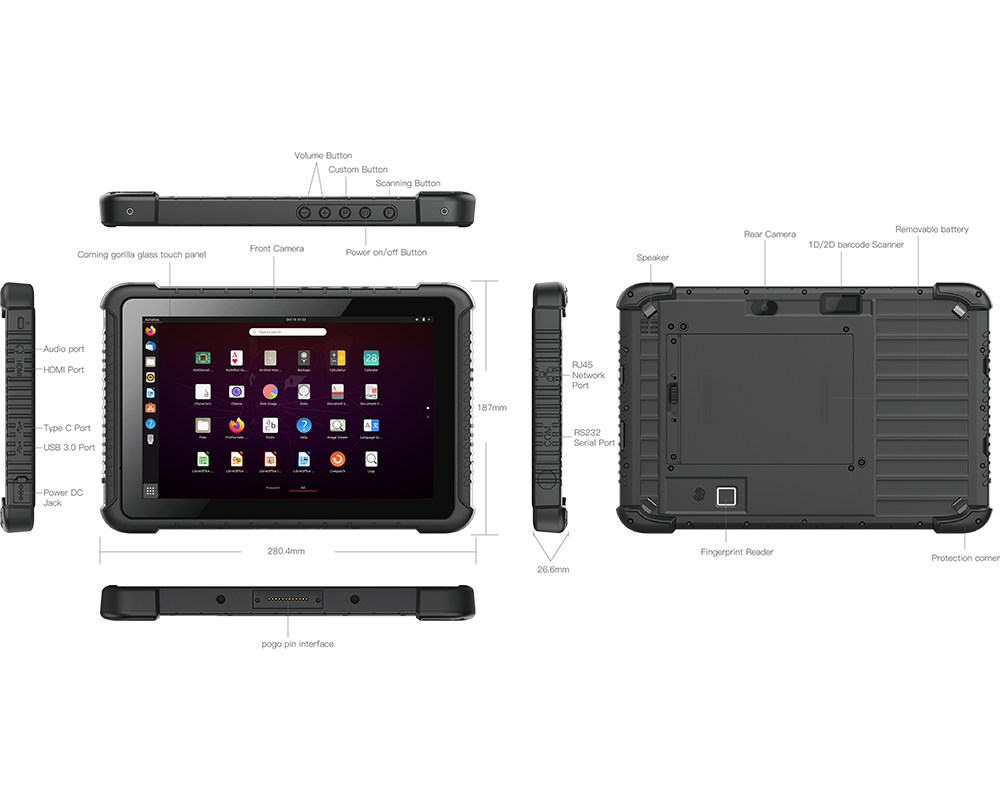

| Dimension | 280.4*187*26.6 mm |
| Weight | 1014g |
| Product Color | Black (black bottom shell, black front shell) |
| CPU | Intel JASPER LAKE N5100 processor, 4-core, 4-thread, embedded 4 MB SmartCache, TDP 6W, Maximum dominant frequency 2.8GHz |
| GPU | Intel® HD Graphics Gen 11 LP |
| Memory | RAM 8GB DDR ROM 128GB EMMC Optional: 4GB Optional: 64GB, Compatible 128GB/256GB |
| Operating System | Ubuntu22.04.4 |
| Display | Type: FHD Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 400cd/㎡ |
| Touch Pannel | 10 points capacitive screen, G+G, hardness above 7H, scratch resistant |
| Camera | Front 5.0MP (MIPI) Rear 8.0MP (MIPI) |

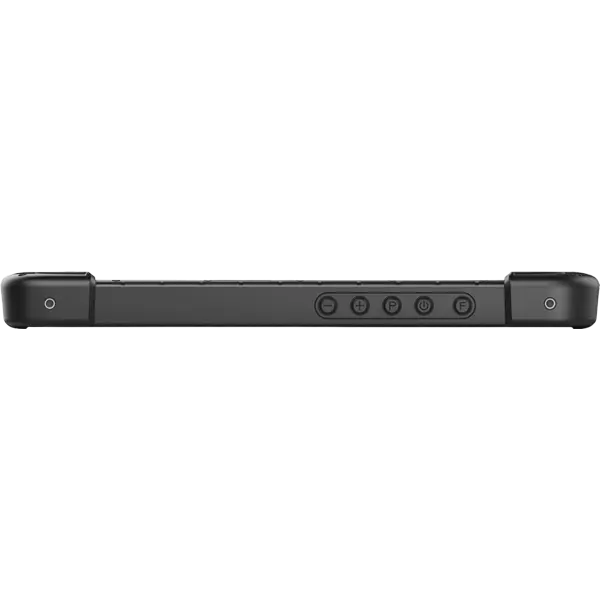

| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Key *1 (Barcode Scanning), When there is no scanning function, it can be customized P Key *1 (HOME Key), When there is no scanning function, it can be customized |
| Speaker | 8Ω/1W Waterproof BOX Speaker *1 |
| Microphone | Sensitivity: -42db, Output Impedance 2.2kΩ |
| Senssors | G_sensor |
| RTC | Built in RTC clock button battery |
| TPM | Built in TPM SLB9670VQ2.0 FW7.85 |
| Battery (Tablet) | Removable Li-polyment Battery 5000mAh/7.4V 6.5 hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | WIFI 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI Intel 9461 |
| Bluetooth | BT5.1 (BLE) class1 Transmited distance：10m |
| 2G/3G/4G | MeiG 750 VE LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8 GSM: 900/1800 China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, Japan Optional, South America or North America module |
| GPS | Support GPS, Glonass |
| I/O Interface | USB3.0 *1, Type C *1 (USB3.0/HDMI/Charging) |
| ∮3.5mm Standard earjack *1 | |
| HDMI 2.0a mini *1 | |
| SIM card *1 | |
| TF card *1，Max: 512GB | |
| DC 19V 3.42A ∮4.0mm jack *1 | |
| 12PIN Pogo Pin *1 | |
| DB9 serial port *1 (RS232) TTL level | |
| RJ45 network port *1 (10/100 adaptive) | |
| Reserved Interface | USB *1, Restructuring |
| Serial port *1, Restructuring | |
| Adapter | AC100V ~ 240V 50Hz/60Hz Output DC 19V 3.42A Optional: EU, US, UK, EN |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE NB | |
| FCC | |
| CCC | |
| MIL-STD-810G | |
| Battery: UN3803, MSDS, Aviation report, Marine report, IEC62133 | |
Various modules and accessories can be selected to meet customers' application in various industries.
