● Equipped with 4-core ARM architecture A55 processor and Debian 11 operating system
● Full 10.1-inch HD display, the IP65-rated front panel protects against water and dust ingress
● Fanless design, excellent in heat dissipation and strong stability performance
● Wide voltage and temperature working performance, perfect for 24/7
use in all weather conditions
● Rich interfaces, including multiple USB/RS232/LAN/HDMI and other I/O ports,
easily meet various scenario requirements
● MiniPCIE slot, can be expanded with communication modules, solid-state drives
and other peripherals
● Support 802.11b/g/n protocol, dual Wi-Fi antennas and Bluetooth 5.0
● Standard PPC mounting hook component, easy to install and supports various installation methods
such as embedded and wall-mounted
RK3568
10.1 inch
700cd/㎡
800*1280
wifi
Running 24/7 without
Rich interface extensions
storage
expansion
IP65
● Equipped with 4-core ARM architecture A55 processor and Debian 11 operating system
● Full 10.1-inch HD display, the IP65-rated front panel protects against water and dust ingress
● Fanless design, excellent in heat dissipation and strong stability performance
● Wide voltage and temperature working performance, perfect for 24/7
use in all weather conditions
● Rich interfaces, including multiple USB/RS232/LAN/HDMI and other I/O ports,
easily meet various scenario requirements
● MiniPCIE slot, can be expanded with communication modules, solid-state drives
and other peripherals
● Support 802.11b/g/n protocol, dual Wi-Fi antennas and Bluetooth 5.0
● Standard PPC mounting hook component, easy to install and supports various installation methods
such as embedded and wall-mounted
Mali-G52-2EE
| industrial panel pc | |
| CPU | RK3568, 2.0GHz |
| Memory | 4GB |
| USB | 1 x USB3.0, 1 x USB3.0 OTG |
| OS support | Debian 11 |
| System Parameter | |
| CPU | RK3568 Quad-core Cortex up to 2.0GHz |
| Chipset | |
| RAM | Onboard 4GB |
| Storage | 64GB |
| I/O | Standard USB-A USB3.0*1 + USB3.0*1 OTG + USB2.0*2 Power interface DC IN 12V-24V Power connector *1 Standard Earphone Jack *1 RJ45 *1 DB9 PORT RS232 *2 HDMI *1 |
| Expansion Slot | Mini-PCIE x 1 |
| OS | Debian 11 |
| Display | |
| Size | 10.1" LCD 10 : 16 |
| Resolution | 800 x 1280 |
| Brightness | 700cd/m 2 |
| Touch Pane | 10 point capacitive touch screen |
| Power | |
| DC | AC100V ~ 240V, 50Hz/60Hz, DC 12V/4A |
| Product Form | |

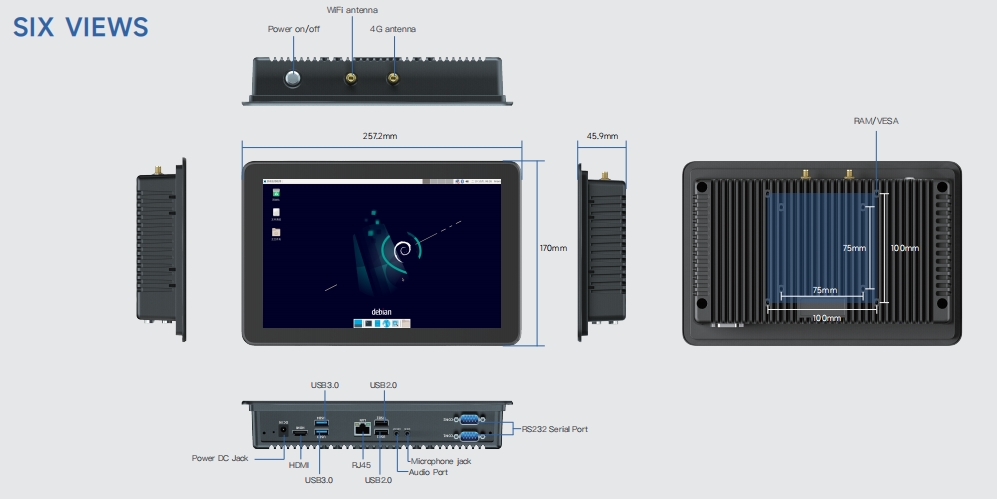

| Dimension | 257.2 x 170 x 45.95 mm |
| Device Color | black |
| Weight | 1.2Kg |
| Reliability | |
| IP Code | IP65 of front panel |
| Operate Temperature | -20℃ to 60℃ |
| Store Temperature | -30℃ to 70℃ |
| Humidity | 95% Non-Condensing |
Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
Various modules and accessories can be selected to meet customers' application in various industries.
