Intel Celeron N5100 15.6 inch Windows Industrial Panel PC P15J ONERugged

Name: Intel Celeron N5100 15.6 inch Windows Industrial Panel PC P15J ONERugged
Brand: Emdoor Information Co., Ltd.

● Full 15.6-inch FHD display, the IP65-rated front panel protects against water and dust ingress.

● Powered by an 11th generation Intel Celeron processor, equipped with Windows 10 operating system

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements

Get A Quote PDF Download

N5100

windows 11

15.6 inch

220cd/㎡

1920*1080

wifi

Running 24/7 without

Rich interface extensions

storage expansion

IP65

Features of Intel Celeron N5100 15.6 inch Industrial Panel PC P15J

● Full 15.6-inch FHD display, the IP65-rated front panel protects against water and dust ingress.

● Powered by an 11th generation Intel Celeron processor, equipped with Windows 10 operating system

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements

● Dual-band Wi-Fi, Bluetooth 5.0, and expandable 4G (M.2 interface), multiple network connection modes

● Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions

● Standard PPC mounting hook component, easy to install and supports various installation

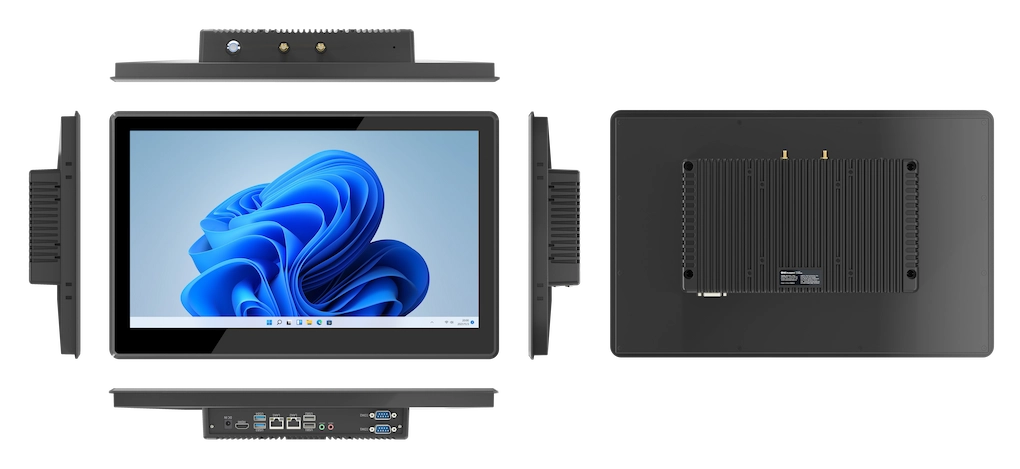

Six Views of Intel Celeron N5100 15.6 inch Industrial Panel PC: ONERugged P15J

Industrial Panel PC

Specification of Intel Celeron N5100 15.6 inch Industrial Panel PC: ONERugged P15J

ONERugged P15J
CPU	Intel®Celeron N5100, up to 2.80GHz
Memory	4GB
USB	2 x USB3.0, 2 x USB2.0
OS support	Windows 11 IOT Optional：Windows 11 Pro Windows 10 Pro/IOT/Home
System Parameter
CPU	Intel® Celeron N5100 CPU, up to 2.80GHz
Chipset	Intel UHD
RAM	Onboard 4GB
Storage	64GB
I/O	USB3.02 USB2.02 Power interface DC 12V Power connector 1 Standard Earphone Jack 1 RJ45 2 DB9 PORT RS232 2 HDMI 2.0a Mini *1
Expansion Slot	M2 x 1
OS	Windows 11 IOT Optional：Windows 11 Pro Windows 10 Pro/IOT/Home
Display
Size	15.6" TFT-LCD 16 : 9
Resolution	1920 x 1080
Brightness	220cd/m 2
Touch Pane	10 point capacitive touch screen
Power
DC	AC100V ~ 240V, 50Hz/60Hz, DC 12V/4A
Product Form
Dimension	388.63 x 248.43 x 54.95 mm
Device Color	black
Weight	2.4Kg
Reliability
IP Code	IP65 of front panel
Operate Temperature	-20℃ to 60℃
Store Temperature	-30℃ to 70℃
Humidity	95%@40℃, Non-Condensing

Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
