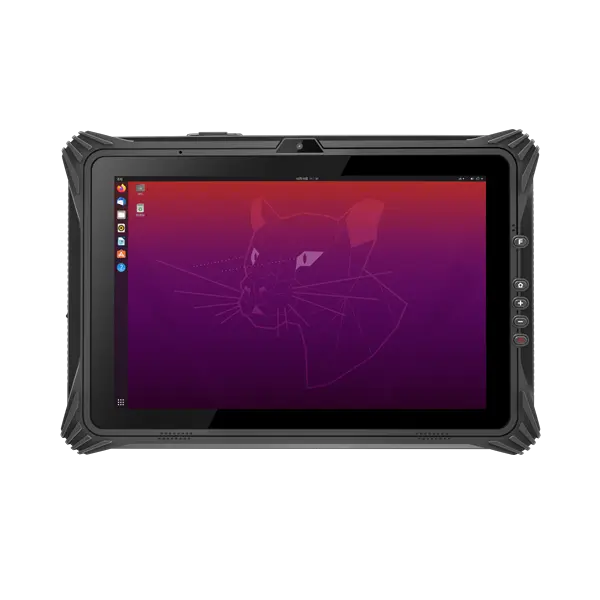

Emdoor Info. Rugged Tablet PC EM-I20A(Linux)

Name: Emdoor Info. Rugged Tablet PC EM-I20A(Linux)
Brand: Emdoor Information Co., Ltd.

·Intel Core i5-1235U/i7-1255U processor

·Ubuntu OS and 16GB RAM＋128GB storage

·12.2 inch IPS Full HD screen with 10-point capacitive touch

·2.4G/5.8G Dual band WIFI 6

·Optional high speed 5G

·BT 5.1 fast transmission

·Choose 1 from 4 modules (2D scan engine, RJ45 Gigabit Ethernet, DB9 and USB2.0 )

·Support GPS, GLONASS, optional Beidou

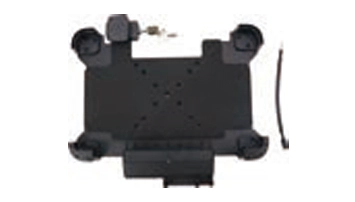

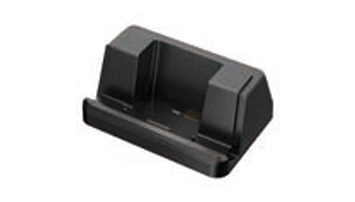

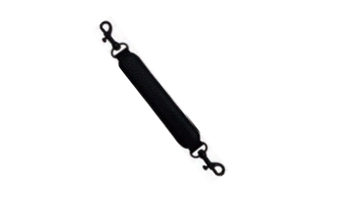

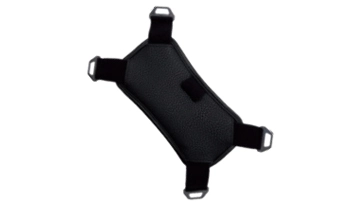

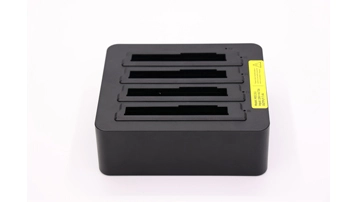

·Equipped with multiple accessories, like docking charger, hand-strap, vehicle mount, carry handle

·IP65 Waterproof and Dustproof, Anti-Static

·Vibration & 1.22m drop resistant

·MIL-STD-810G certiﬁed

Get A Quote PDF Download

Ubuntu

IP65

GPS

Dual-battery

Bluetooth

NFC

4G/5G

WIFI

Camera

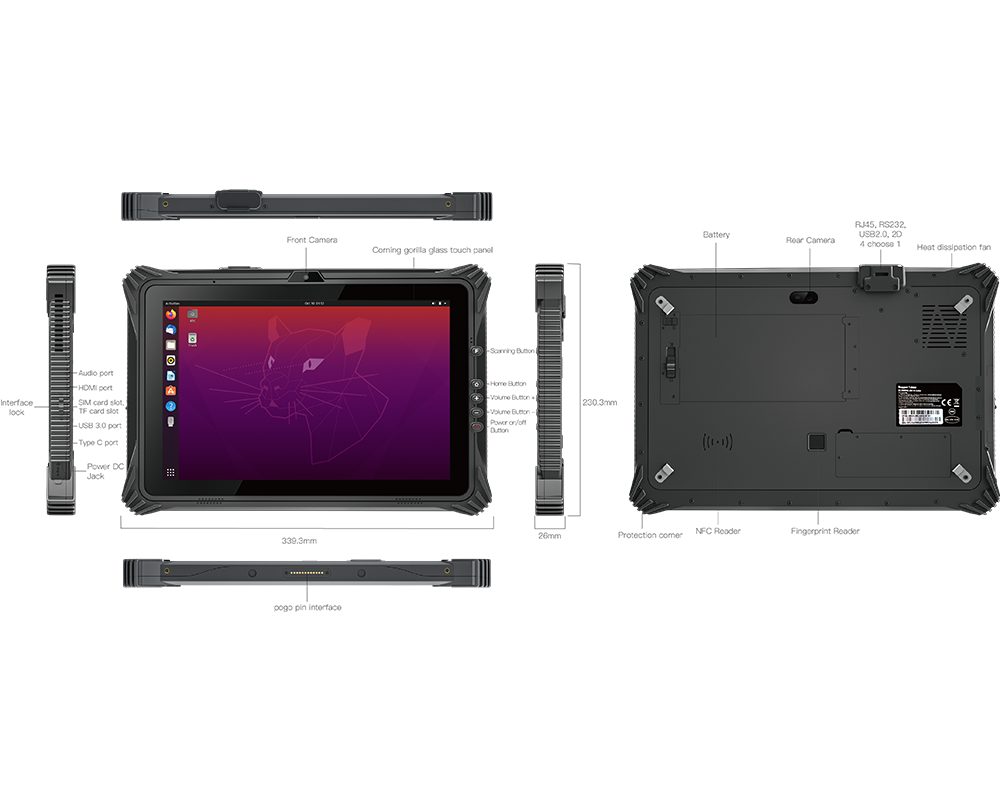

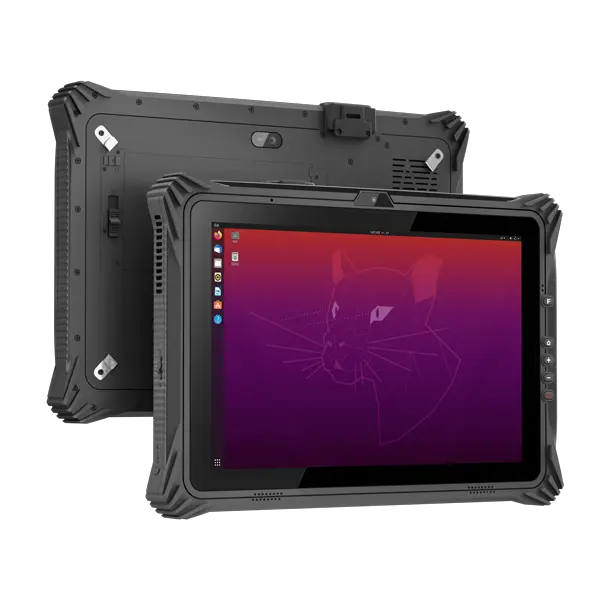

Six Views of EM-I20A: 12.2 inch Rugged Tablet PC Linux

Rugged Tablet PC

* All technical data, speciﬁcation and performance ﬁgures subject to change without notice.

Speciﬁcations of EM-I20A: 12.2 inch Rugged Tablet PC Linux

Tech Spec
Product Form	12.2 inch Rugged Tablet
Material	-
Dimension	339.3230.326 mm
Weight	1500g
Product Color	Black + Black

CPU	i5-1235U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 0.9GHz~4.4GHz Optional: i7-1255U, TDP15W, 2P-Cores, 8E-Cores, 12threads, 1.2GHz~4.7GHz
GPU	Intel® Iris® Xe Graphics eligible
Memory	RAM 16GB DDR4L ROM 128GB SSD

Operating System	Ubuntu22.04.4

Display	Type: LCD Size: 12.2 inch 16:10 Resolution: 1200*1920 Brightness: 650cd/㎡
Touch Pannel	10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support stylus Optional 10 points capacity TP, G+G, Hardness over 7H, Scratch resistant, Support glove touch

Camera	Front 2.0MP Rear 8.0MP (USB)

Buttons	Power 1 Volume Key + 1 Volume Key - 1 Windows Home 1 F Key *1 (Barcode Scanning, Customizable without barcode)

Speaker	8Ω/1W Waterproof Speaker *1
Microphone	Sensitivity: - 44dB±3DB
Senssors	G_sensor
Fan	IPX5 Fan *1
RTC Battery	3V 210mAH Continuous discharge current: 0.2mA Diameter: Ø20.0mm Max Thickness: 3H.2mm
Small Battery	Build in Lithium-ion polymer battery, Non-removable 7.4V/700mAh 30mins ( 50% volume sounds, 200 nits brightness, 1080P HD video display by default )

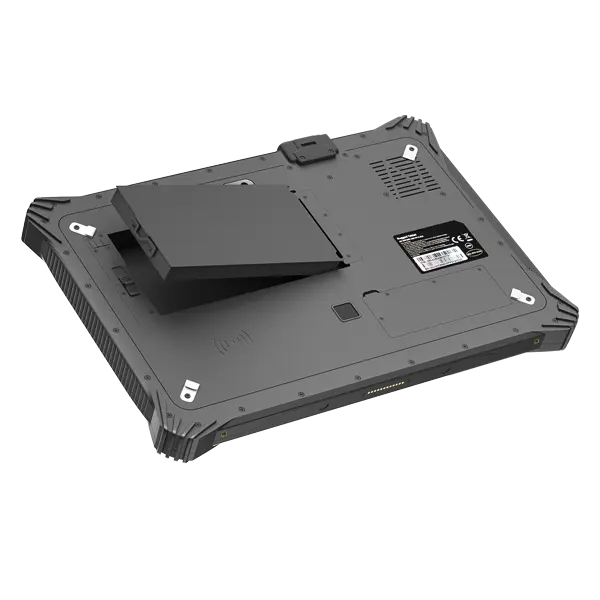

Big Battery	Removable Li-polyment Battery 7.4V/6300mAh 4.5hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default )

WIFI	Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI
Bluetooth	BT5.1 (BLE) class1 Transmited distance：10m
4G	MeiG 750 VE LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8 GSM: 900/1800 China (China Unicom Telecom, mobile support is not good, only B8 supports no TDD band) Europe, Middle East, Africa, Taiwan, Japan Optional: MeiG North America and South America modules
5G	Optional
GPS	U-blox M7N, Support: GPS, glonass Optional: U-blox M8Q, Support: GPS, Beidou, glonass

I/O Interface	USB3.0 *1
	Type C (USB3.0/HDMI/Charging) *1
	∮3.5mm Standard earjack *1
	HDMI 2.1a mini *1
	SIM card *1
	TF card *1，Max: 128GB
	DC 19V 3.42A jack *1
	12PIN Pogo Pin (USB/Docking charging) *1

Adapter	AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approval Optional: EU UK
Power Indicator	1. Power on, power indicator always on 2. Shut down and the power indicator is off 3. Sleep, power indicator flashes 4. When the battery switch is turned to A and the adapter is not connected, the power indicator flashes
Battery Indicator	1. During charging, the charging indicator is always on (red) 2. When the charge is full, the charging indicator is always on (blue) 3. If the large battery is disconnected, the charging indicator will flash (red) 4. Low power 10% is not connected to the adapter, and the charging indicator flashes quickly (red)

Rugged Features	MIL-STD-810G: 1.22m drop
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge
	Humidity: 95% Non-Condensing

Certification	IP65
	CE
	CCC
	MIL-STD-810G
	Battery: UN3803, MSDS, IEC62133, aviation report, marine report
