Rugged Outdoor Tablet Tech Spec |
Product Form | Rugged Tablet |
Material | ABS+PC |
Dimension | 263.41*178*19.1mm |
Weight | About 1000g |
Product Color | Black+Orange |
|
CPU | MT6878 |
GPU | Mali-G615 |
Memory | RAM 12GB LPDDR5 ROM 256GB UFS3.1 |
|
Operating System | Android 15/ GMS |
|

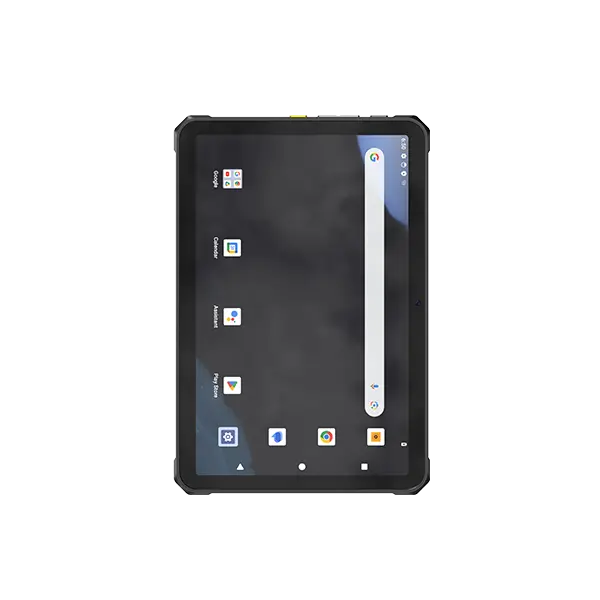

Display | Type: TFT Size: 10.95 inch 16:10 Resolution: 1200*1920 Brightness: 450cd/㎡ Support wet hands and gloves operation. |
Touch Pannel | Asahi glass cover, 10-point capacitive, 6H+ hardness, scratch-resistant. |
|

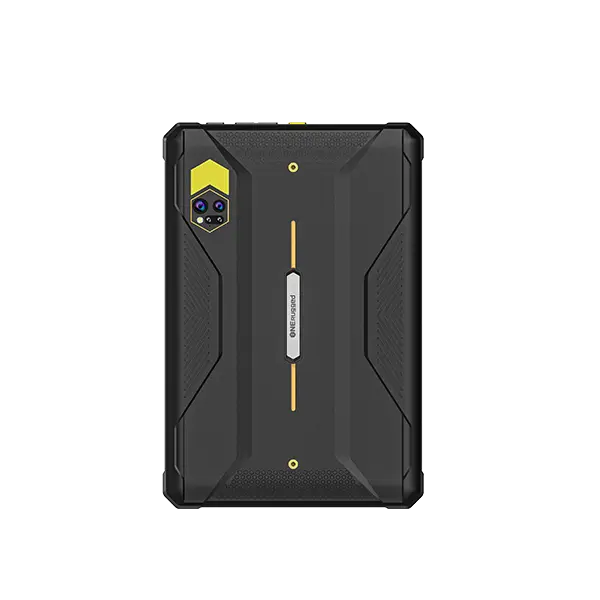

Camera | Front Camera 32MP, Fixed Focus Rear Main Camera 64MP, Autofocus, Supports PDAF Night Vision 20MP, Autofocu |
Flashlight | True Flash |
|

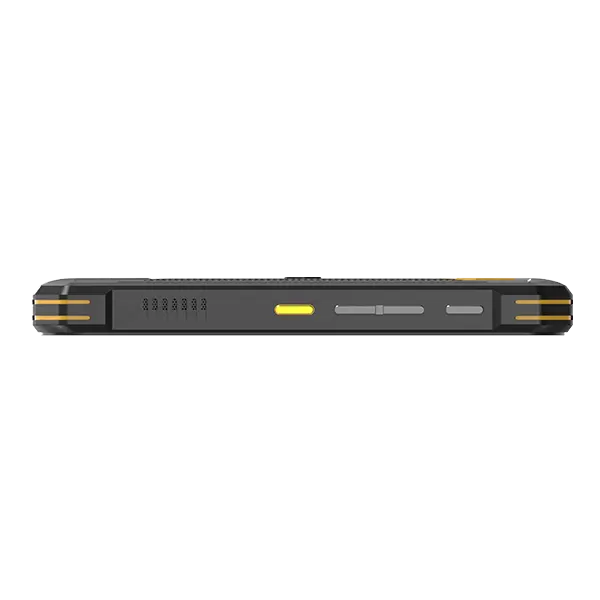

Buttons | Power *1 Volume + Key *1 Volume - Key *1 |
|
Indicator Light | Indicator light *1, R/G dual-color light: Red constant when charging, green constant when fully charged (above 90%), red flashing when low battery (0-15%), off when discharging. |
|
Audio | Speaker*2 Each 6Ω/1.5
Dual MIC Motor*1 Audio SMART PA |
Sensor | Geomagnetic Sensor (Compass), Gyroscope, Gravity Sensor, Ambient Light Sensor, Barometer |
Battery | Built-in Polymer Lithium-ion Battery 20000mAh/3.87V Battery Life: TBD Charging Power: 33W/PD 3.0 PPS Protocol Charging Time: TBD |
|
WIFI | IEEE802.11 a/b/g/n/ac/ax, Supports WIFI6E, Support frequency 2.4G+5.0G+6G |
Bluetooth | BT5.4 (BLE) class1 Transmission Distance: 30m |
5G | GSM:B2/3/5/8 WCDMA:B1/2/4/5/6/8/19 (With RXD) CDMA:BC0/BC1/BC10 (With RXD) TDD:B34/38/39/40/41 FDD:B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/30/66 5G:N1/3/5/7/8/20/28/38/40/41/77/78 |
GPS | Supports L1+L5 GPS/Beidou/Galileo/GLONASS Supports AGPS Cold Start Time:<60s |
|

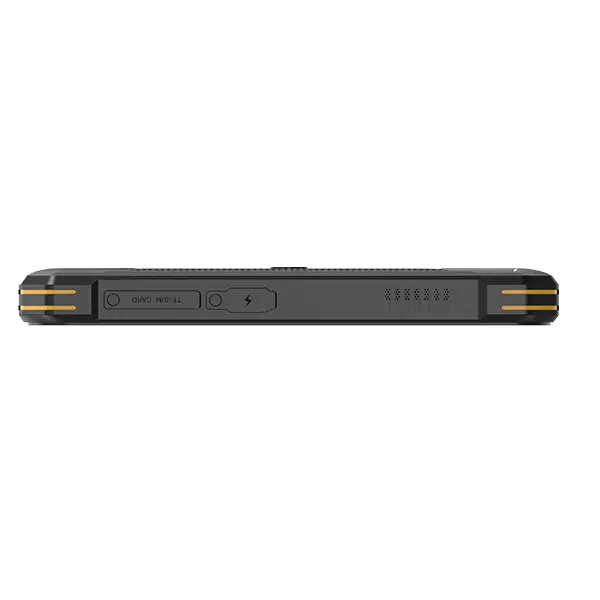

I/O Interfaces | Type C *1 (Charging/Data/Earphone/Reverse charging 6W) |
TF Card *1 (MAX 2TB) SIM Card *2 2 of 3 card slot (Nano Sim+TF or Nano Sim+Nano Sim) |
|
|
Power Adapter | USB Type-C port, Charging Power: 33W |
Type-C Cable | Type-C Cable (1m) |
|
Rugged Features | Drop Height: Withstands drops from 1.22 meters onto composite wood flooring, while powered on. |
Working temperature: -20 °C to 60 °C |
Storage temperature: -30 °C to 70 °C |
Humidity: 95% Non-Condensing |
Electrostatic Discharge: Contact Discharge ±8KV, Air Discharge ±12KV |
OVP: Threshold 20V |
EOS: VBUS 300/80us VBAT 300v/20us |
|
Certifications | IP68 |
CE |
CCC |
FCC |
MIL-STD-810H |
|
Data Collection | NFC Supports ISO18092, ISO14443 A/B, ISO15693 protocols, Mifare compliance,Card reading distance from 0 to 4 cm,Frequency: 13.56MHz |
