EM-I18N: 10.1 inch Rugged Tablet PC

Name: EM-I18N: 10.1 inch Rugged Tablet PC
Brand: Emdoor Information Co., Ltd.

·Equipped with the latest Intel Alder Lake Processor N100

·Windows 11 OS, unleash robust production power

·Support 10-point capacitive touch and glove touch functionality

·Built-in 2.4GHz and 5.8GHz dual-band Wi-Fi ·Bluetooth 5.2 with wider range and faster speeds

·Equipped with 3G/4G module for stable signal outdoors

·Choose 1 from 3 modules(USB 2.0, Gigabit Ethernet, and RS232 serial port)

·Equipped with a 5MP front camera and an 8MP rear camera

·Standard GPS+Glonass,optional GPS+Beidou for accurate positioning

Get A Quote PDF Download

windows

IP65

GNSS

Removable battery

Bluetooth

2D(optional)

NFC(optional)

wifi

camera

Features of EM-I18N: 10.1 inch Rugged Tablet PC Intel Alder Lake N100 Windows 11

·Equipped with the latest Intel Alder Lake Processor N100

·Windows 11 OS, unleash robust production power

·Support 10-point capacitive touch and glove touch functionality

·Built-in 2.4GHz and 5.8GHz dual-band Wi-Fi ·Bluetooth 5.2 with wider range and faster speeds

·Equipped with 3G/4G module for stable signal outdoors

·Choose 1 from 3 modules(USB 2.0, Gigabit Ethernet, and RS232 serial port)

·Equipped with a 5MP front camera and an 8MP rear camera

·Standard GPS+Glonass,optional GPS+Beidou for accurate positioning

·Optional 2D barcode scanning engine supports efficient decoding

·Optional NFC module, supports mainstream NFC card reading applications

·Featured a back panel made of PC material with a TPU frame

·Brand-new cooling system with thermal conductive materials

·IP65-rated dust and water resistance,MIL-STD-810H certified

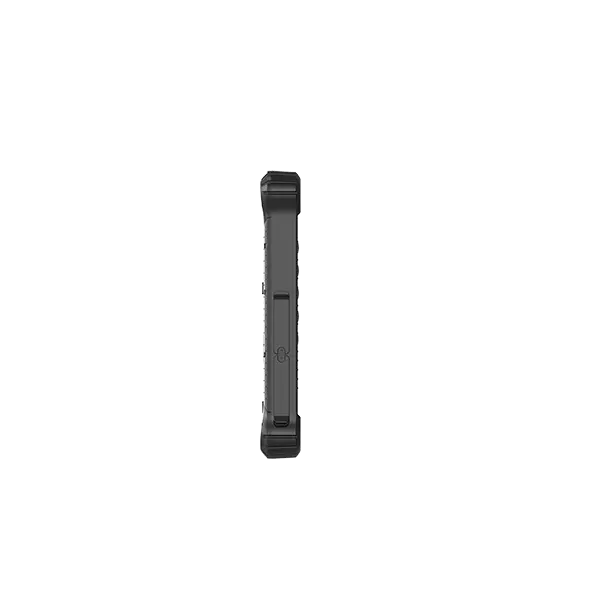

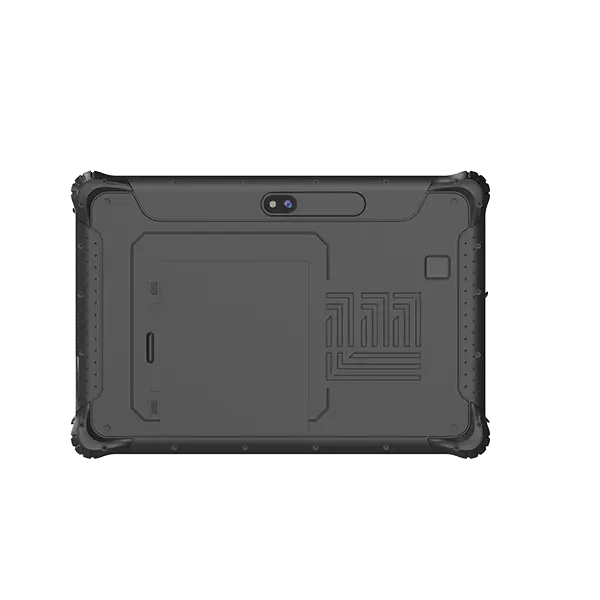

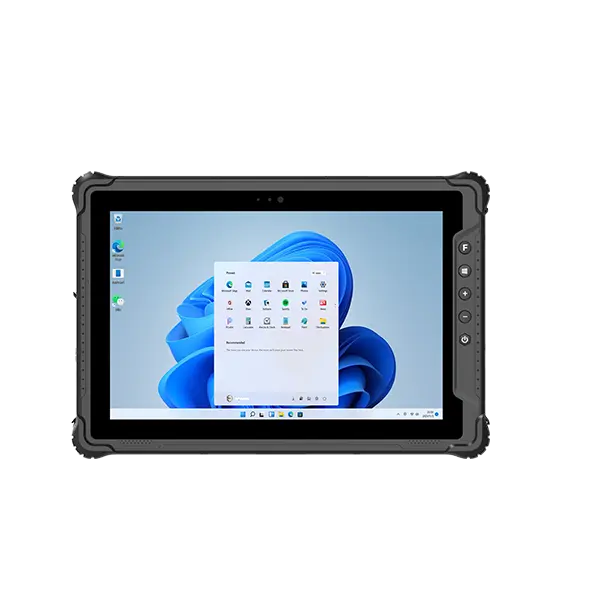

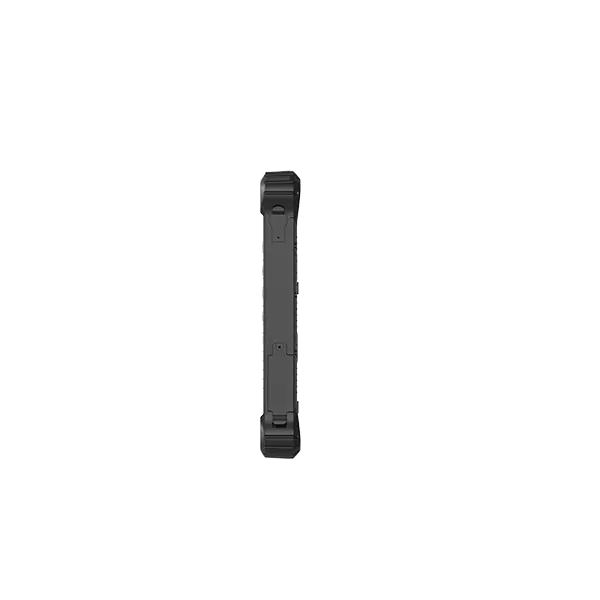

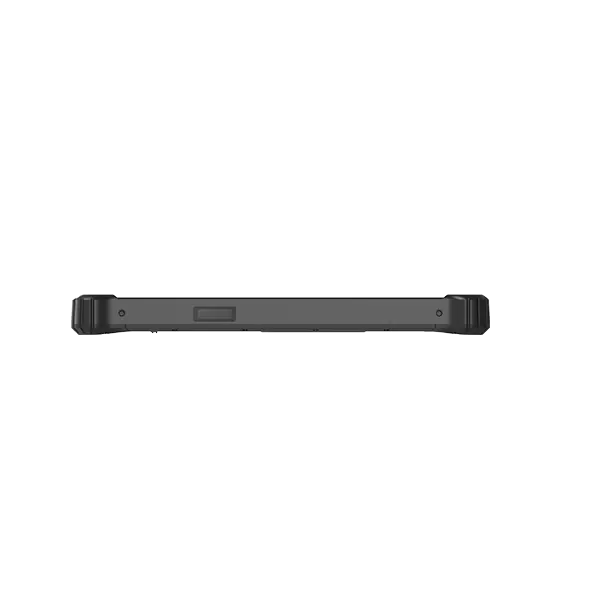

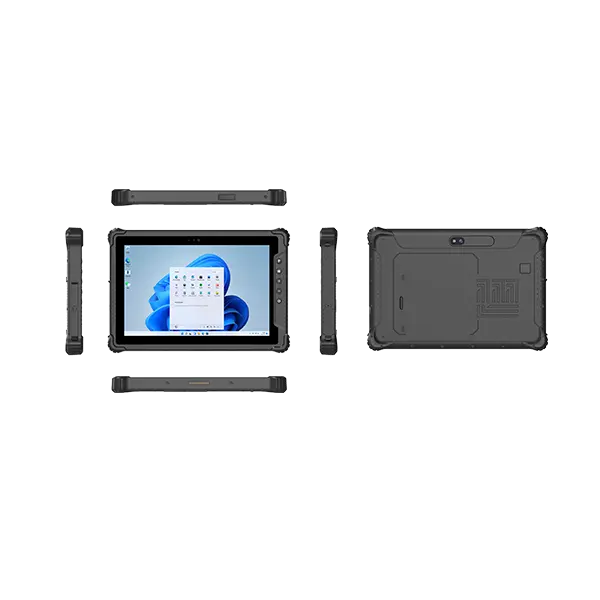

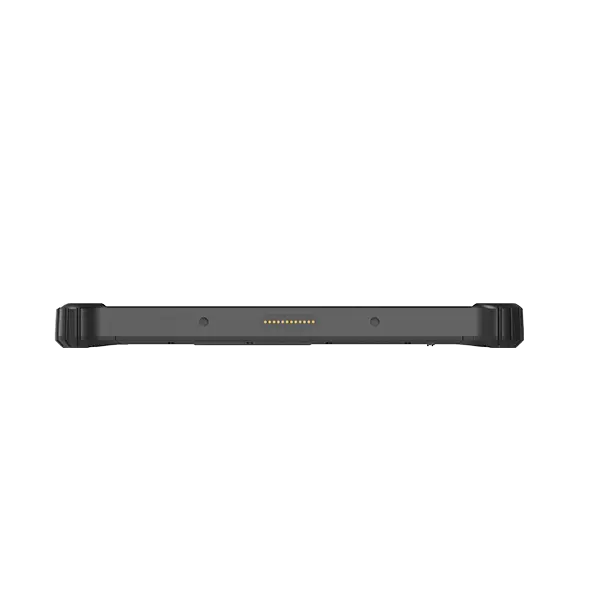

Six Views of EM-I18N: 10.1 inch Rugged Tablet PC Intel Alder Lake N100 Windows 11

Rugged Tablet PC

Specification of EM-I18N: 10.1 inch Rugged Tablet PC Intel Alder Lake N100 Windows 11

Tech Spec
Product Form	10.1-inch Vehicle PC
Material	PC+TPU
Dimensions	274.9188.722.2mm
Weight
Product Color	Caesious
CPU	Intel Alder LAKE N100
GPU	Intel® UHD Graphics
Memory	RAM 8GB LPDDR5 Optional: 16G ROM 128GB EMMC

Operating System	Windows 11 Home
Display	Type: IPS Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 1000cd/㎡
Touch Pannel	10-Point Capacitive Screen
Camera	Front 5.0MP Rear 8.0MP
Buttons	Power 1 Volume + Key 1 Volume - Key 1 P1 Key 1 (HOME Key) F Key *1 (Barcode Scanning, Connected to GPIO)
Speaker	Built in 8Ω/1W Waterproof Speaker *2
Microphone	Sensitivity: -42dB, Output Impedance: 2.2kΩ
Battery	Removable Polymer Lithium-ion Battery 7.6V/5000mAh hrs (Default 50% Volume, Default 50% Volume Brightness, Play 1080P HD Video)
RTC	3V 1mAH Rechargeable Surface-Mount
G-Sensor	G-Sensor
WIFI	WIFI6 802.11(a/b/g/n/acR2/ax 1x1) Frequency: 2.4G+5.8G Dual-band WIFI
蓝牙	BT5.2
2G	NA
3G	WCDMA: B1/5/8
4G	EURO： LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD B38/B40/B41
GPS	Supports GPS, Glonass; Capture Sensitivity: -140 dBm; Cold Start Time:<50 seconds, Hot Sstart Time: <5 seconds; GPS Frequency: 1575.42MHz Optional: GPS + BeiDou
Fingerprint	Standard
2D	Optional: Honeywell N3680 Hardware Decoding Optical Resolution: 5mil Scanning Speed: 50 scans/s Supported Barcode Types: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
NFC	Optional: NXP300/NFC 13.56MHz Supports 14443A/14443B/15693/18092/mifare protocols of ISO/IEC
I/O Interfaces	USB 3.0 *1 (Type A)
	Type C *1 (Data & Charing)
	∮3.5mm Standard Earphone Jack *1
	TF *1
	SIM Card *1
	DC 12V 4A Power Port x1 （Male Plug outer diameter 5.5mm）
	HDMI 2.0 mini *1
	12PIN Pogo Pin *1
Choose 1 from 3	USB 2.0 *1 (4pin)
	RJ45 Adaptive, Recognizes 1000M Network Card (Standard）
	RS232 Serial Port
Adapter	AC100V to 240V, 50Hz/60Hz output DC 12V/4A wall plug European Standard, with CE Certification Optional: US Standard, Chinese Standard, UK Standard
Rugged Features	MIL-STD-810H: 1.22m drop resistance
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing

Certifications	IP65
	CE NB
	FCC
	RoHS
	CCC
	MIL-STD-810H
	Battery: UN38.3, MSDS, Air and Maritime Reports, IEC62133

*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
