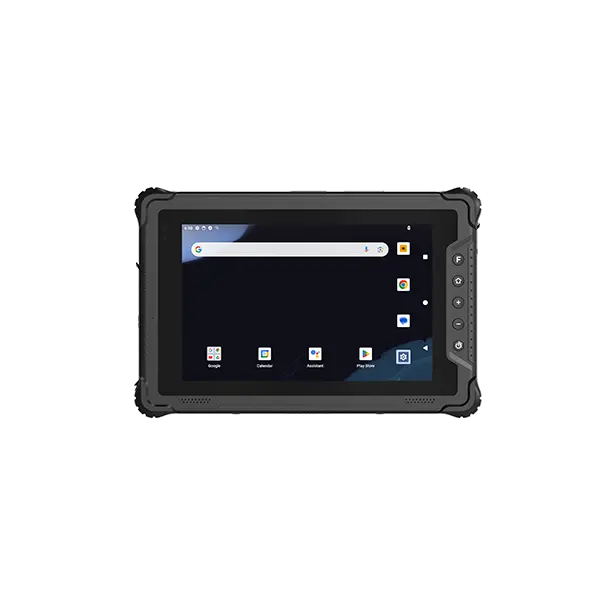

EM-Q885M: 8 inch Rugged Tablet PC 5G modem Android 14

Name: EM-Q885M: 8 inch Rugged Tablet PC 5G modem Android 14
Brand: Emdoor Information Co., Ltd.

·Qualcomm Kryo™ 670 CPU and the AI-accelerated Qualcomm Hexagon™ 770 processor

·Android 14 OS, paired with 8GB+128GB of expansive memory

·8-inch screen,with a high-capacity 10000mAh battery

·Integrated with a 5G modem and RF system,it supports mmWave and sub-6 GHz bands

·Constructed with wear-resistant materials, shock-absorbing architecture, and protective corner design

·Certified with IP65 dust and water resistance

·Rigorously tested to MIL-STD-810H standards,1.22m drop protection

Get A Quote PDF Download

Android

IP65

GPS

High-capacity

camera

NFC

Bluetooth

wifi

Features of EM-Q885M: 10 inch Rugged Tablet PC 5G modem Android 14

·Qualcomm Kryo™ 670 CPU and the AI-accelerated Qualcomm Hexagon™ 770 processor

·Android 14 OS, paired with 8GB+128GB of expansive memory

·8-inch screen,with a high-capacity 10000mAh battery

·Integrated with a 5G modem and RF system,it supports mmWave and sub-6 GHz bands

·TDD and FDD modes, and SA and NSA network deployments, covering nearly all critical regions worldwide

·GPS/GLONASS/Beidou navigation, L1+L5 dual-band positioning

·Supports NFC fast card reading, multiple communication protocols ·Optional QR Code Module, quickly scan various 1D and 2D barcodes

·Constructed with wear-resistant materials, shock-absorbing architecture, and protective corner design

·Certified with IP65 dust and water resistance

·Rigorously tested to MIL-STD-810H standards,1.22m drop protection

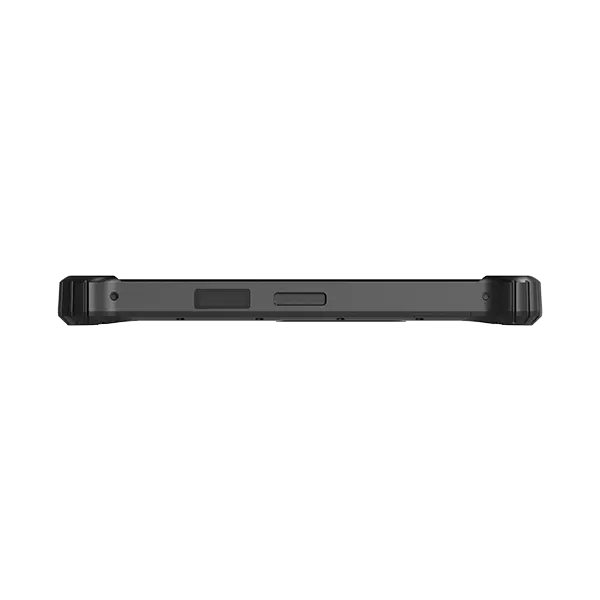

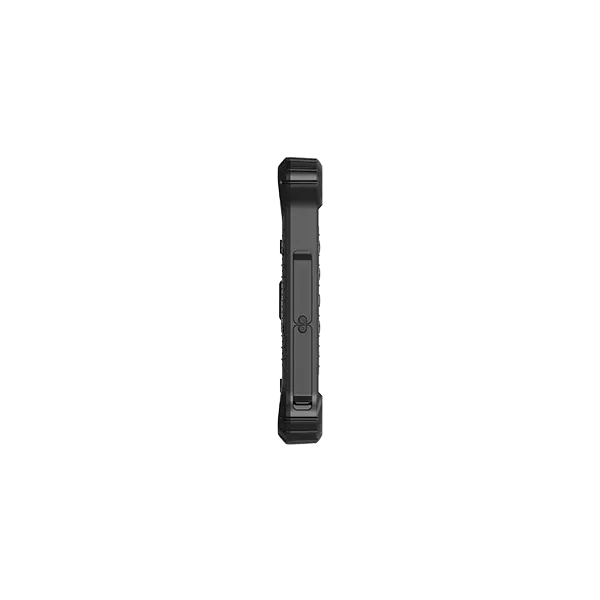

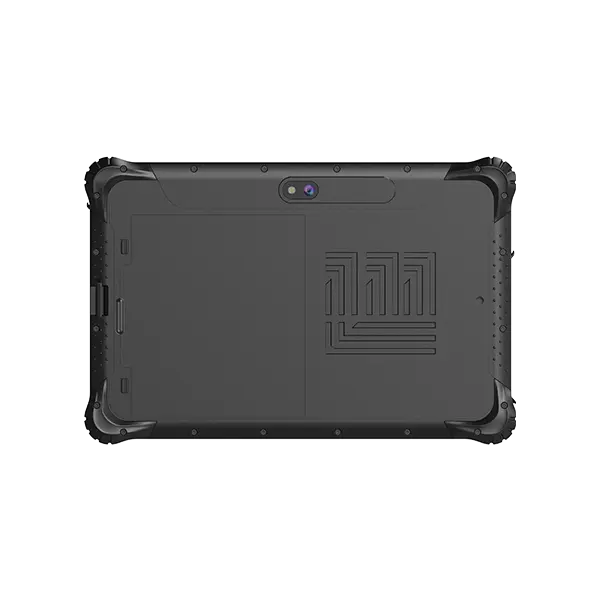

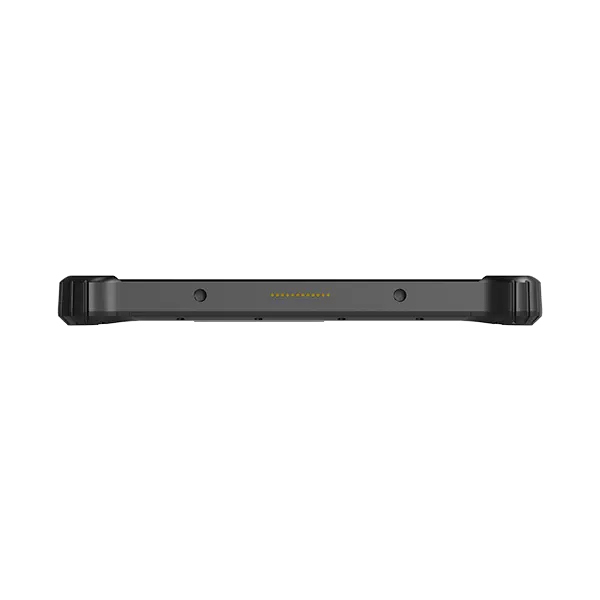

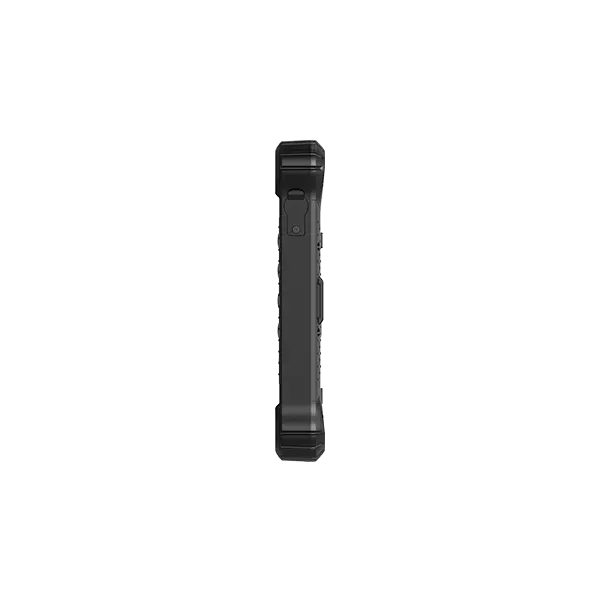

Six Views of EM-Q885M: 10 inch Rugged Tablet PC 5G modem Android 14

Specification of EM-Q885M: 10 inch Rugged Tablet PC 5G modem Android 14

Tech Spec
Product Form	8-inch Rugged Tablet PC
Dimension	236.7155.720.8mm
Weight	820g
Product Color	Grey

CPU	Octa-core 2.7G QCM6490
GPU	Adreno™ GPU 643
Memory	RAM 8GB LPDDR4x ROM 128GB EMMC

Operating System	Android 14/GMS
Display	Type: FHD Size: 8 inch 16:10 Resolution: 1200*1920 Brightness: 550cd/㎡
Touch Pannel	5-point Capacitive Touchscreen, G+G, Tempered Glass, Hardness 7H

Camera	Front 5.0MP Rear 13.0MP Supports autofocus, with flashlight

Buttons	Power 1 (Yellow) Volume + Key 1 Volume - Key 1 P1 Key 1 (HOME Key) F Key *1 (Barcode Scanning)

Speaker	Built in 8Ω/1W Waterproof Speaker *2
Microphone	Sensitivity: -42db, Output Impedance 2.2kΩ
Battery	Removable Polymer Lithium-ion Battery 3.8V/10000mAh 6 hrs (Default 50% volume, Connected to WiFi, Default 200 nits brightness, Playing 1080P HD video)
Sensors	G-sensor, Light sensor, Gyroscope, Compass
RTC	Built-in rechargeable 3V/1mAh lithium-ion battery

WIFI	Wi-Fi 6E
Bluetooth	BT5.2 (BLE)
2G/3G/4G/5G	5G:SA/ NSA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 77/ 78/79 4G: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 17/ 18/ 19/ 20/ 26/ 28/ 32/ 34/ 38/ 39/ 40/ 41/ 42 3G: B1/ 2/ 4/ 5/ 6/ 8/ 19 2G: B2/ 3/ 5/ 8


GPS	Supports: GPS/GLONASS/BDS; Dual-frequency L1 + L5;

2D	Optional, Hardware Decoding M1/Software Decoding SE4710 Optical Resolution: 5 mil Scanning Speed: 50 scans/second Supported Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse
NFC	NFC 13.56MHz Supports 14443A/14443B/15693 of ISO/IEC, Reading Distance: 0 to 4cm

I/O Interfaces	USB 3.0 *1 (Type A)
	Type C *1 (Data & Charing)
	∮3.5mm Standard Earphone Jack *1
	Nano-SIM x 2/Micro SD Supports up to 512GB x 1 +Nano-SIM x 1 (three-in-one card slot)
	DC Supports 5V/4A Charging
	12PIN Pogo Pin *1
	HDMI *1

Power Adapter	Power Input 100-240VAC0.5A50/60Hz DC Output 5V/4A, DC Head: 3.51.3511mm

Rugged Features	MIL-STD-810H: 1.22m Drop Resistance
	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing

Certifications	IP65
	CE NB
	FCC (Optional)
	CCC（Optional）
	MIL-STD-810H
	CEC
	Battery: UN38.3, MSDS, Aviation and Maritime Report, IEC62133

*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
