Intel Celeron N5100 15.6 inch Linux Industrial Panel PC P15J ONERugged

Name: Intel Celeron N5100 15.6 inch Linux Industrial Panel PC P15J ONERugged
Brand: Emdoor Information Co., Ltd.

● Full 15.6-inch FHD display, the IP65-rated front panel protects against water and dust ingress.

● Powered by an 11th generation Intel Celeron processor, equipped with Ubuntu operating system

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements

Get A Quote PDF Download

N5100

15.6 inch

220cd/㎡

1920*1080

wifi

Running 24/7 without

Rich interface extensions

storage expansion

IP65


Features of Intel Celeron N5100 15.6 inch Linux Industrial Panel PC P15J ONERugged

● Full 15.6-inch FHD display, the IP65-rated front panel protects against water and dust ingress.

● Powered by an 11th generation Intel Celeron processor, equipped with Unbuntu operating system

● Excellent environmental adaptability, anti-electromagnetic interference and anti-static capabilities

● Fanless design, using large-area uniform heating fin, running 24/7 without affecting reliability and service life

● Rich interfaces, including multiple USB/LAN/D89/HDMI and other I/O ports, can easily meet various scenario requirements

● Dual-band Wi-Fi, Bluetooth 5.0, and expandable 4G (M.2 interface), multiple network connection modes

● Wide voltage and temperature design, can operate normally even under external voltage fluctuations or in extremely hot or cold conditions

● Standard PPC mounting hook component, easy to install and supports various installation

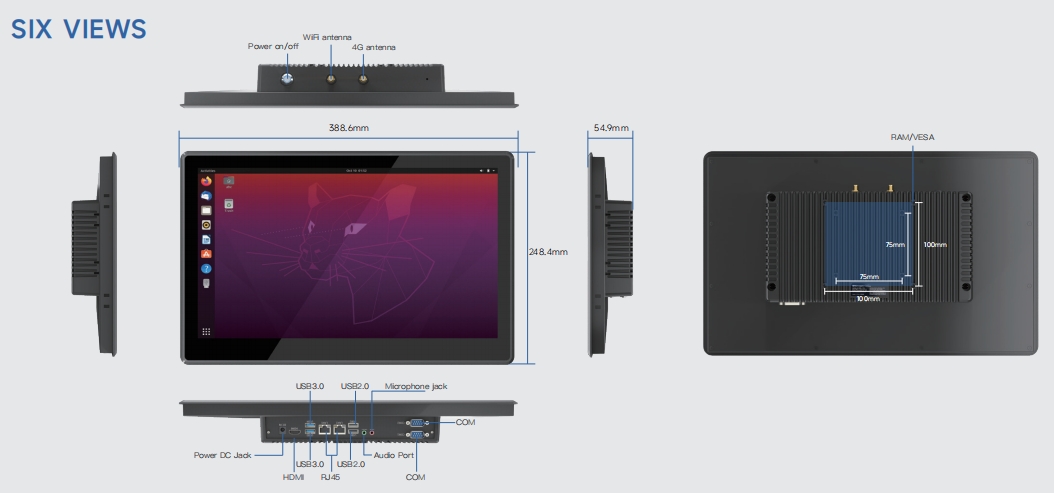

Six Views of Intel Celeron N5100 15.6 inch Linux Industrial Panel PC P15J ONERugged

Specification of Intel Celeron N5100 15.6 inch Linux Industrial Panel PC P15J ONERugged

ONERugged P15J
CPU	Intel®Celeron N5100, up to 2.80GHz
Memory	4GB
USB	2 x USB3.0, 2 x USB2.0
OS support	Ubuntu22.04.4
System Parameter
CPU	Intel® Celeron N5100 CPU, up to 2.80GHz
Chipset	Intel UHD
RAM	Onboard 4GB
Storage	64GB
I/O	USB3.02 USB2.02 Power interface DC 12V Power connector 1 Standard Earphone Jack 1 RJ45 2 DB9 PORT RS232 2 HDMI 2.0a Mini *1
Expansion Slot	M2 x 1
OS	Linux Ubuntu22.04.4
Display
Size	15.6" TFT-LCD 16 : 9
Resolution	1920 x 1080
Brightness	220cd/m 2
Touch Pane	10 point capacitive touch screen
Power
DC	AC100V ~ 240V, 50Hz/60Hz, DC 12V/4A
Product Form
Dimension	388.63 x 248.43 x 54.95 mm
Device Color	black
Weight	2.4Kg
Reliability
IP Code	IP65 of front panel
Operate Temperature	-20℃ to 60℃
Store Temperature	-30℃ to 70℃
Humidity	95%@40℃, Non-Condensing

Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
