RK3568 Quad-core 18.5 inch industrial Panel pc windows P18R

Name: RK3568 Quad-core 18.5 inch industrial Panel pc windows P18R
Brand: Emdoor Information Co., Ltd.

● Powered by a quad-core ARM processor with Android 12 OS;

● Large 18.5-inch immersive display with 10-point capacitive touch;

● Wi-Fi 5, BT 5.0; Supports 4G network connectivity;

● Multiple interfaces options: USB, RS232, RJ45, HDMI, and audio ports;

● Standard PPC hook assembly accessory;

● VESA holes for wall and desktop mounting;

● Wide voltage input: 12V to 24V;

● Operational temperature range: -20°C to 60°C;

● Anti-electromagnetic interference; IP65-rated front panel.

Get A Quote PDF Download

RK3568

Android 12

18.5 inch

250cd/㎡

wifi 5

Running 24/7 without

Rich interface extensions

IP65

Features of RK3568 18.5 inch industrial Panel pc windows P18R

● Powered by a quad-core ARM processor with Android 12 OS;

● Large 18.5-inch immersive display with 10-point capacitive touch;

● Wi-Fi 5, BT 5.0; Supports 4G network connectivity;

● Multiple interfaces options: USB, RS232, RJ45, HDMI, and audio ports;

● Standard PPC hook assembly accessory;

● VESA holes for wall and desktop mounting;

● Wide voltage input: 12V to 24V;

● Operational temperature range: -20°C to 60°C;

● Anti-electromagnetic interference; IP65-rated front panel.

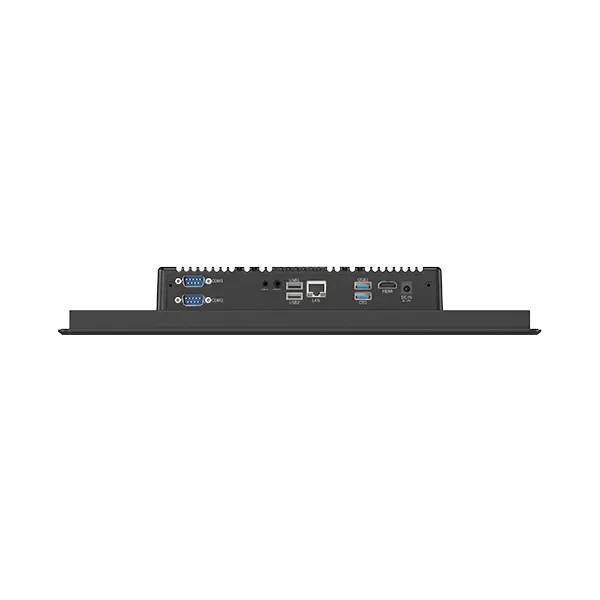

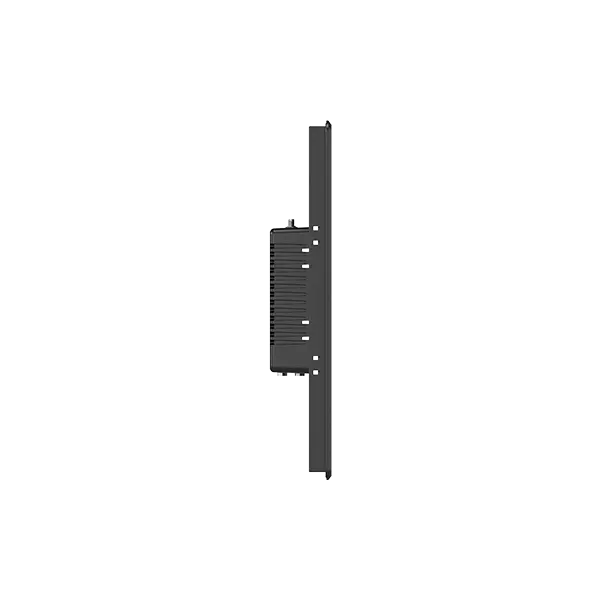

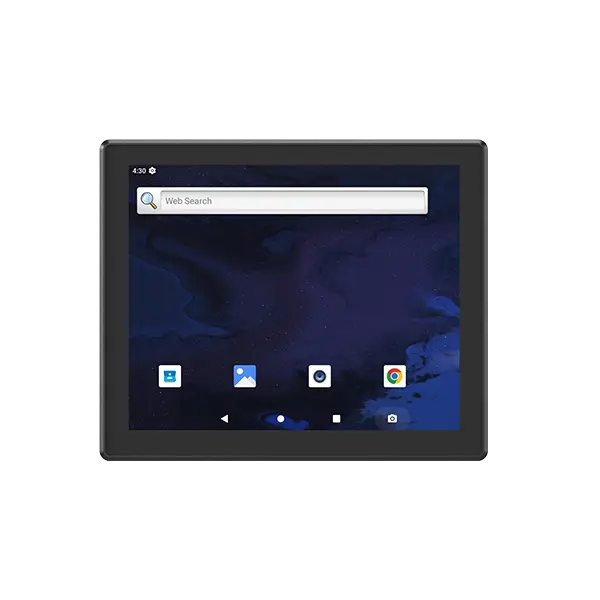

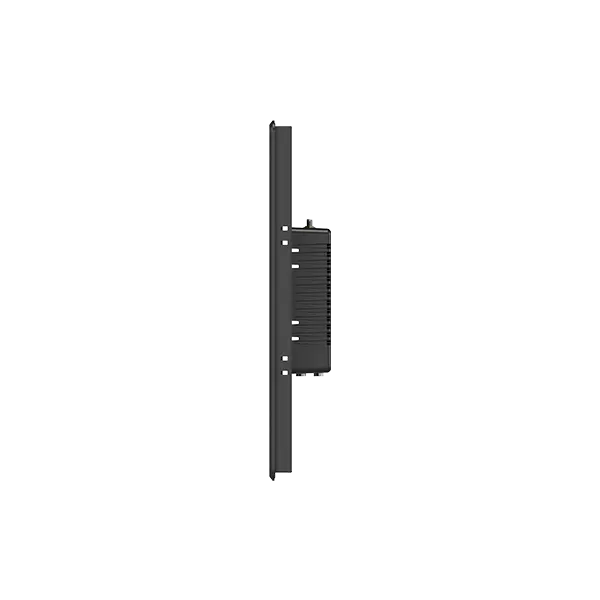

Six Views of RK3568 18.5 inch industrial Panel pc windows P18R

Industrial PC

Specification of RK3568 18.5 inch industrial Panel pc windows P18R

industrial Panel pc
Dimension	45727954 mm
Weight	TBD
Product Color	Black
CPU	RK3568 Quad-core 64-bit
GPU	Mali-G52-2EE
Memory	RAM 4GB onboard ROM 64GB
Operating System	Android 12
Display	Type: LCD Size: 18.5 inch 16:9 Resolution: 1920*1080 Brightness: 250 cd/㎡
Touch Pannel	10 PCAP
WIFI	WIFI 802.11(a/b/g/n/ac/ax ) 2.4G+5.8G , supports WIFI5
Bluetooth	BT5.0
2G/3G/4G	Optional: M. 2 interfaces, USB&PCIE signal compatibility Meg 750 LTE-FDD:B1/3/5/7/8/20 LTE-TDD:B40 WCDMA:B1/5/8 GSM:900/1800
I/O	Standard USB-A USB3.0 1 USB3.0 1 OTG+USB2.0 *2
	Power interface DC IN 12V-24V Power connector *1
	∮3.5mm Standard Earphone Jack *1
	RJ45 *1 (10M/100M/1000M adaptive)
	DB9 PORT RS232 *2
	HDMI *1
Power Adaptor	AC100V to 240V, 50Hz/60Hz output DC 12V/4A

Certification	IP65 Front Panel
Rugged Features	Working temperature: -20 °C to 60 °C
	Storage temperature: -30 °C to 70 °C
	Humidity: 95% Non-Condensing

*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
