•Support for Debian 11/Ubuntu 22.04 system
•2G/3G/4G all network communication, WiFi, Bluetooth and other communication modes
•5000mAh battery, 7.5 hours of machine endurance
•IP65 high protection level, in accordance with MlL-STD-810H
•Support GPS/Beidou more accurate positioning
•Rear 13 million pixel auto focus camera, easy to collect image and video information
•Support 2D barcode scanning for free selection
IP65
GPS
camera
2D
3G/4G
WiFi
Bluetooth
os.png •Support for Debian 11/Ubuntu 22.04 system
•2G/3G/4G all network communication, WiFi, Bluetooth and other communication modes
•5000mAh battery, 7.5 hours of machine endurance
•IP65 high protection level, in accordance with MlL-STD-810H
•Support GPS/Beidou more accurate positioning
•Rear 13 million pixel auto focus camera, easy to collect image and video information
•Support 2D barcode scanning for free selection
| Basic parameters | Performance parameter | |||||||||||||||||
| Dimension | 280.4 x 187 x 26.6mm | CPU | RK3588 | |||||||||||||||
| Weight | Device unit 1014g | OS | Debian 11 、Ubuntu 22.04 | |||||||||||||||
| Device Color | Black | RAM | 8GB | |||||||||||||||
| LCD | 10.1 inch IPS 16:10, 1200x1920, 700nits | ROM | 128GB, Optional SSD, M.2, 2280 specification, SATA protocol, maximum capacity 512GB | |||||||||||||||
| Touch Panel | 10 point G+G capacitive touch screen | |||||||||||||||||
| Battery | ||||||||||||||||||
| Camera | Front 5.0MP Rear 13.0MP | |||||||||||||||||
| I/O | Standard USB 3.0 *1, Type C *1 (Data & Charing) ∮3.5mm Standard earjack *1 Standard USB2.0 *2 SIM card *1 TF card *1，Max: 512GB DC 12V 4A ∮4.0mm jack *1 12PIN Pogo Pin *1 RJ45 network port 1 (10/100M/1000M adaptive) | Capacity | 7.4V/5000mAh | |||||||||||||||
| Type | Li_polyment, removeable battery | |||||||||||||||||
| Endurance | 7.5 hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) | |||||||||||||||||
| Data Collec | tion | |||||||||||||||||
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 12V/4A | NFC | Built-in, 13.56MHz, Support ISO/IEC 14443A protocol Card reading distance: 4cm | |||||||||||||||
| Communication | ||||||||||||||||||
| WIFI | WiFi 802.11 a/b/g/n/ac (2.4G+5G) | |||||||||||||||||
| Bluetooth | BT5.0 Transmission distance: 10m | |||||||||||||||||
| 2G/3G/4G | LTE FDD B1/B3/B5/B7/B8/B20 LTE TDD B40 WCDMA B1/B5/B8 GSM 900/1800 | Reliability | ||||||||||||||||
| Operate Temperature | -20 °C ~ 60 °C | |||||||||||||||||
| GNSS | Support GPS+Beidou | Store Temperature | -30 °C ~ 70 °C | |||||||||||||||
| Humidity | 95% Non-Condensing | |||||||||||||||||
| Rugged Feature | IP65 certified, MIL-STD-810H certified | |||||||||||||||||
| Drop Height | 1.22m | |||||||||||||||||
* Please be aware all technical data, specification and performance figures subject to change without notice.

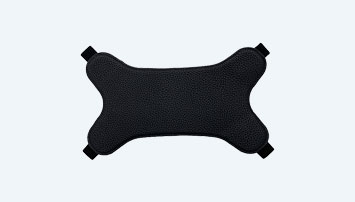

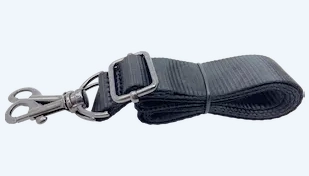

Various modules and accessories can be selected to meet customers' application in various industries.
Various modules and accessories can be selected to meet customers' application in various industries.
