NFC RK3288 1.8GHz CPU
On-board DDR3 2GB RAM
EMMC 8GB Storage
Fanless with low consumption
IP65 of front panel
DC 12V
| Model No：EM-PPC15R Specification | |||||||
| Type | Details | Standard Configuration | Optional configuration | ||||
| Product Form | Type | PPC | NA | ||||

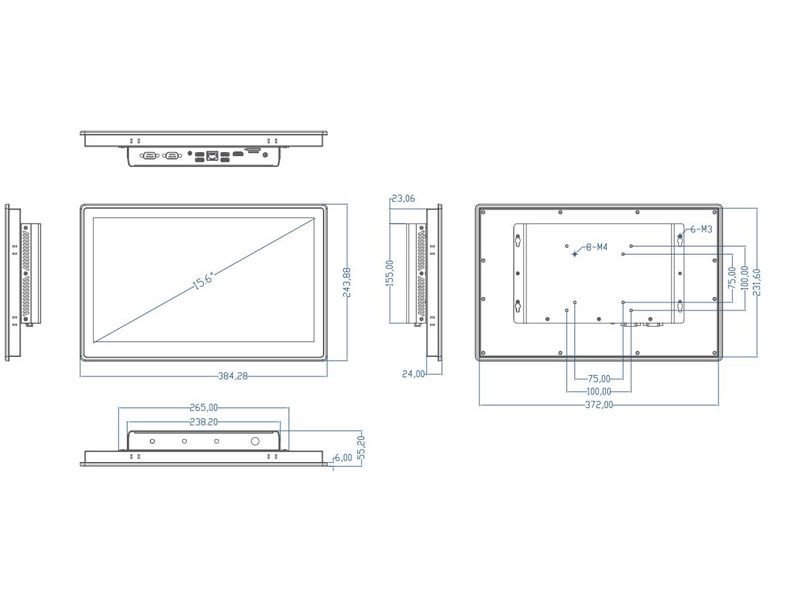

| Dimension | 384.3 x 243.9 x 55.2 mm | NA | |||||
| Weight | Device unit:3.0Kg | NA | |||||
| Device Color | Black（Front and Rear Panel: Black，Decorate Board:Black） | NA | |||||
| LCD | Screen Size | 15.6inch 16:9 | NA | ||||
| Resolution | 1920x1080 | NA | |||||
| Brightness | 300 cd/m2 | ||||||
| TP | Touch Panel | Capacitive touch | |||||
| Speaker | Built-in | 2 x 8Ω 2W Power amplifier output（Optional） | NA | ||||
| System Hardware Configuration | |||||||
| Type | Details | Descriptions | Optional configuration | ||||
| CPU | Type | Rk3288 SoC Cortex-A17 Quad Core@ 1.8GHz | NA | ||||
| Speed | 1.8GHz | NA | |||||
| GPU | Type | Mail T764 | NA | ||||
| RAM | DDR3 | 2GB | NA | ||||
| EMMC/SSD | EMMC/SSD | 8GB | NA | ||||

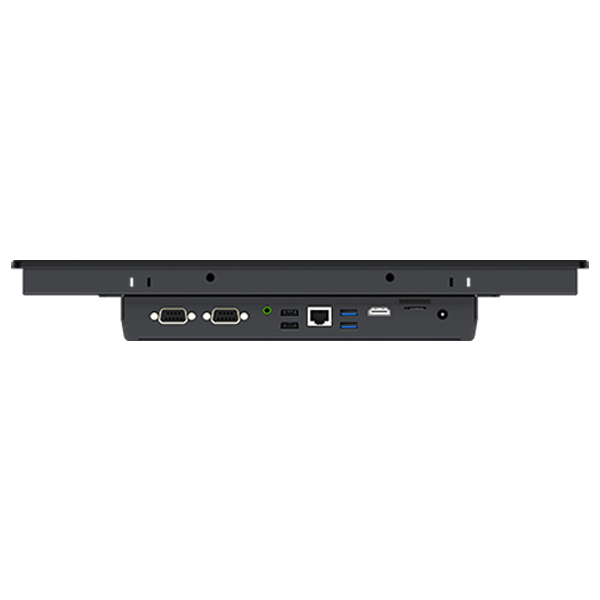

| Interface Configuration | |||||||
| Type | Details | Descriptions | Optional configuration | ||||
| SIM Slot | SIM Slot | 1 x SIM，1 x TF | NA | ||||
| type A usb | USB | 4 x USB2.0 | NA | ||||
| DC Jack | Power | DC 12V Power connector x1 | NA | ||||
| Earphone Jack | Audio Output | ∮3.5mm Standard Earphone Jack x1 | NA | ||||
| Extensive Slot | MiniPCIE | Support WiFi+BT Mini-PCIE x 1 On-board SIM | Optional 3G/4G | ||||
| DB9 PORT | Serial port | 2 x DB-9 COM1 & COM2，RS-232 | NA | ||||
| Display | Display | HDMI | NA | ||||
| RJ45 PORT | Internet port | 1x 10/100/1000 Mbps | NA | ||||
| Standard Accessories | |||||||
| Type | Details | Descriptions | Optional configuration | ||||
| Power Adaptor | Standard | 12V DC | NA | ||||
| NA | |||||||
| Software Configuration | |||||||
| Type | Details | Descriptions | Optional configuration | ||||
| Operation System | OS version | Android 7.0 above | NA | ||||
| NA | |||||||
| NA | |||||||
| Product Certificate | |||||||
| Type | Details | Descriptions | Optional configuration | ||||
| Certificate System | IP65 | IP65 Report：Water Resistance：IP-X5，Dust Resistance：P-6X a.Inner Nozzle Diameter：6.3mm； b. Water Speed：12.5±0.625L/min； c. Water Pressure：Adjust according to water volumn； d.Central part of water volumn ：A round with a diameter of about 40mm at the distance from the nozzle 2.5m. e.Spray time in surface of panele: About 1 min/Square meter；f.Test time：at least 3min； g.Distance between nozzle and panel surface：2.5～3m。 After test，there is no water leakage in sample. | NA | ||||
| CE-NB | NA | NA | |||||
| MIL-STD-810G | NA | NA | |||||
| CCC | NA | NA | |||||
| Reliability | |||||||
| Type | Details | Descriptions | Optional configuration | ||||
| Product Reliability | Drop Height | NA | |||||
| Operate Temperature | ‘-10℃ to 50℃ | ||||||
| Store Temperature | ’-20℃ to 60℃ | ||||||
| Humidity | 10~90%@40℃，Non-Condensing | ||||||
Product specifications, pictures and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
Various modules and accessories can be selected to meet customers' application in various industries.
